Toro EVOLUTION Series User Manual

4

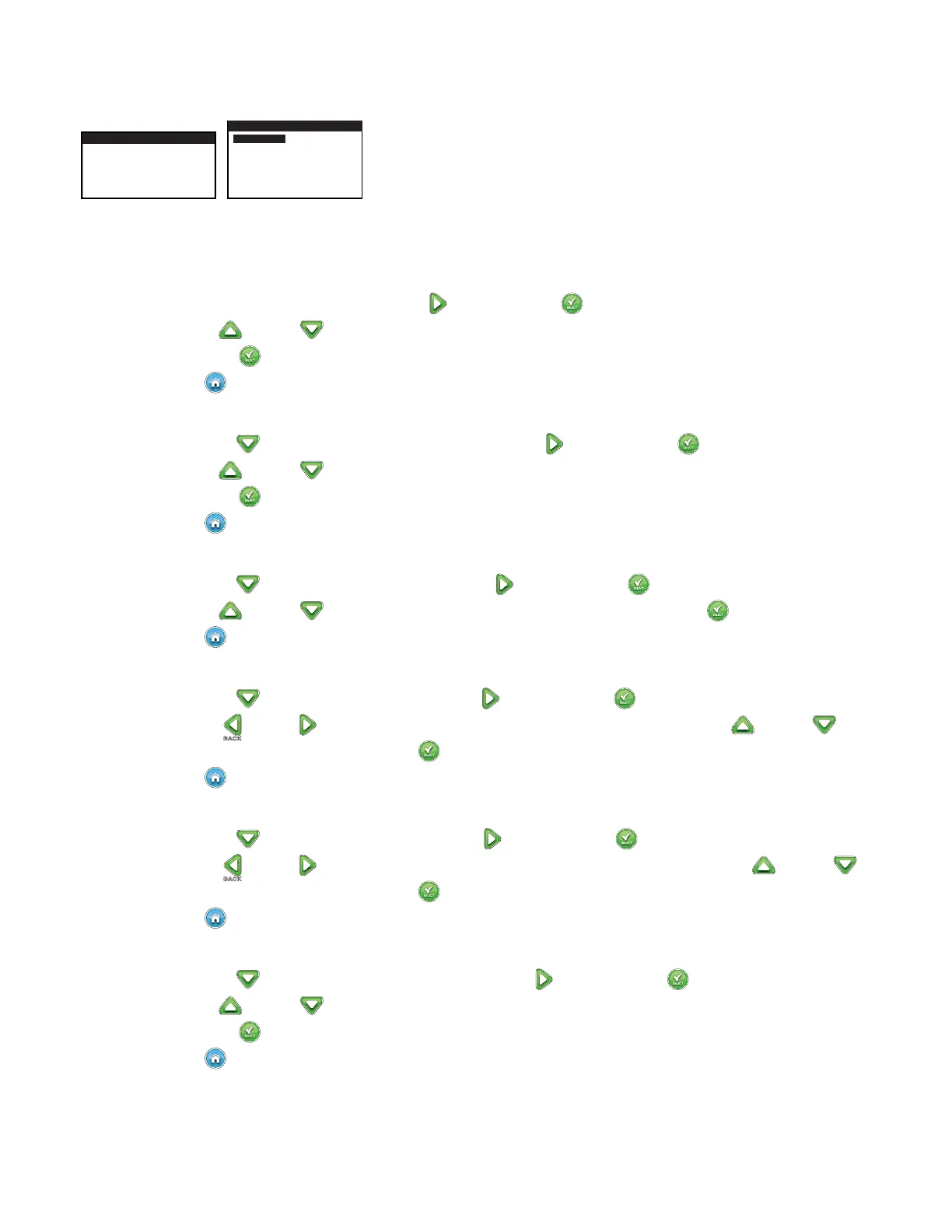

Setup Screen
WELCOME
INITIALIZING
PLEASE WAIT . . .
SETUP
LANGUAGE ENGLISH
DATE FORMAT MM/DD/YY
CLOCK 12 HOUR
TIME 12:01AM
DATE 01/01/13
BEGIN WEEK SUNDAY
Upon power up, the initialization screen will display briey. On initial power up, the EVOLUTION
TM
will display the SETUP screen. is
SETUP screen is only accessed during initial power up or after a factory reset is performed.
Set Language
Select the preferred display language. Select from English, Spanish, French, German, Italian or Portuguese.
Step 1 – While LANGUAGE is selected, press the Right arrow or SELECT .
Step 2 – Use the Up
or Down arrows to select from English (default), Spanish, French, German, Italian or Portuguese.
Press SELECT
.
Step 3 – Press the
HOME button to return to the main screen.
Set Date Format
Step 1 – Use the Down
arrow to select DATE FORMAT. Press the Right arrow or SELECT .
Step 2 – Use the Up
or Down arrows to select MM/DD/YY (Month/Day/Year) (default) or DD/MM/YY (Day/Month/Year).
Press SELECT
.
Step 3 – Press the
HOME button to return to the main screen.
Set Clock Format
Step 1 – Use the Down
arrow to select CLOCK. Press the Right arrow or SELECT .
Step 2 – Use the Up
or Down arrows to select 12 HOUR (default) or 24 HOUR. Press SELECT .
Step 3 – Press the
HOME button to return to the main screen.
Set the Current Time
Step 1 – Use the Down
arrow to select TIME. Press the Right arrow or SELECT .
Step 2 – Use the Left
or Right arrows to navigate between the Hour and Minute positions. Use the Up or Down
arrows to set the correct values. Press SELECT when nished.
Step 3 – Press the
HOME button to return to the main screen.
Set the Current Date
Step 1 – Use the Down
arrow to select DATE. Press the Right arrow or SELECT .
Step 2 – Use the Left
or Right arrows to navigate between the Month, Day and Year positions. Use the Up or Down
arrows to set the correct values. Press SELECT when nished.
Step 3 – Press the
HOME button to return to the main screen.
Set the Beginning of the Week
Step 1 – Use the Down
arrow to select BEGIN WEEK. Press the Right arrow or SELECT .
Step 2 – Use the Up
or Down arrows to select SUNDAY (default) or MONDAY as the beginning of the weekly schedule.
Press SELECT
when nished.
Step 3 – Press the
HOME button to return to the main screen.

Toro EVOLUTION Series Specifications

General

Weather Sensor Compatibility	Yes
Output Voltage	24 VAC
Display	LCD
Wi-Fi Connectivity	Yes (with optional Wi-Fi module)
Mounting	Indoor/Outdoor
Maximum Load Current	0.5 amps per station
Operating Temperature	-40°C to 60°C
Enclosure Rating	NEMA 3R
Weight	Varies by model
Zones	4 to 16 (in modules of 4)
