ProPass 200Page 6 -- 16Hydraulic Power Pack

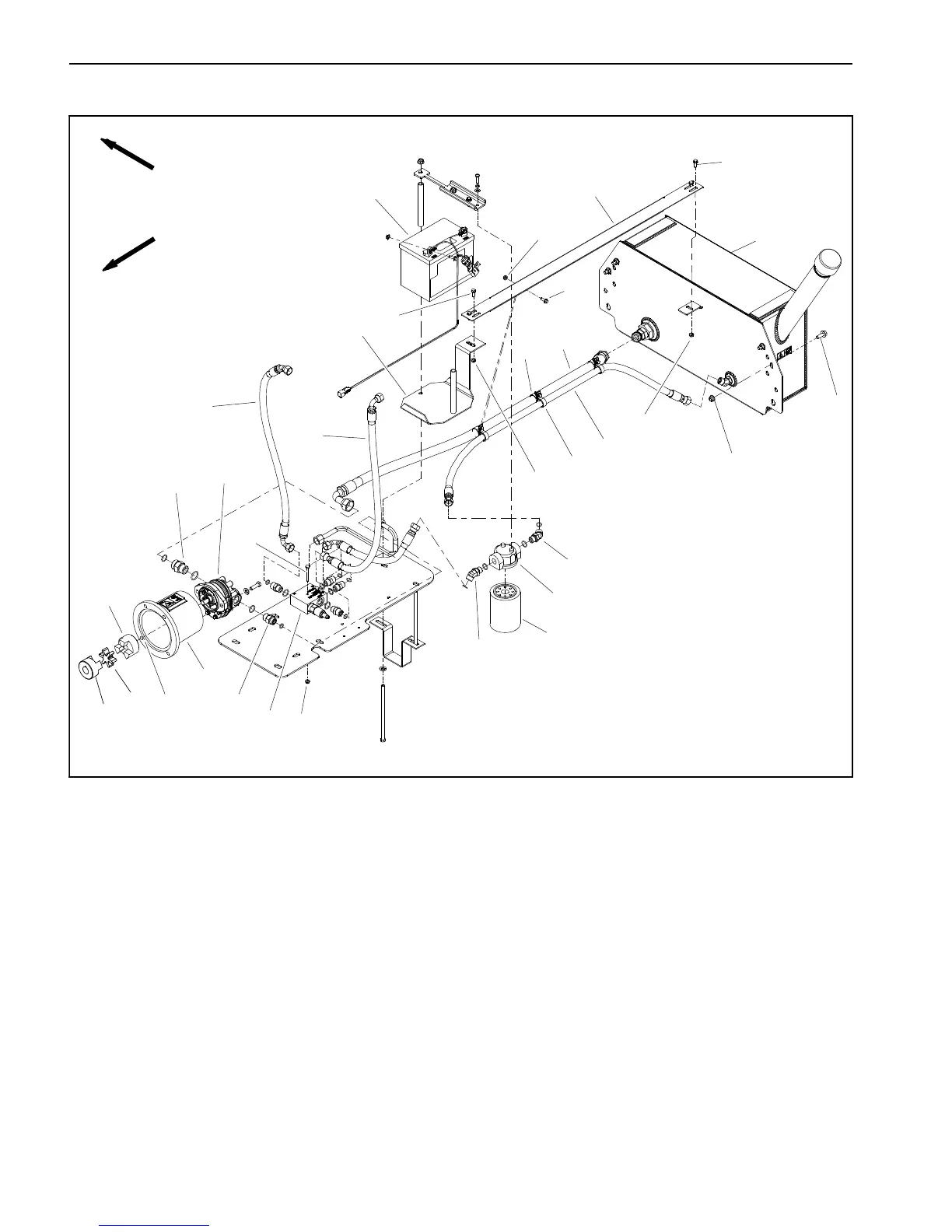

Power Pack Gear Pump
Figure 9
1. Hydraulic relief valve manifold
2. Flange nut (9 used)
3. Flange head screw (4 used)
4. Hydraulic tank assembly
5. Hose bracket
6. R--clamp (3 used)
7. R--clamp (3 used)
8. 45
o
hydraulic fitting (2 used)
9. Hydraulic hose
10. Filter head
11. Hydraulic hose
12. Flange nut (4 used)
13. Oil filter
14. Cap screw (2 used)
15. Straight hydraulic fitting
16. Hydraulic gear pump
17. Straight hydraulic fitting
18. Battery tray
19. Battery
20. Cap screw (7 used)
21. Flange adapter
22. Key
23. Coupling jaw (gear pump)
24. Hydraulic hose
25. Hydraulic hose
26. Spider coupling
27. Coupling jaw (engine)
9
11
4
19
5
18
6
7
2
16
8
10
13
20
15
1
14
17
3
20
20
12
8
2
2
2
21
22
23
24
25
26
27
