ProPass 200Page 3 -- 44Hydraulic System
Conveyor Motor

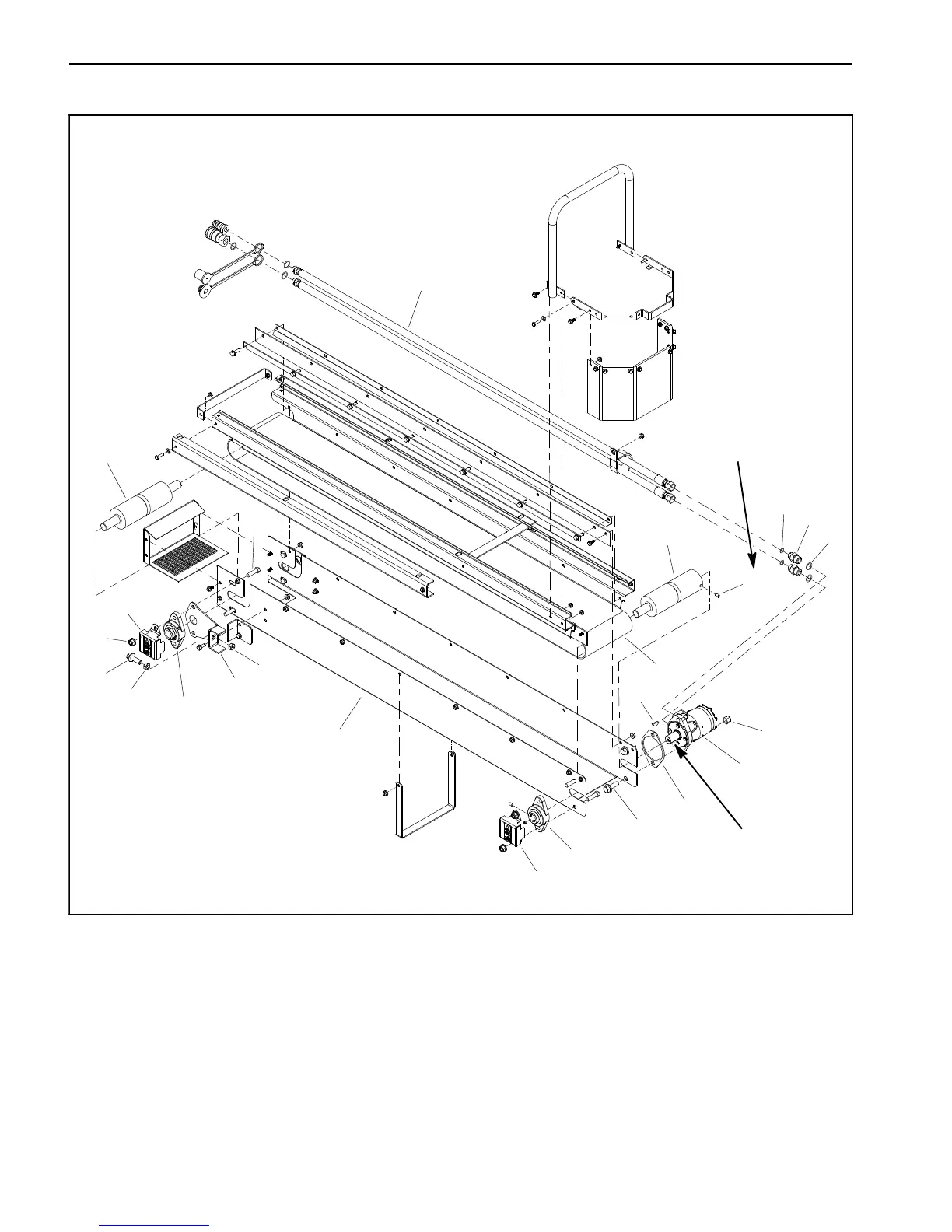

Figure 43
1. Cap screw (2 used per bearing)
2. Flange nut (2 used per bearing)
3. Adjuster plate (2 used)
4. Flange head screw (2 used)
5. Jam nut (4 used)
6. Flange bearing (3 used)
7. Bearing guard (3 used)
8. Idler roller
9. Conveyor cover
10. Conveyor belt
11. Hydraulichose(2used)
12. O--ring
13. Hydraulic straight fitting (2 used)
14. O--ring
15. Drive roller
16. Set screw
17. Conveyor motor
18. Lock nut (2 used)
19. Flange nut (2 used)
20. Woodruff key
21. Motor spacer plate
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
6
5
7
Loctite #242
Antiseize
Lubricant
