Toro ProPass 200 Service Manual

ProPass 200Page 3 -- 38Hydraulic System

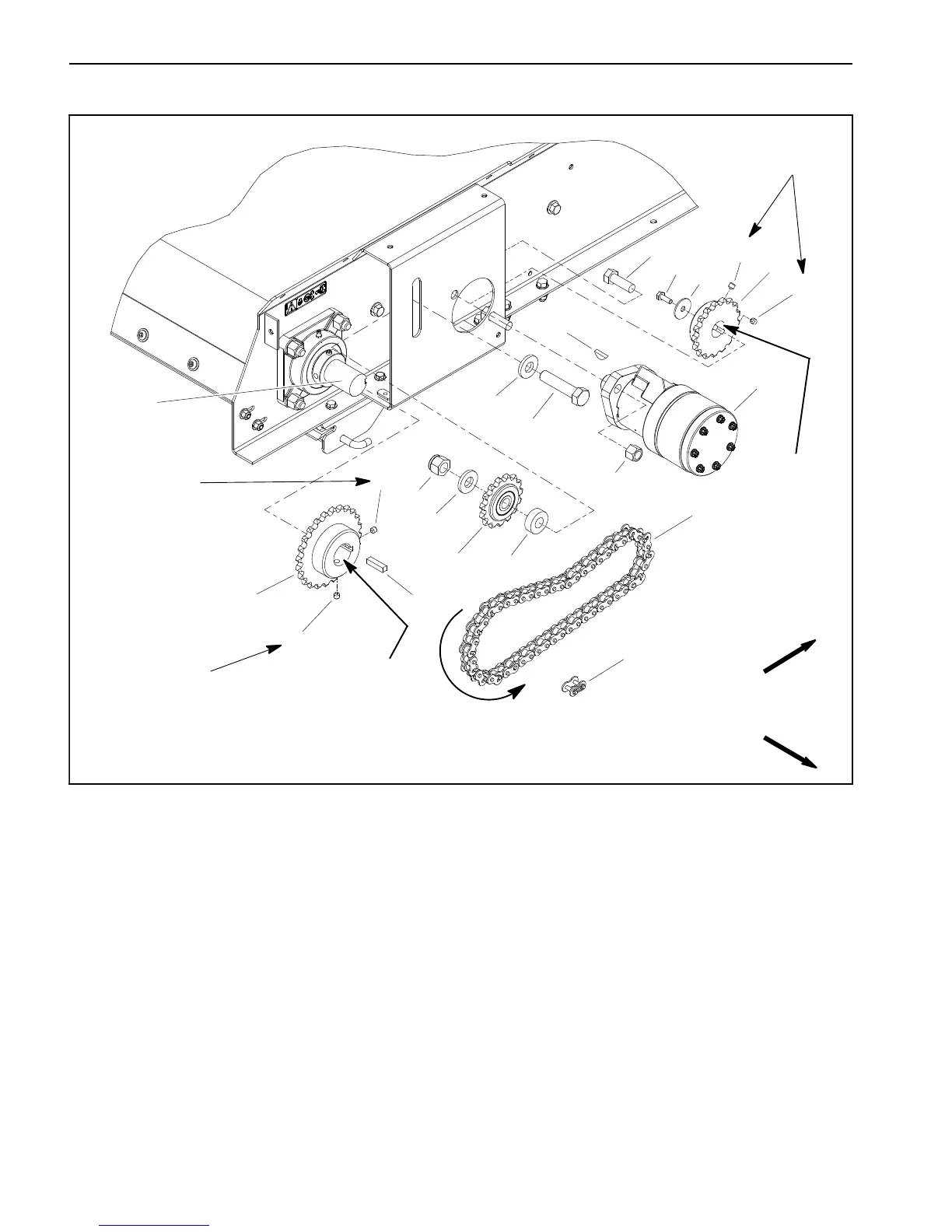

Floor Motor
Figure 39
1. Drive chain
2. Hydraulic floor motor
3. Sprocket
4. Sprocket
5. Idler sprocket
6. Cap screw
7. Flat washer (2 used)
8. Lock nut
9. Cap screw (2 used)
10. Lock nut (2 used)
11. Cap screw
12. Flat washer
13. Square key
14. Spacer
15. Set screw (2 used per sprocket)
16. Master link
17. Woodruff key
18. Drive roller shaft
15
7
14
11
9
6
12
10
8
1
13
2
3
4
5
7
15
15
15
16
17
18
FRONT
RIGHT
Antiseize
Lubricant
Loctite #242
Loctite #242
Loctite #242
Antiseize
Lubricant
Direction
Of Rotation
Removal (Fig. 39)
1. Position machine on a level surface. If ProPass is at-
tached to tow vehicle, apply tow vehicle parking brake,
stop engine and remove key from the ignition switch.
Chock wheels to prevent ProPass machine from mov-
ing.
2. Remove guards from frame to allow access to floor
motor (see Bed Guards in the Service and Repairs sec-
tion of Chapter 5 -- Chassis).
3. Loosen cap screw and lock nut that secure idler
sprocket to frame. Move idler sprocket to remove ten-
sion from drive chain.
