ProPass 200Page 5 -- 14Chassis
Idler Roller Take Up Bearings

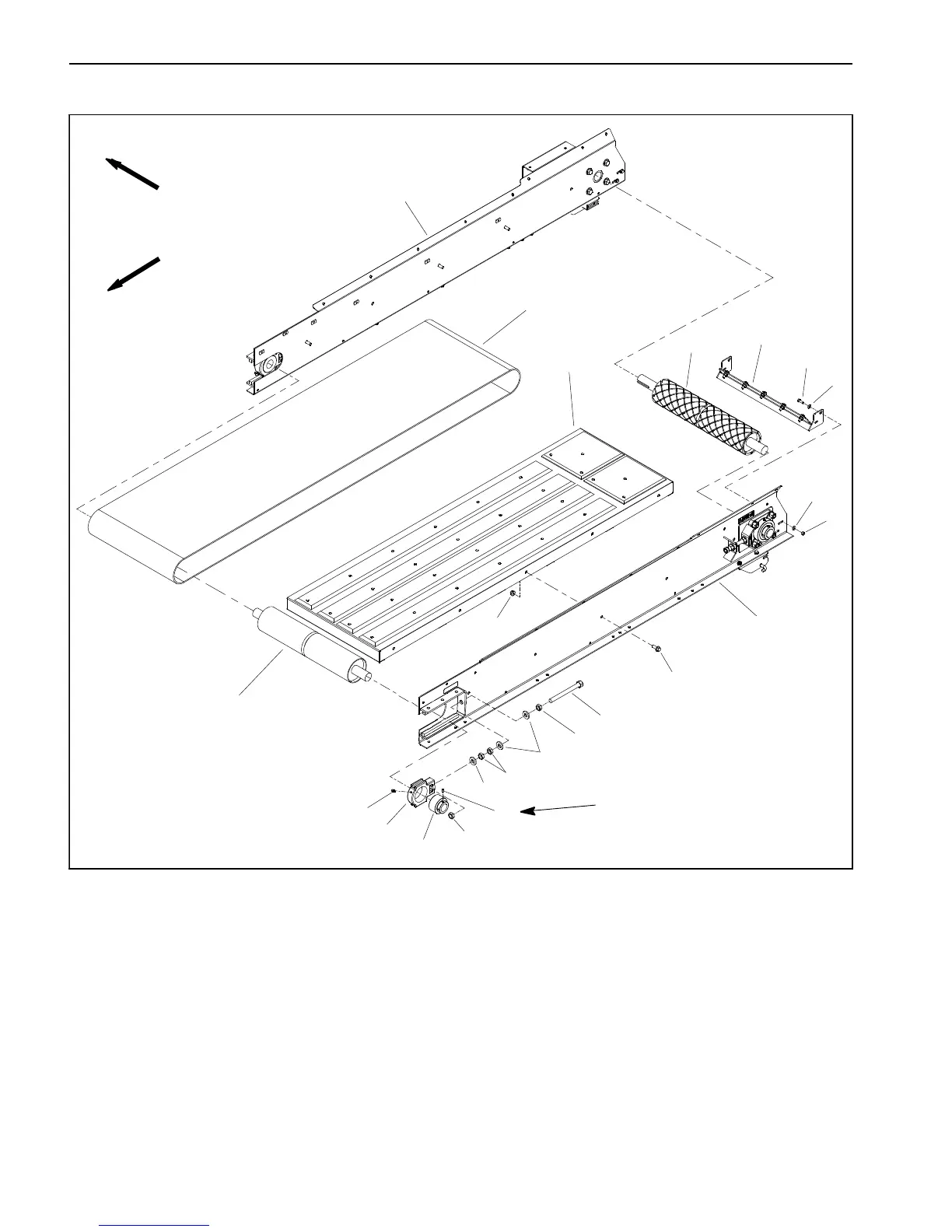

Figure 13
1. LH conveyor frame ass embly
2. Conveyor bed assembly
3. RH conveyor frame assembly
4. Floor conveyor belt
5. Idler roller
6. Drive roller
7. Scraper assembly
8. Cap screw (4 used)
9. Flat washer (8 used)
10. Lock nut (4 used)
11. Flange head screw (10 used)
12. Flange nut (10 used)
13. Tensioner rod
14. Jam nut
15. Flat washer
16. Take up bearing
17. Locking collar
18. Set screw
19. Grease fitting
2
6
3
9
5
1
4
7
8
10
11
12
9
FRONT
RIGHT
13
14
15
16
17
18
19
14
15
14
Loctite #242
To remove and replace the idler roller take up bearings,
removal of the left side conveyor frame and the floor
conveyor belt is necessary. Once these items are re-
moved, access to the left side take up bearing is pos-
sible. The idler roller needs to be removed from the right
side take up bearing before the right side bearing can be
removed from the frame.
