ProPass 200Page 3 -- 12Hydraulic System

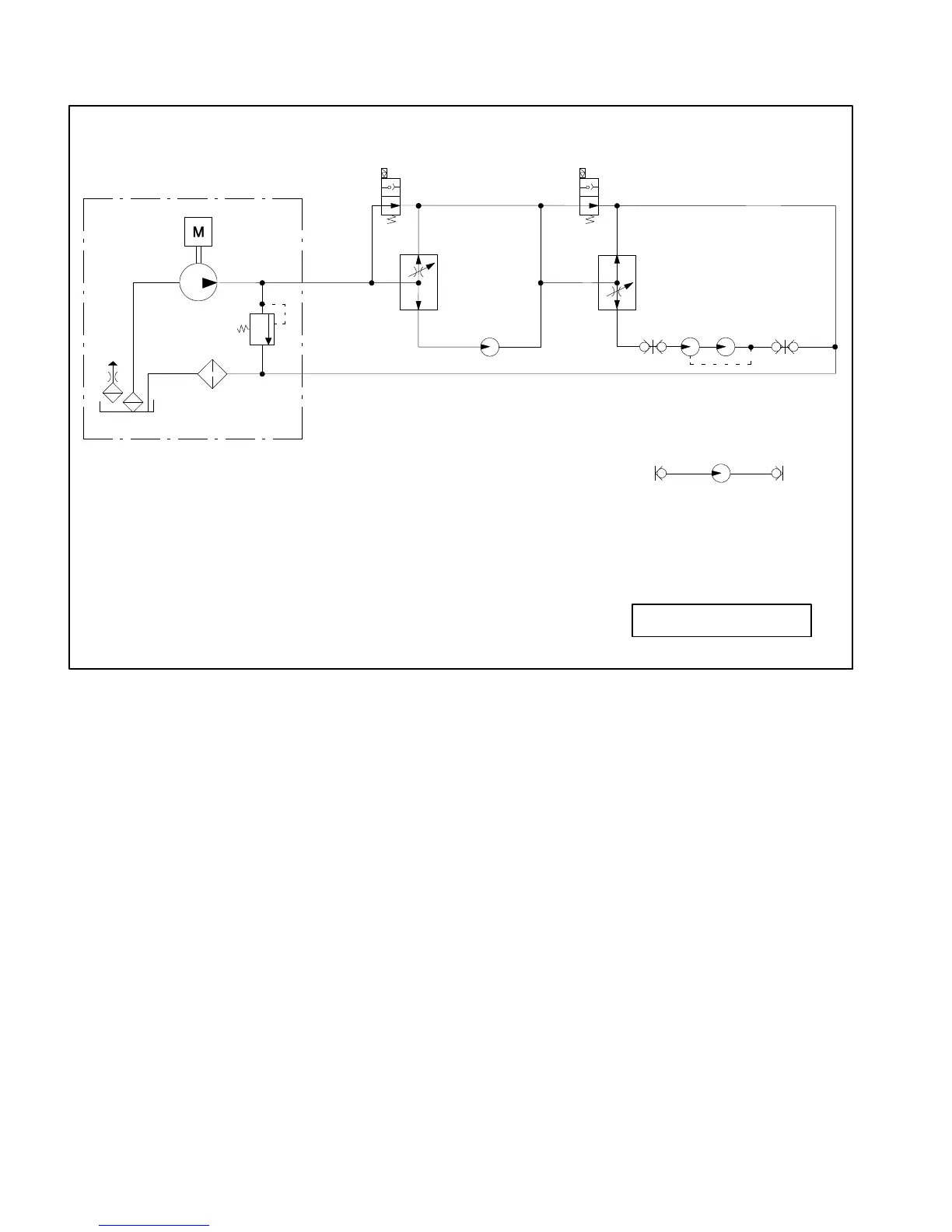

Hydraulic Schematics
Hydraulic Schematic
ProPass 200
All solenoids are shown as
de--energized
Standard Hydraulic Controls
FLOOR
MOTOR
HYDRAULIC
SPINNER
MOTORS
POWER PACK
IN
EX CF
IN
EXCF
FLOOR
CONTROL
VALVE
OPTION
CONTROL
VALVE
FLOOR
SOLENOID
VALVE
OPTION
SOLENOID
VALVE
CONVEYOR
MOTOR
NOTE: The hydraulic schematic shown above includes
the h ydraulic power pack as the hydraulic supply
source. If your ProPass uses hydraulic supply from the
tow vehicle, the vehicle includes the hydraulic pump, re-
lief valve and hydraulic reservoir t hat are used for the
ProPass.
NOTE: The rear option is either the twin spinner (two
motors) or the cross conveyor (one motor).
NOTE: The hydraulic hose kit used when a ProPass re-
ceives its hydraulic supply from a tow vehicle includes
a check valve in the return hose assembly (see Hydraul-
ic Hose Kit in the General Information section of this
chapter).
