ProPass 200 Page 3 -- 13 Hydraulic System

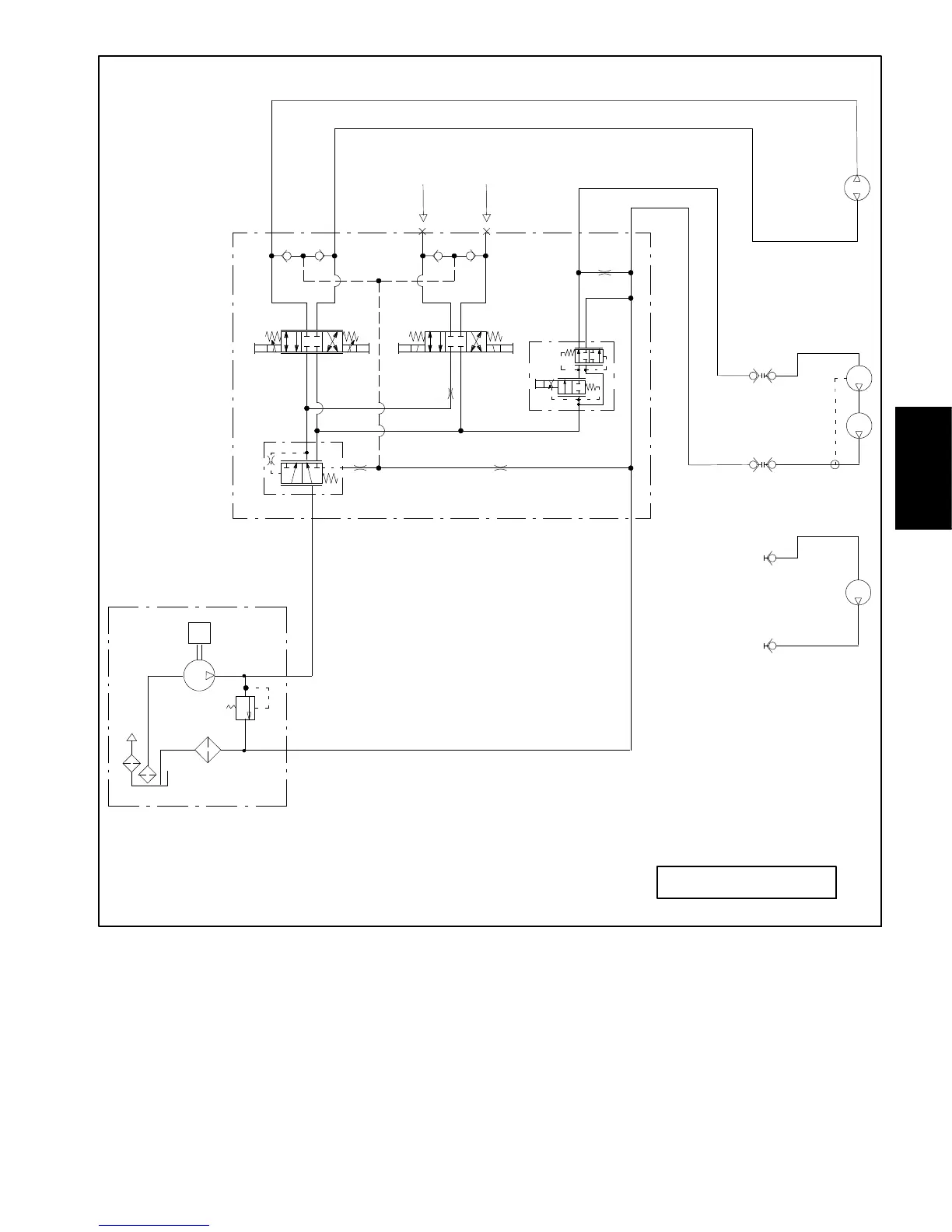

Hydraulic Schematic
ProPass 200
All solenoids are shown as
de--energized
Electronic Hydraulic Controls
FLOOR
MOTOR
HYDRAULIC
SPINNER
MOTORS
CONTROL
M
MANIFOLD
POWER PACK
FA FB LA LB O T1
CV1 CV2 CV3 CV4
SP1
ORF1
EC1
T
P
ORF2
ORF3
ORF4
(0.040)
(0.020)
(0.068)
(0.020)
SV1
PV1
S2 S1 S2 S1
PLUGPLUG
CONVEYOR
MOTOR
NOTE: The hydraulic schematic shown above includes
the hydraulic power pack as the hydraulic supply
source. If your ProPass uses hydraulic supply from the
tow vehicle, the vehicle includes the hydraulic pump, re-
lief valve and hydraulic reservoir t hat are used for the
ProPass.
NOTE: The rear option is either the twin spinner (two
motors) or the cross conveyor (one motor).
NOTE: The hydraulic hose kit used when a ProPass re-
ceives its hydraulic supply from a tow vehicle includes
acheckvalveinthereturnhoseassembly(seeHydraul-
ic Hose Kit in the General Information section of this
chapter).
Hydraulic
System
