ProPass 200 Page 3 -- 31 Hydraulic System
Solenoid Valve Assembly (Machines with Standard Hydraulic Controls)
Two (2) identical solenoid valve assemblies are used on
machines with standard hydraulic controls. When ener-
gized, these solenoid valves allow hydraulic flow to en-
gage the floor and rear option (twin spinner or conveyor)
motors.
NOTE: See Hydraulic Control (Machines with Standard
Hydraulic Controls) in this section for information on re-
moving the solenoid valve assembly from the machine.
CAUTION
Before continuing further, read and become fa-
miliar with General Precautions for Removing
and Installing Hydraulic System Components in
this section.
For cartridge valve service procedures, see Hydraulic
Control Manifold (Machines with Wireless Control Mod-
els) in this section. Refer to Figure32forcartridgevalve
and solenoid coil nut installation torque.
NOTE: See Hydraulic Solenoid Valve Coils in Chapter
4 -- Electrical System for information on testing the
solenoid coils.

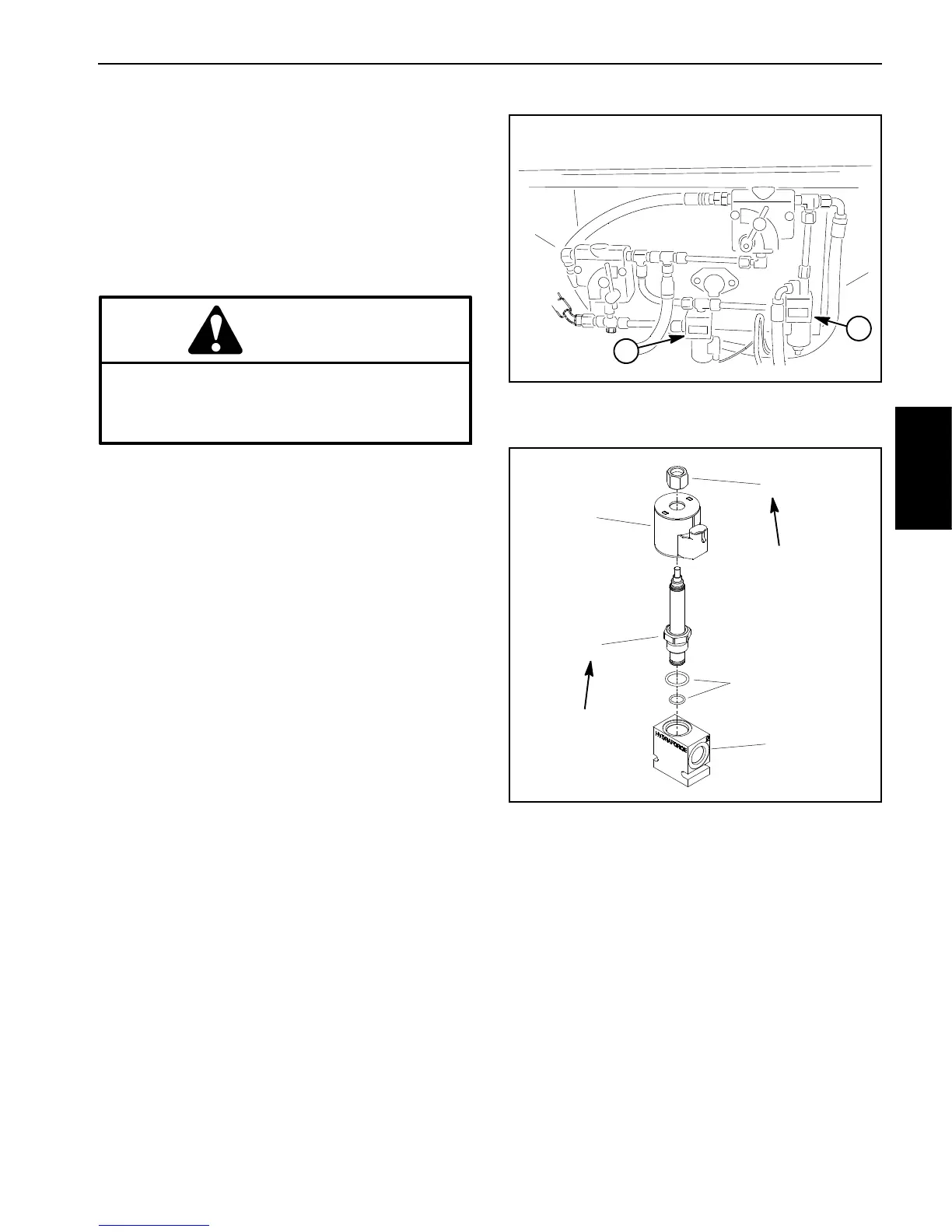

Figure 31
1. Floor solenoid valve 2. Option solenoid valve
2
1
Figure 32
1. Nut
2. Solenoid coil
3. Cartridge valve
4. Seal kit
5. Manifold
2
3
1
5
4
25 ft--lb
(34 N--m)
60 in--lb
(6.7 N--m)
Hydraulic
System
