Toro ProPass 200 Service Manual

ProPass 200Page 3 -- 42Hydraulic System

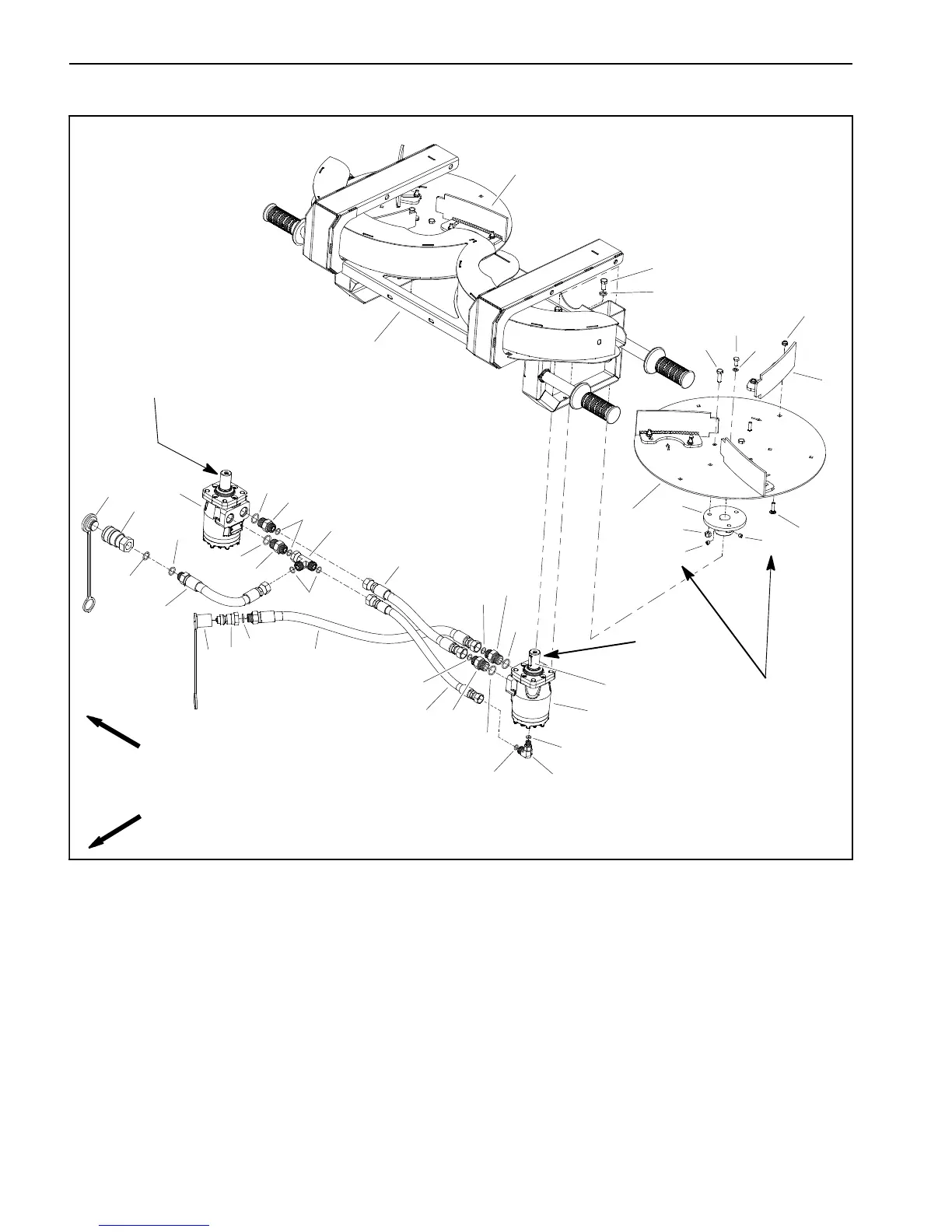

Twin Spinner Motors
Figure 42
1. Quick disconnect (male)
2. Quick disconnect (female)
3. Hydraulic hose
4. Hydraulic tee fitting
5. Straight hydraulic fitting (4 used)
6. Hydraulic hose
7. Hydraulic hose
8. Hydraulic hose
9. O--ring
10. 90
o
hydraulic fitting
11. Plug
12. Cap
13. O--ring
14. O--ring
15. O--ring
16. O--ring
17. Spinner motor (2 used)
18. Woodruff key (1 used per motor)
19. Disconnect seal kit
20. Lock washer (1 used per motor)
21. Cap screw (1 used per motor)
22. Cap screw (4 used per motor)
23. Lock washer (4 used per motor)
24. Cap screw (3 used per hub)
25. Hub (2 used)
26. Lock nut (3 used per hub)
27. Set screw (2 used per hub)
28. Spinner disk (2 used)
29. Carriage bolt (2 used per paddle)
30. Left curved paddle (3 used)
31. Flange nut (2 used per paddle)
32. Right curved paddle (3 used)
33. Spinner frame
8
6
3
14
13
9
13
9
16
15
1
10
12
5
5
13
9
13
9
4
5
5
7
19
2
11
14
17
17
FRONT
RIGHT
18
20
33
21
22
23
24
25
30
26
29
31
27
27
28
32
Loctite #242
Antiseize
Lubricant
Antiseize
Lubricant
