ProPass 200Page 3 -- 46Hydraulic System

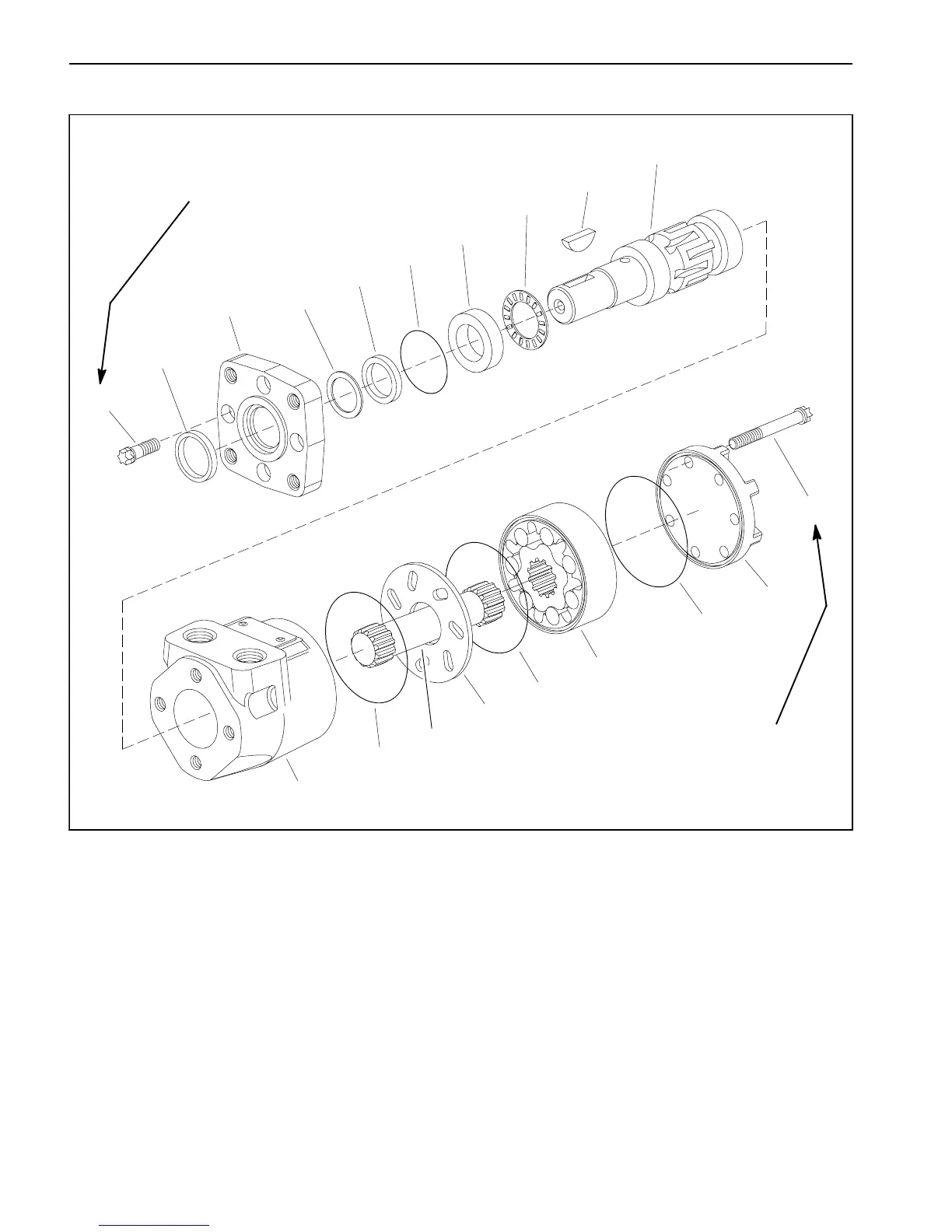

Rear Option Motor Service
1. Cap screw (7 used)
2. End cap
3. Seal (3 used)
4. Geroler assembly
5. Spacer plate
6. Drive
7. Housing
8. Output shaft
9. Woodruff key
10. Thrust bearing
11. Bearing race
12. Seal
13. Pressure seal
14. Backup ring
15. Mounting flange
16. Exclusion seal
17. Cap screw (4 used)
Figure 44
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
4
3
3
250 in--lb
(28 N--m)
Loctite #277
235 to 250 in--lb
(27 to 28 N--m)
The hydraulic motor used for the ProPass rear option
(twin spinner or conveyor) is the same basic motor re-
gardless of which option exists. The left side spinner mo-
tor has a hydraulic case drain hose attached to a 90
o
fitting installed in the end cap. The right side spinner mo-
tor and conveyor motor do not use a case drain hose so
the end cap includes a plug.
NOTE: For service of a twin spinner or conveyor motor,
see the Eaton (Char--Lynn) R--Series General Purpose
Geroler Motor Repair Information at the end of this
chapter.
