ProPass 200Page 5 -- 6Chassis
Floor Motor Drive

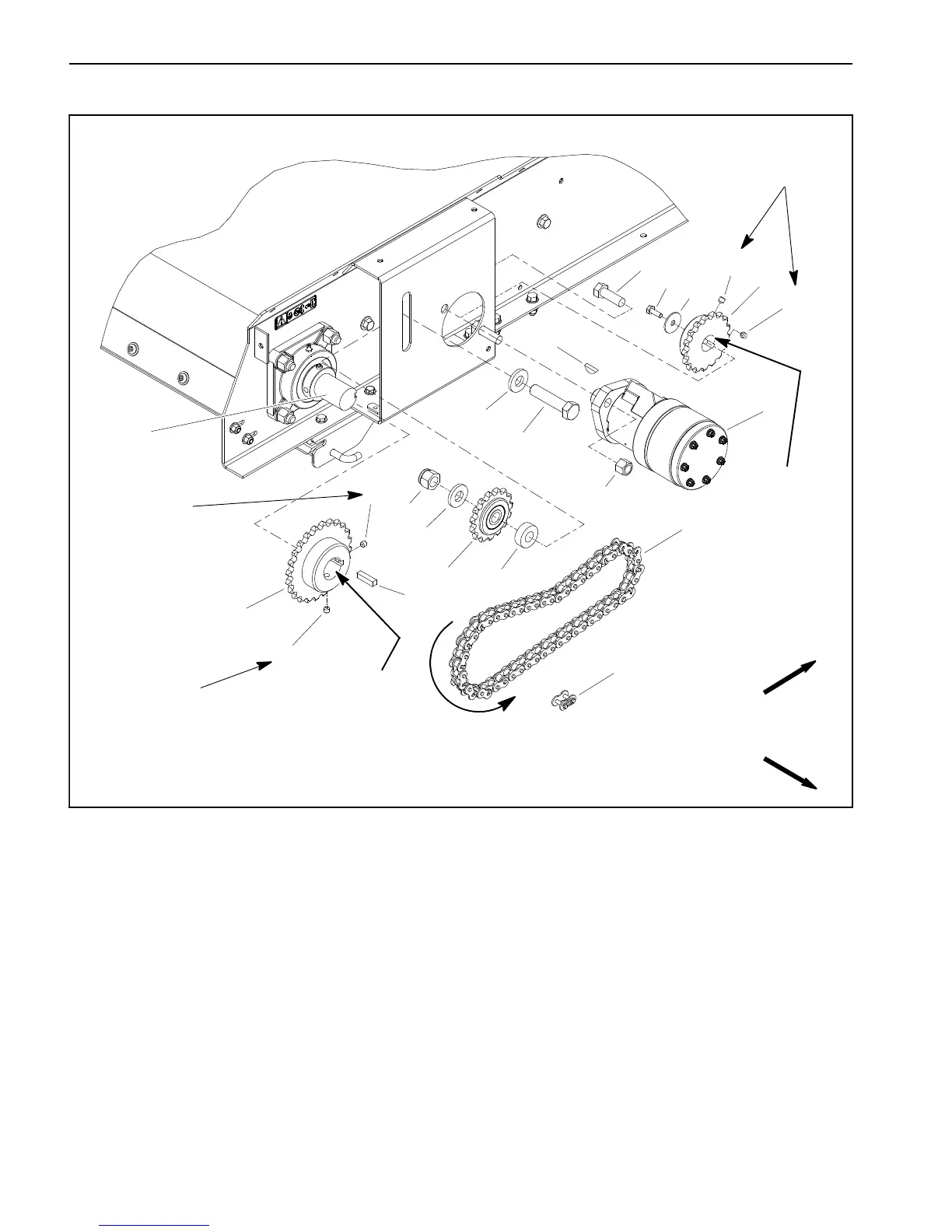

Figure 3
1. Drive chain
2. Hydraulic floor motor
3. Sprocket
4. Sprocket
5. Idler sprocket
6. Cap screw
7. Flat washer (2 used)
8. Lock nut
9. Cap screw (2 used)
10. Lock nut (2 used)
11. Cap screw
12. Flat washer
13. Square key
14. Spacer
15. Set screw (2 used per sprocket)
16. Master link
17. Woodruff key
18. Drive roller shaft
15
7
14
11
9
6
12
10
8
1
13
2
3
4
5
7
15
15
15
16
17
18
FRONT
RIGHT
Direction
Of Rotation
Loctite #242
Antiseize
Lubricant
Loctite #242
Loctite #242
Antiseize
Lubricant
