ProPass 200Page 5 -- 12Chassis
Idler and Drive Rollers

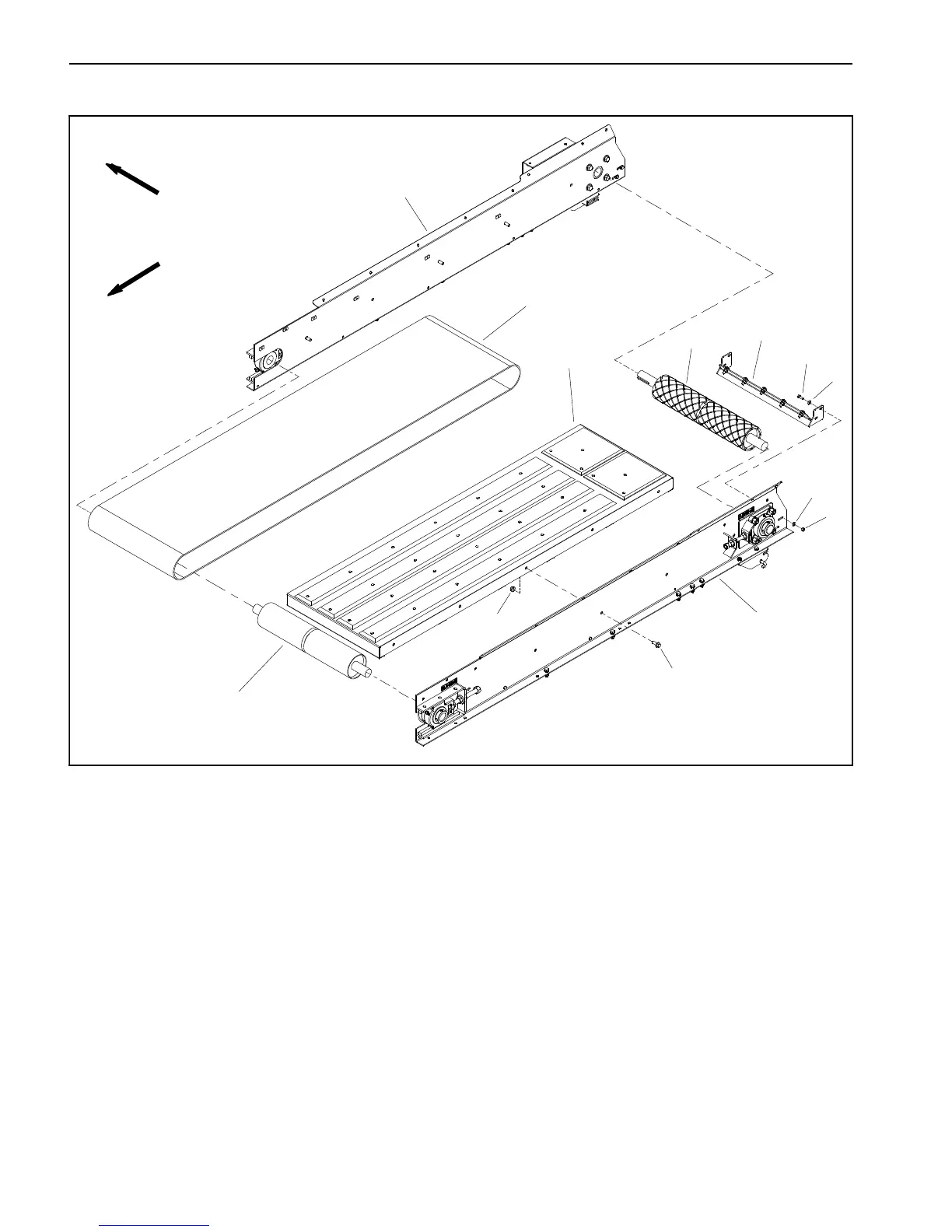

Figure 12
1. LH conveyor frame ass embly
2. Conveyor bed assembly
3. RH conveyor frame assembly
4. Floor conveyor belt
5. Idler roller
6. Drive roller
7. Scraper assembly
8. Cap screw (4 used)
9. Flat washer (8 used)
10. Lock nut (4 used)
11. Flange head screw (10 used)
12. Flange nut (10 used)
2
6
3
9
5
1
4
7
8
10
11
12
9
FRONT
RIGHT
To remove and replace the idler and drive rollers, remov-
al of the left side conveyor frame and the floor conveyor
belt is necessary. Once these items are removed, either
roller can be removed from the bearing in the right side
conveyor frame.
