Toro ProPass 200 Service Manual

ProPass 200Page 5 -- 16Chassis

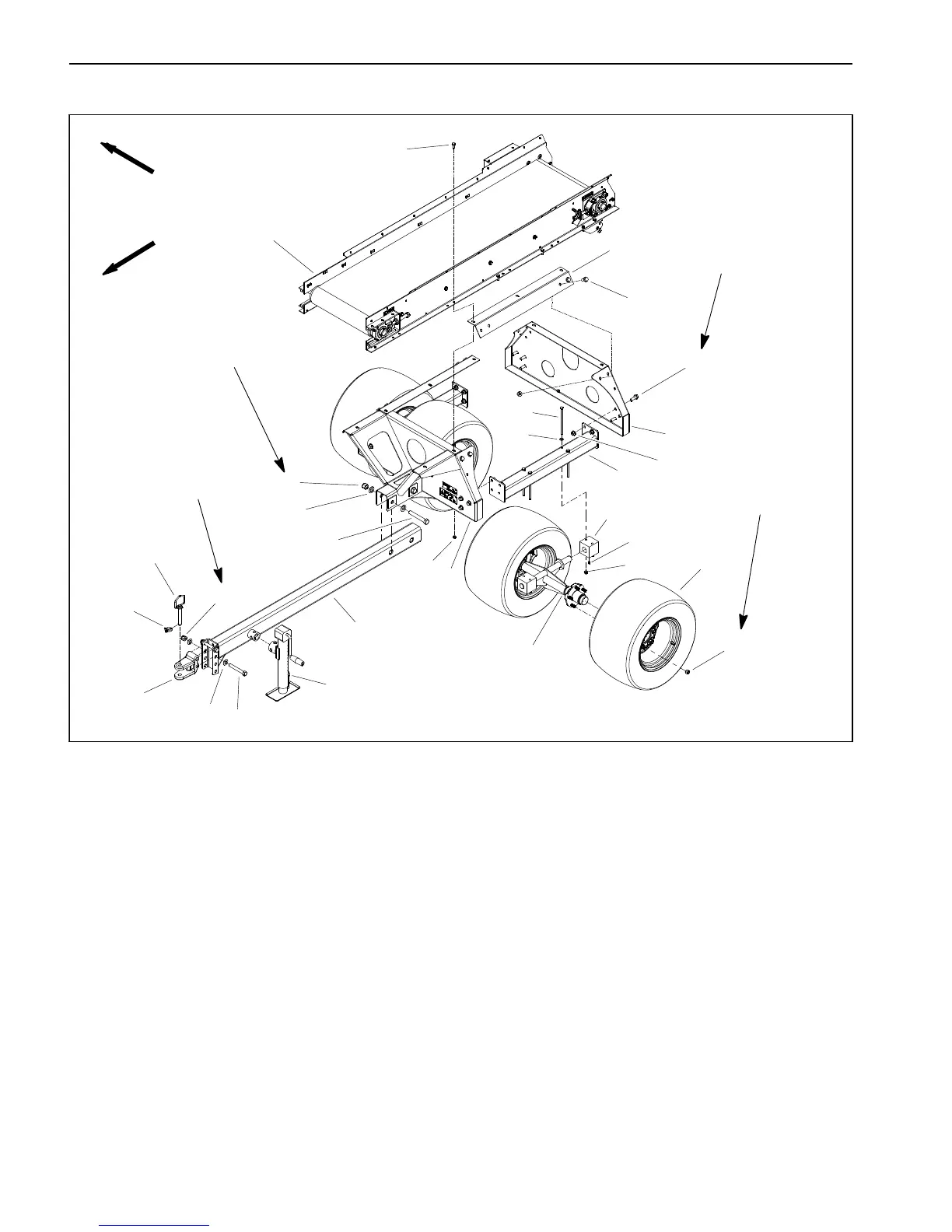

Wheel Assemblies (Tow Chassis)
Figure 15
1. Floor assembly
2. Hitch
3. Hitch clevis
4. Jack
5. Walking beam bearing (4 used)
6. Walking beam assembly (2 used)
7. Wheel assembly (4 used)
8. Cap screw (2 used)
9. Flat washer (4 used)
10. Lock nut (2 used)
11. Cap screw (2 used)
12. Flat washer (4 used)
13. Lock nut (2 used)
14. Cap screw (8 used)
15. Flat washer (8 used)
16. Flange nut (8 used)
17. Grease fitting (4 used)
18. Flange head screw (8 used)
19. Flange head screw (6 used)
20. Flange nut (6 used)
21. Top cross member (2 used)
22. Frame brace
23. Cross member (2 used)
24. Lock nut (20 used)
25. Flange head screw (12 used)
26. Front brace
27. Hitch pin
28. Lynch pin
29. Lug nut (5 used per wheel)
7
2
3
4
5
6
8
9
10
11
12
13
16
17
18
21
22
23
24
25
26
27
19
20
28
14
15
1
29
70 to 90 ft--lb
(95 to 122 N--m)
94 to 116 ft--lb
(128 to 157 N--m)
FRONT
RIGHT
240 to 292 ft--lb
(322 to 396 N--m)
135 to 165 ft--lb
(183 to 223 N--m)
NOTE: The outer wheels can be removed with the
walking beam (item 6) attached to the ProPass ma-
chine. If an inner wheel needs to be removed, walking
beam removal is necessary (see Walking Beam As-
sembly in this section).
