Toro ProPass 200 Service Manual

ProPass 200Page 3 -- 40Hydraulic System

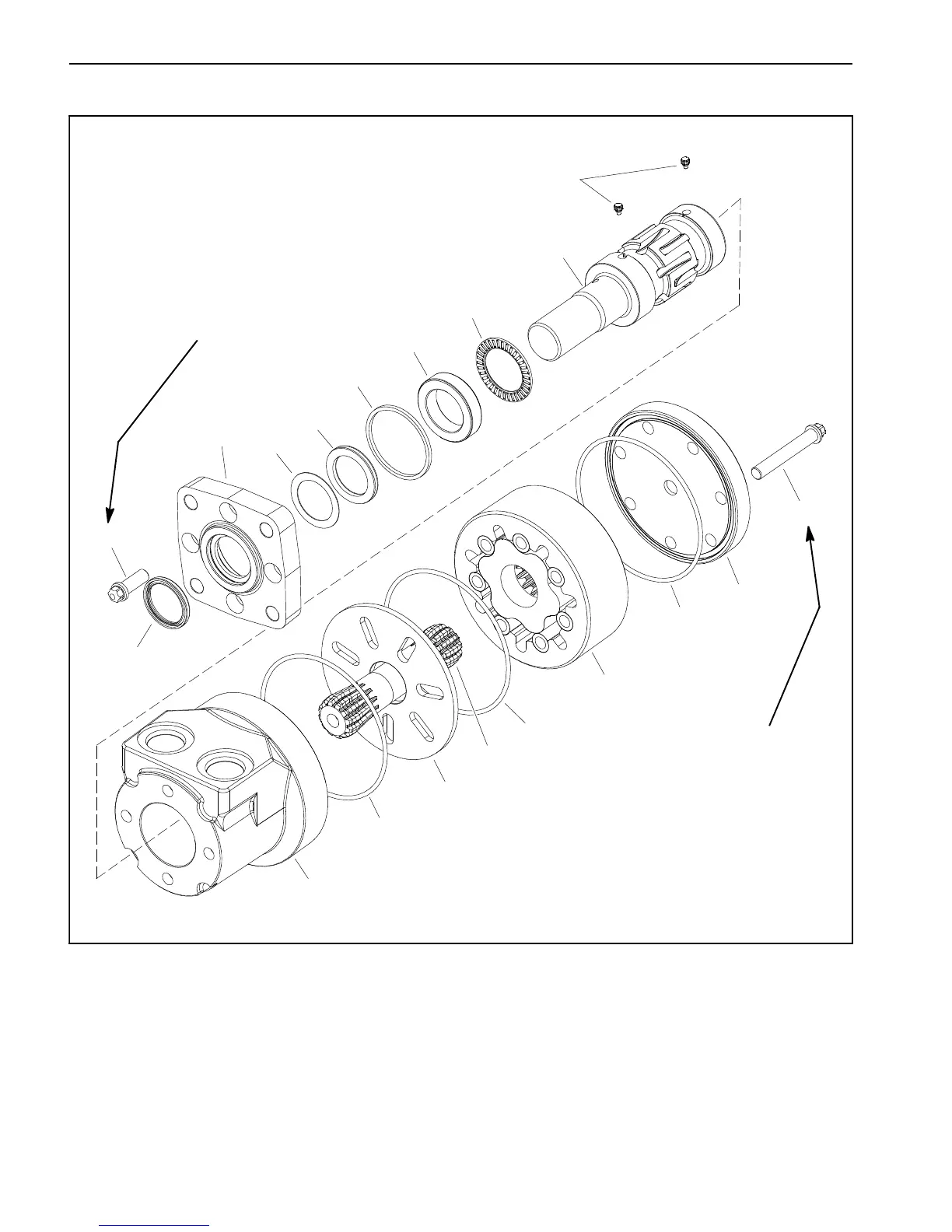

Floor Moto r Service
1. Cap screw (4 used)
2. Mounting flange
3. Exclusion seal
4. Back--up ring
5. Pressure seal
6. Seal
7. Bearing race
8. Thrust bearing
9. Output shaft
10. Housing
11. Seal (3 used)
12. Spacer plate
13. Drive
14. Geroler assembly
15. End cap
16. Cap screw (7 used)
17. Poppet (2 used)
Figure 41
9
8
7
6
5
4
2
1
3
10
12
13
17
14
15
16
250 in--lb
(28 N--m)
Loctite #601
300 in--lb
(34 N--m)
11
11
11
NOTE: For service of the conveyor motor, see the
Eaton (Char--Lynn) S--Series General Purpose Motors
Parts and Repair Manual at the end of this chapter.
