Toro ProPass 200 Service Manual

ProPass 200 Electrical SystemPage 4 -- 17

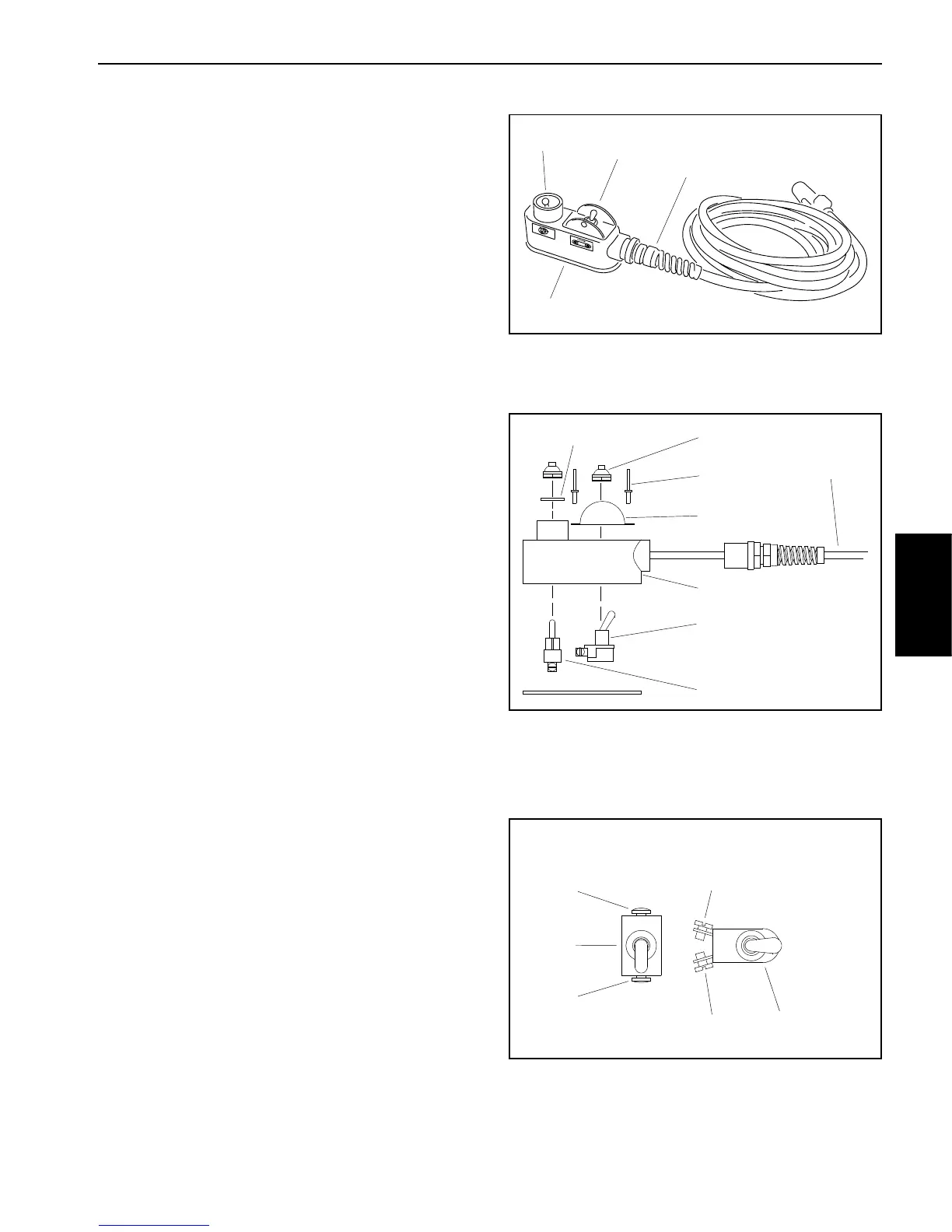

Pendant Assembly (Machines with Standard Hydraulic Controls)
The pendant assembly allows the machine operator to
engage the rear option (twin spinner or conveyor) and
the floor from the tow vehicle operator’s position. The
pendant assembly includes two (2) switches, the junc-
tion box and the wire harness (Fig. 17).
Both of the switches used in the ProPass pendant are
two (2) position switches with two (2) terminals. To ac-
cess the switch terminals for testing, remove the cover
from the bottom of the junction box. Make sure that elec-
trical power to the switches is disconnected before test-
ing the switches. Use a multimeter to check the switch
for continuity. There should not be continuity between
the switch terminals when the switch is in the OFF posi-
tion as shown in Figure 17. There should be continuity
between the switch terminals when the switch is in the
ON position.
If switch testing determines that a switch is faulty, re-
move switch from junction box and replace switch (Fig.
18). Make sure that wire harness connectors are at-
tached to correct switch terminals (Fig. 19).
1. Rear option switch
2. Floor switch
3. Junction box
4. Wire harness
Figure 17
2
1
3
4
1. Rear option switch
2. Floor switch
3. Junction box
4. Switch guard
5. Pop rivet (2 used)
6. Switch boot (2 used)
7. Washer
8. Wire harness
Figure 18
2
3
6
1
5
7
4
8
1. Spinner switch 2. Floor switch
Figure 19
2
1
OFF
POSITION
OFF
POSITION
WHITE
WIREWHITE
WIRE
BLACK
WIRE
GREEN
WIRE
TOP VIEW OF SWITCHES
Electrical
System
