ProPass 200 Page 5 -- 15 Chassis
Disassembly (Fig. 13)
1. Position machine on a levelsurface.IfProPassisat-
tached to tow vehicle, apply tow vehicle parking brake,
stop engine and remove key from the ignition switch.
Chock wheels to prevent ProPass machine from mov-
ing.
2. Remove left side conveyor frame and the floor con-
veyor belt (see Floor Conveyor Belt in this section).
3. If right side idler roller take up bearing is to removed,
remove idler roller from right side conveyor frame (see
Idler and Drive Rollers in this section).
4. Remove take up bearings from frame using Figure
13 as a guide.
Assembly (Fig. 13)
1. Apply antiseize lubricant to the grooves of the take
up bearing before installing the bearing to the channels
of the conveyor frame.
2. Install take up bearing to frame using Figure 13 as a
guide. Do not tighten locking or adjusting jam nuts until
conveyor belt is properly adjusted.
3. If idler roller was removed, insert idler roller into take
up bearing o n right side conveyor frame. Do not lock
bearing collar or install set screw in collar at this time.
4. Install the floor conveyor belt and left side conveyor
frame to machine (see Floor Conveyor Belt in this sec-
tion). During assembly, make sure to center the rollers
in the frame, to lock the bearing collars and to install set
screws in collars on both sides of idler and drive roller
bearings.
5. Grease all four (4) bearings after a ssembly is com-
plete.

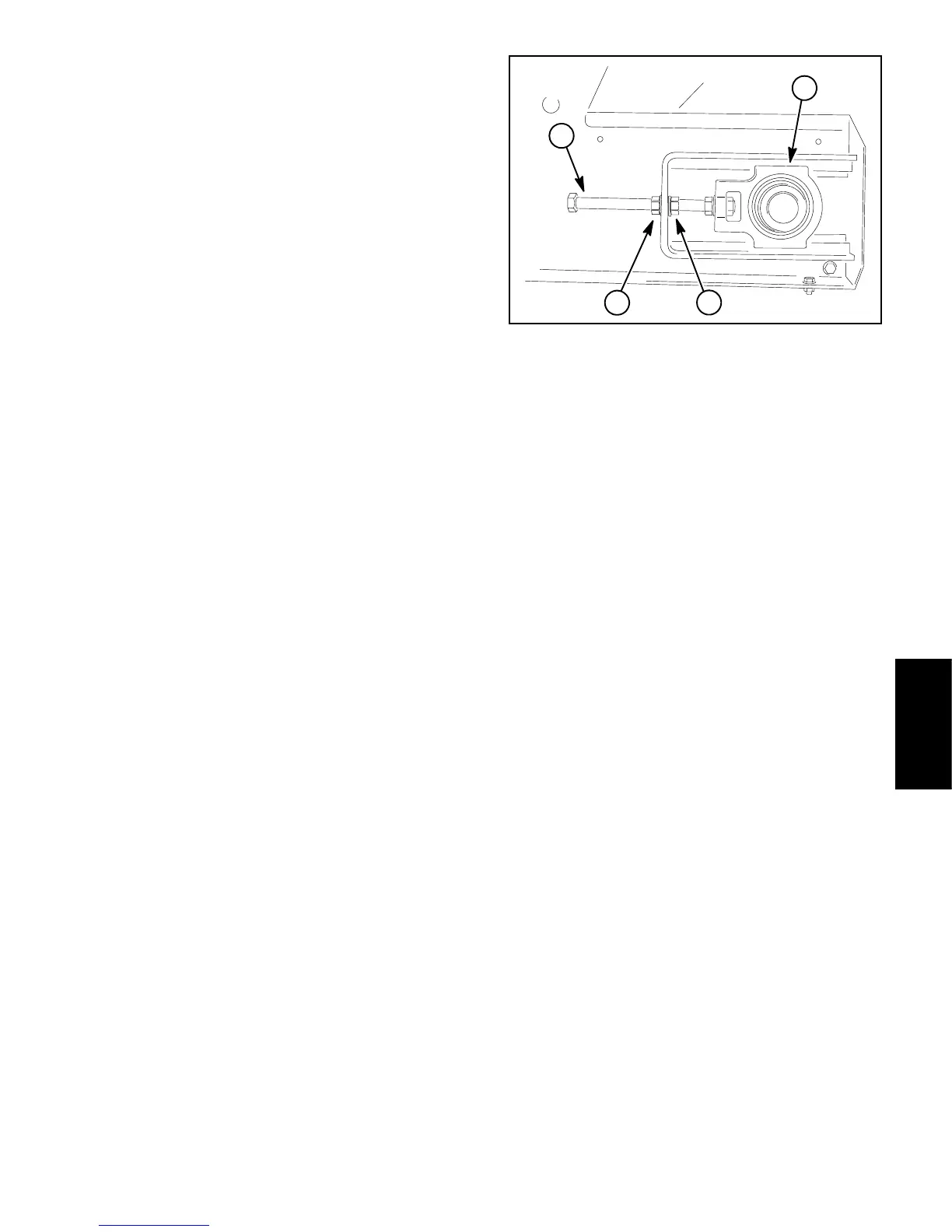

1. Tensioner rod
2. Locking jam nut
3. Adjusting jam nut
4. Take up bearing
Figure 14
2
1
4
3
Chassis
