Machine Hydraulic Control
ProPass 200 machines use either standard hydraulic
controls or electronic hydraulic controls to allow the op-
erator to change machine settings.
Standard Hydraulic Controls
Machines with standard hydraulic controls include
manual hydraulic controls on the front of the ProPass
hopper to adjust hydraulic flow to the floor and rear op-
tion (twin spinner or conveyor) motors (Fig. 2 ). A
pendant electrical control allows the operator to ener-
gize the floor and rear option motors from the operator
position of the tow vehicle.
Electronic Hydraulic Controls
Machines with electronic hydraulic controls include a
wireless remote to electrically adjust hydraulic flow to
the floor and rear option (twin spinner or conveyor) mo-
tors (Fig. 3). The remote allows initial a djustment of the
floor and rear option motors as well as making adjust-
ments possible while the machine is operating. An
E--Stopbuttononthemachinedisablestheelectrical
system to prevent unexpected machine operation.
If there should be a problem with the wireless remote,
ProPass machines with electronic controls have manual
override adjustments on the driver side of the hydraulic
system that will allow continued operation (Fig. 4). A
control knob is used to adjust floor speed and a flat blade
screwdriver can be used to adjust the rear option speed.

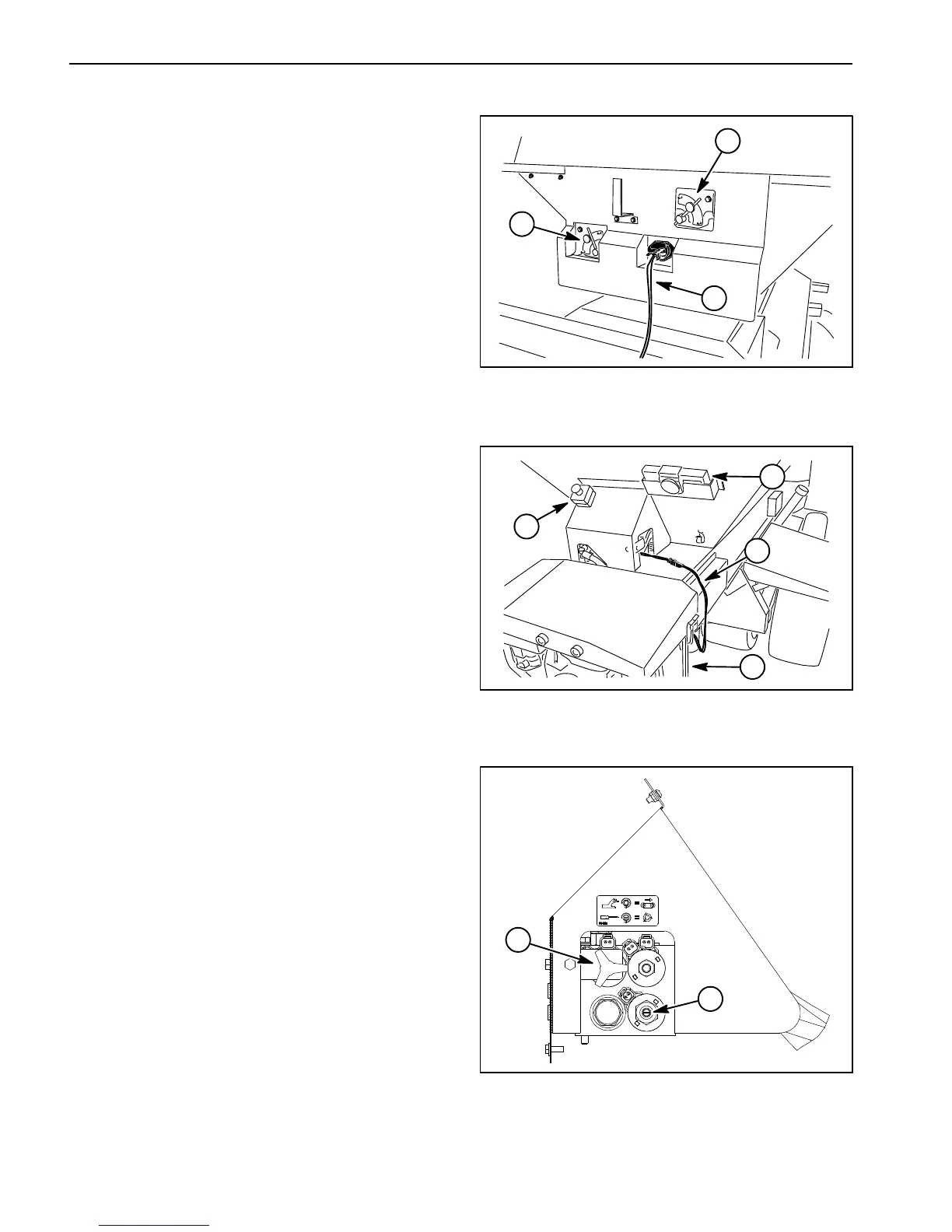

Figure 2
1. Floor control
2. Rear option control
3. Pendant harness
2
1
3
Figure 3
1. Wireless remote
2. E--Stop button
3. Power lead harness
4. Optional power pack
3
1
2
4
Figure 4
1. Control knob 2. Screwdriver slot
1
2
