ProPass 200 Page 3 -- 21 Hydraulic System

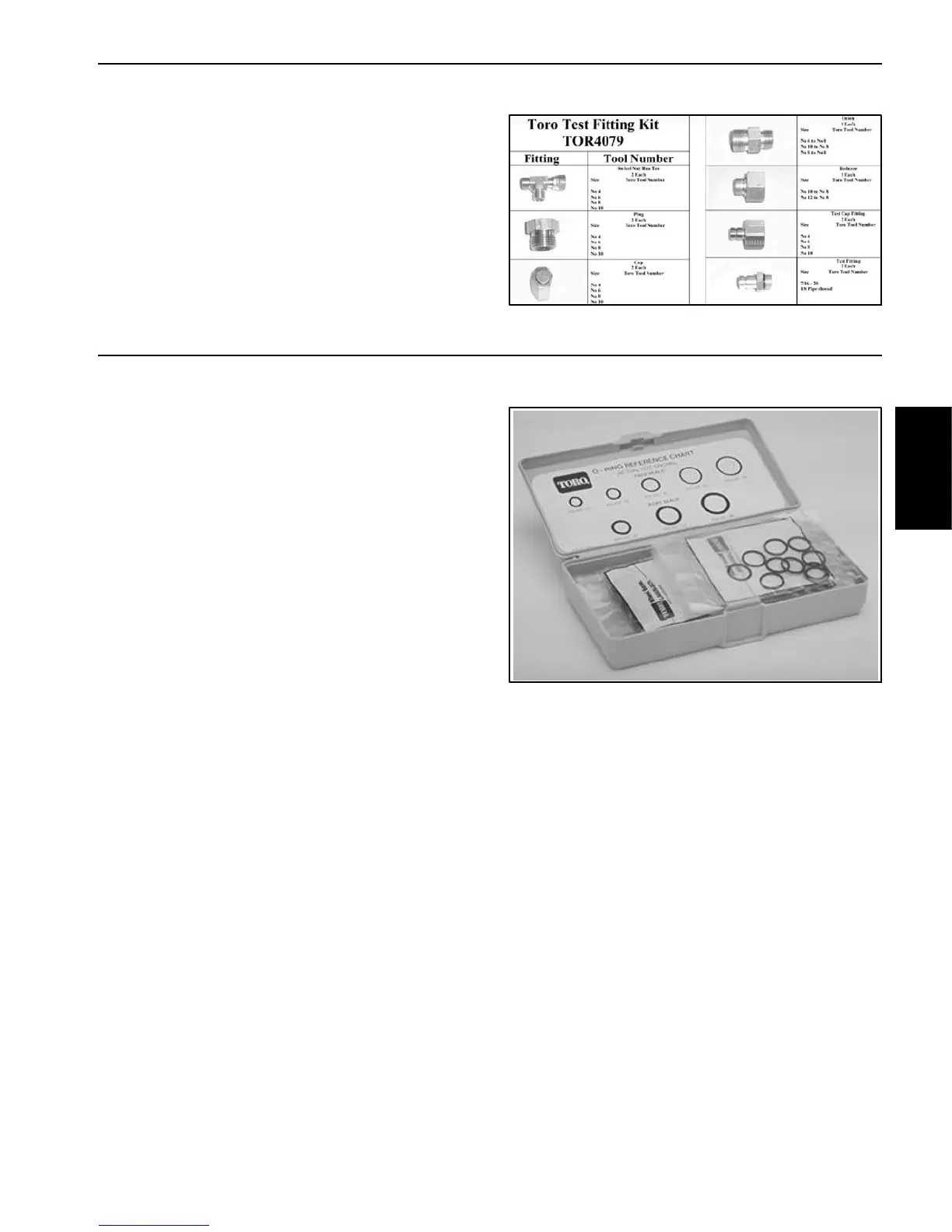

Hydraulic Test Fitting Kit
This kit includes a variety of O--ring Face Seal fittings to
enable you to connect test gauges into the system.
The kit includes: tee’s, unions, reducers, plugs, caps
and male test fittings.
Toro Part Number: TOR4079
Figure 24
O--ring Kit
This kit includes O--rings in a variety of sizes for face
seal and port seal hydraulic connections. It is recom-
mended that O--rings be replaced whenever a hydraulic
connection is loosened.
Toro Part Number: 117--2727
Figure 25
Hydraulic
System
