Hydraulic Control Manifold (Machines with Electronic Hydraulic Controls)

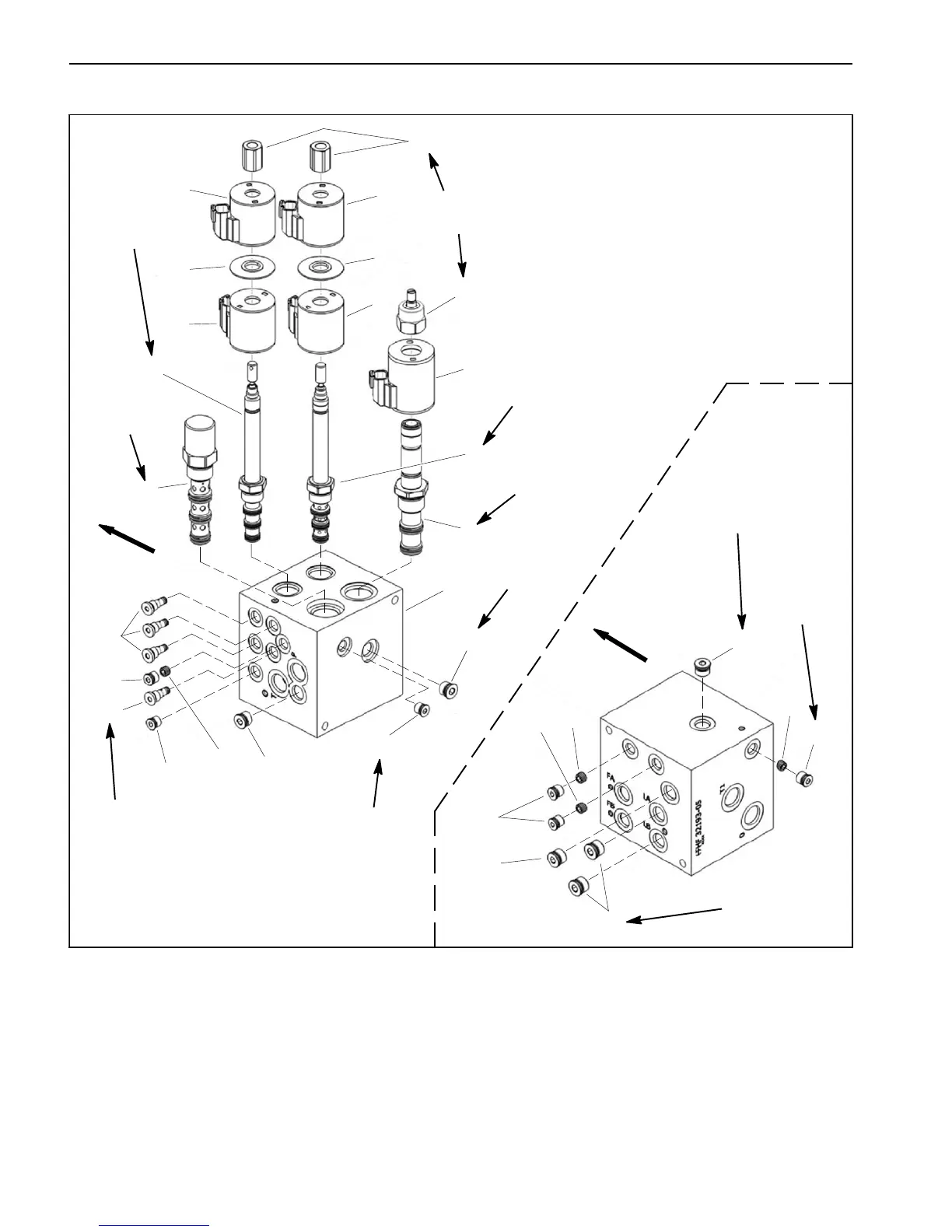

Figure 36
1. Control manifold
2. Proportional flow valve (PV1)
3. Solenoid valve (SV1)
4. Solenoid valve (SP1)
5. Pressure compensator valve (EC1)
6. Solenoid coil
7. Coil nut
8. Solenoid coil (4 used)
9. Coil spacer
10. Coil nut
11. Plug (4 used)
12. #4 plug (6 used)
13. Check valve (4 used)
14. Orifice plug (0.068)
15. Orifice plug (0.040)
16. Orifice plug (0.020) (2 used)
17. #6 plug (2 used)
2
3
6
8
9
10
11
13
1
5
7
12
14
4
8
8
8
9
11
12
12
13
15
16
12
12
11
11
16
25 ft--lb
(34 N--m)
20 ft--lb
(27 N--m)
60 in--lb
(6.7 N--m)
35 ft--lb
(47 N--m)
25 ft--lb
(34 N--m)
35 ft--lb
(47 N--m)
25 ft--lb
(34 N--m)
12 to 14 ft--lb
(16to18N--m)
25 ft--lb
(34 N--m)
20 ft--lb
(27 N--m)
UP
UP
17
20 to 26 ft--lb
(27to35N--m)
NOTE: Solenoid valve SV1 and the upper solenoid coil
on solenoid valve SP1 are not used in the ProPass 200
hydraulic system.
