Toro Workman HD 07369 - Removing the Hood; Hood Removal Steps

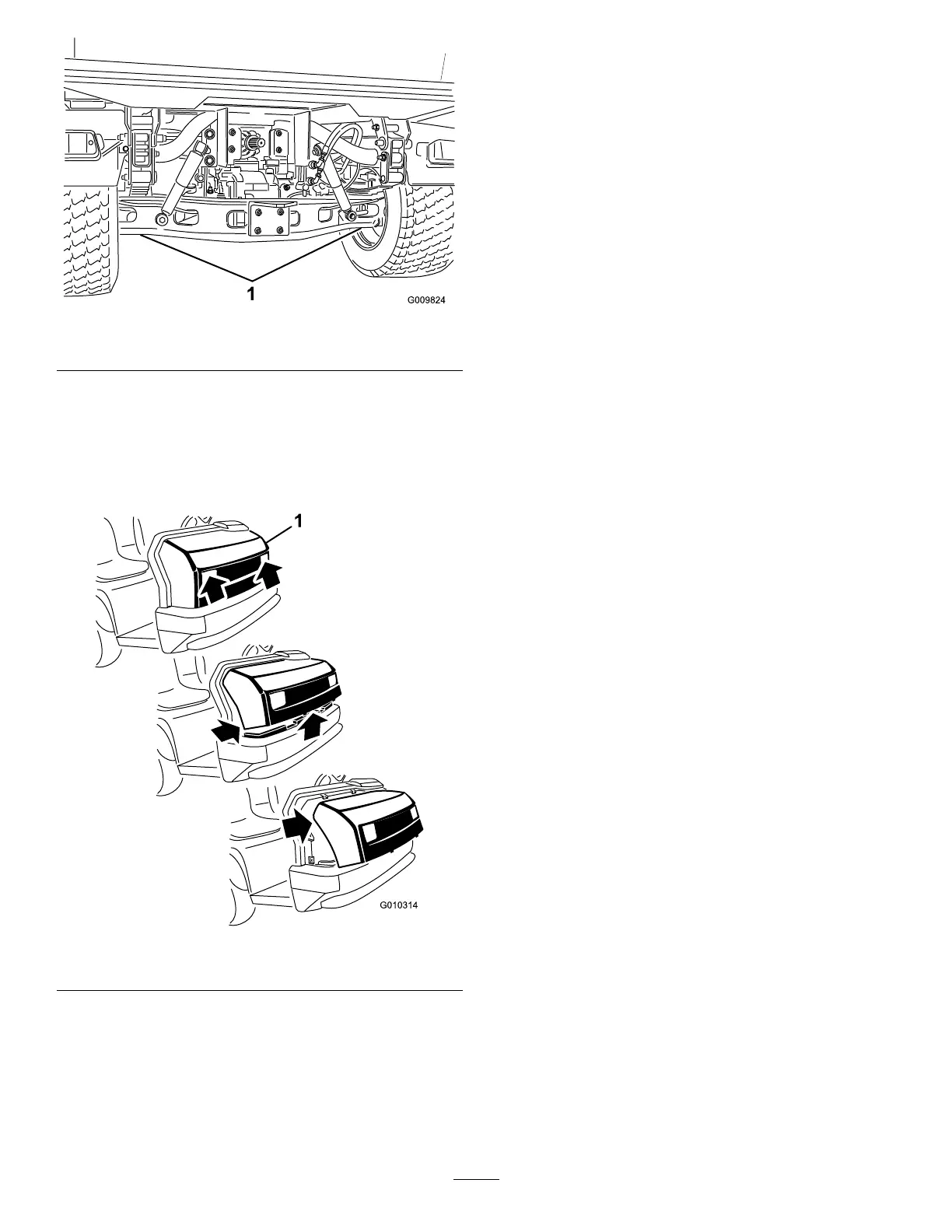

Figure29
1.Rearjackingpoints
RemovingtheHood
1.Whilegraspingthehoodintheheadlightopenings,
liftuponthehoodtoreleasethelowermounting
tabsfromtheframeslots(Figure30).
Figure30
1.Hood
2.Pivotthebottomofthehoodupwarduntilthetop
mountingtabscanbepulledfromtheframeslots
(Figure30).
3.Pivotthetopofhoodforwardandunplugthewire
connectorsfromtheheadlights(Figure30).
4.Removethehood.
Toinstallthehood,completethefollowing:
1.Connectthelights.
2.Insertthetopmountingtabsintotheframeslots.
3.Insertthelowermountingtabsintotheframeslots.
4.Ensurethatthehoodisfullyengagedinthetop,
sidesandbottomgrooves.
