Lubrication
GreasingBearingsand
Bushings
ServiceInterval:Every100hours(Lubricatemore
frequentlyinheavydutyapplications)
Thevehiclehasgreasettingsthatmustbelubricated
regularlywithNo.2GeneralPurposeLithiumBase
Grease.

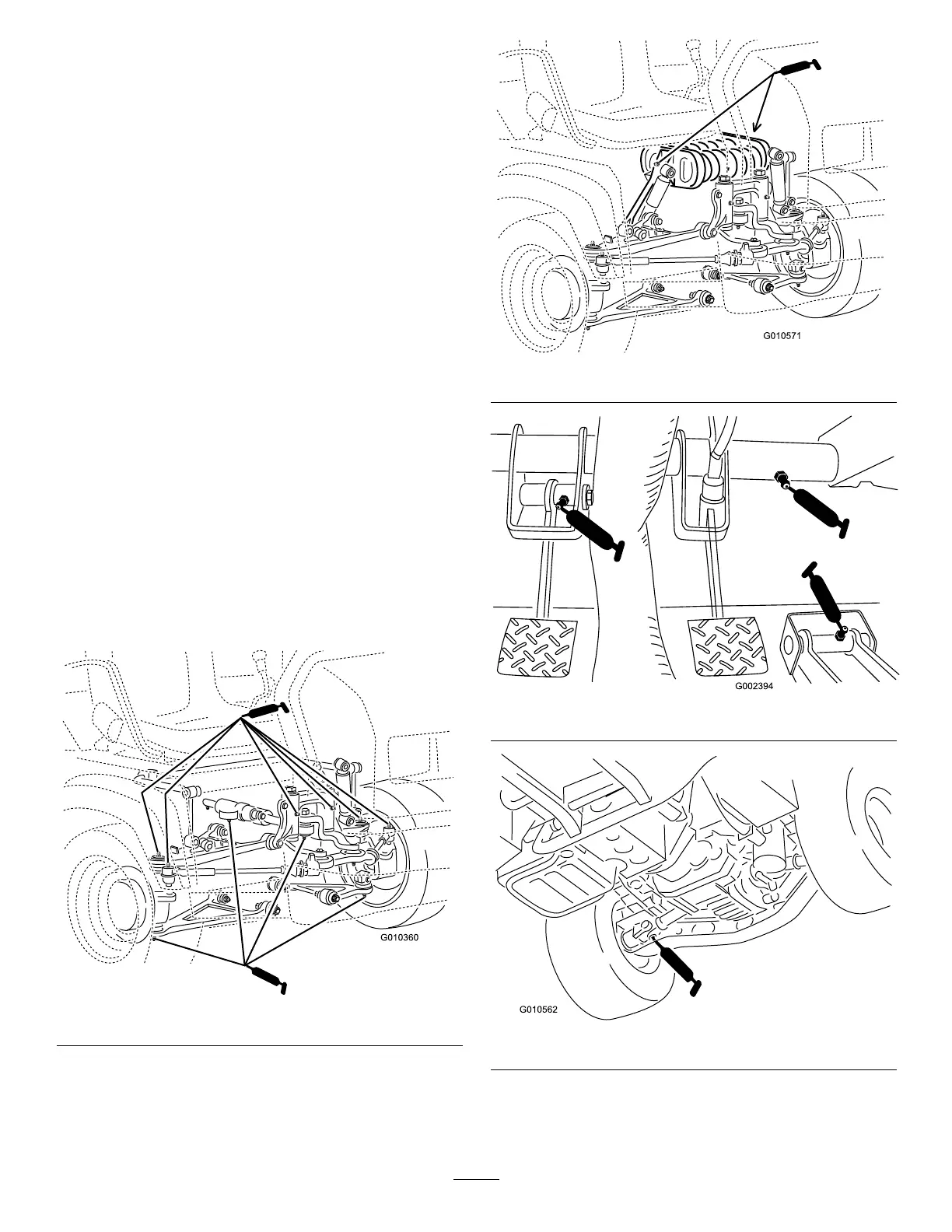

Thegreasettinglocationsandquantitiesareasfollows:
•Balljoints(4),tierods(2),pivotmounts(2)and
steeringcylinder(2)(Figure31)
•Springtower(2)(Figure32)
•Clutch(1),accelerator(1),brake(1)(Figure33)
•U-joint(18)(Figure34)
Important:Whengreasingthedriveshaftuniversal
shaftbearingcrosses,pumpgreaseuntilitcomes
outofall4cupsateachcross.
1.Wipeeachgreasettingcleansoforeignmatter
cannotbeforcedintothebearingorbushing.
2.Pumpgreaseintoeachbearingorbushing.
3.Wipeoffexcessgrease.
Figure31
Figure32
Figure33
Figure34
