g009164

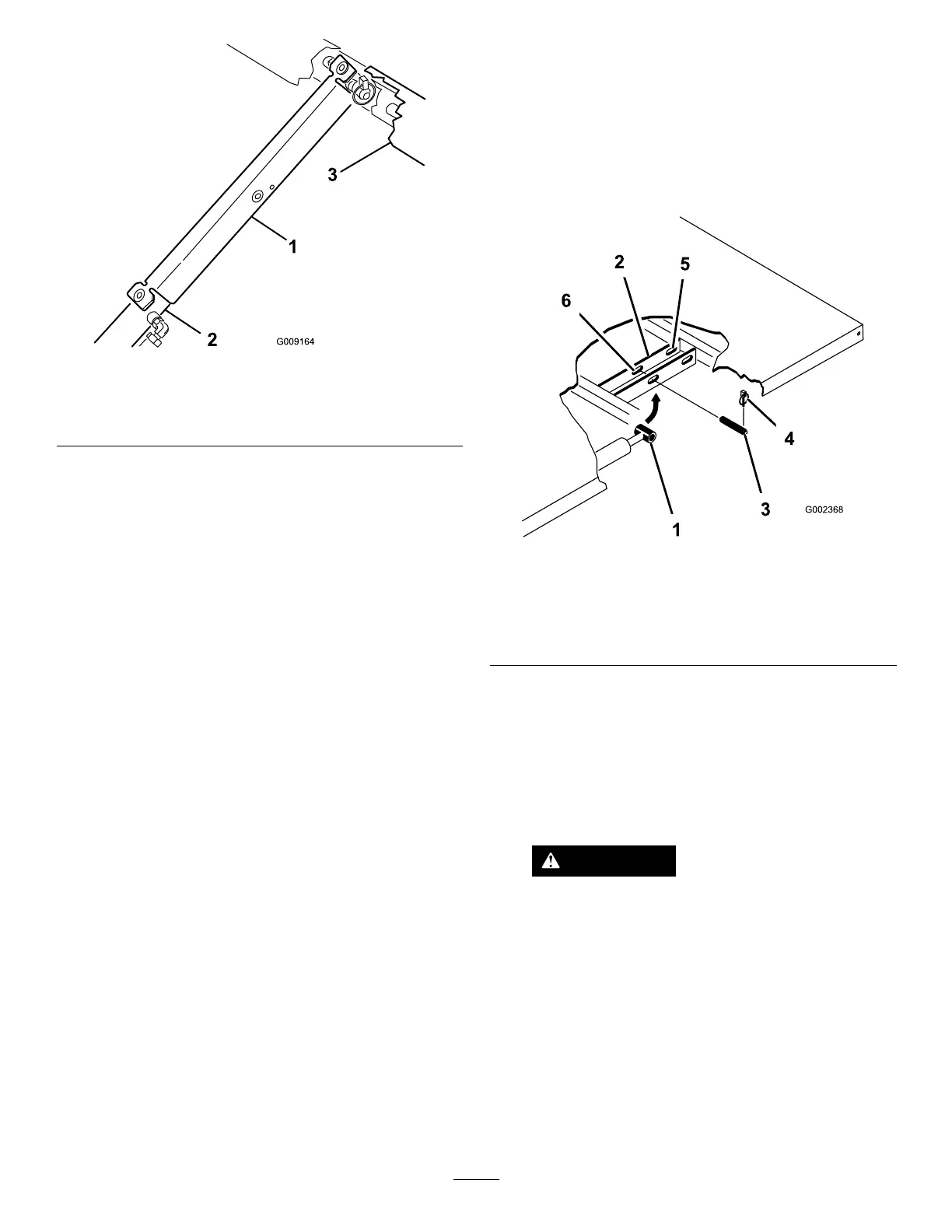

Figure 22
1. Bed support 3. Bed
2. Cylinder barrel
4. Remove the bed support from the cylinder , and
insert it into the brackets on the back of the
ROPS panel.
Important: Do not try to lower the bed with
the bed-safety support on the cylinder .
Removing the Full Bed
1. Start the engine, engage the hydraulic-lift lever ,
and lower the bed until the cylinders are loose
in the slots.
2. Release the lift lever and shut of f the engine.
3. Remove the lynch pins from the outer ends of
the cylinder rod clevis pins ( Figure 23 ).
g002368
Figure 23
1. Cylinder rod end
4. L ynch pin
2. Bed-mounting plate
5. Rear slots (full bed)
3. Clevis pin 6. Front slots (2/3 full bed)
4. Remove the clevis pins securing the cylinder rod
ends to the bed-mounting plates by pushing the
pins toward the inside ( Figure 23 ).
5. Remove the lynch pins and clevis pins securing
the pivot brackets to the frame channels ( Figure
23 ).
6. Lift the bed of f the machine.
CAUTION
The full bed weighs approximately 148 kg
(325 lb), so do not try to install or remove
it by yourself.
Use an overhead hoist or get the help of
2 or 3 other people.
7. Store the cylinders in the storage clips.
8. Engage the hydraulic lift-lock lever on the
machine to prevent accidental extension of the
lift cylinders.
36
