g033488

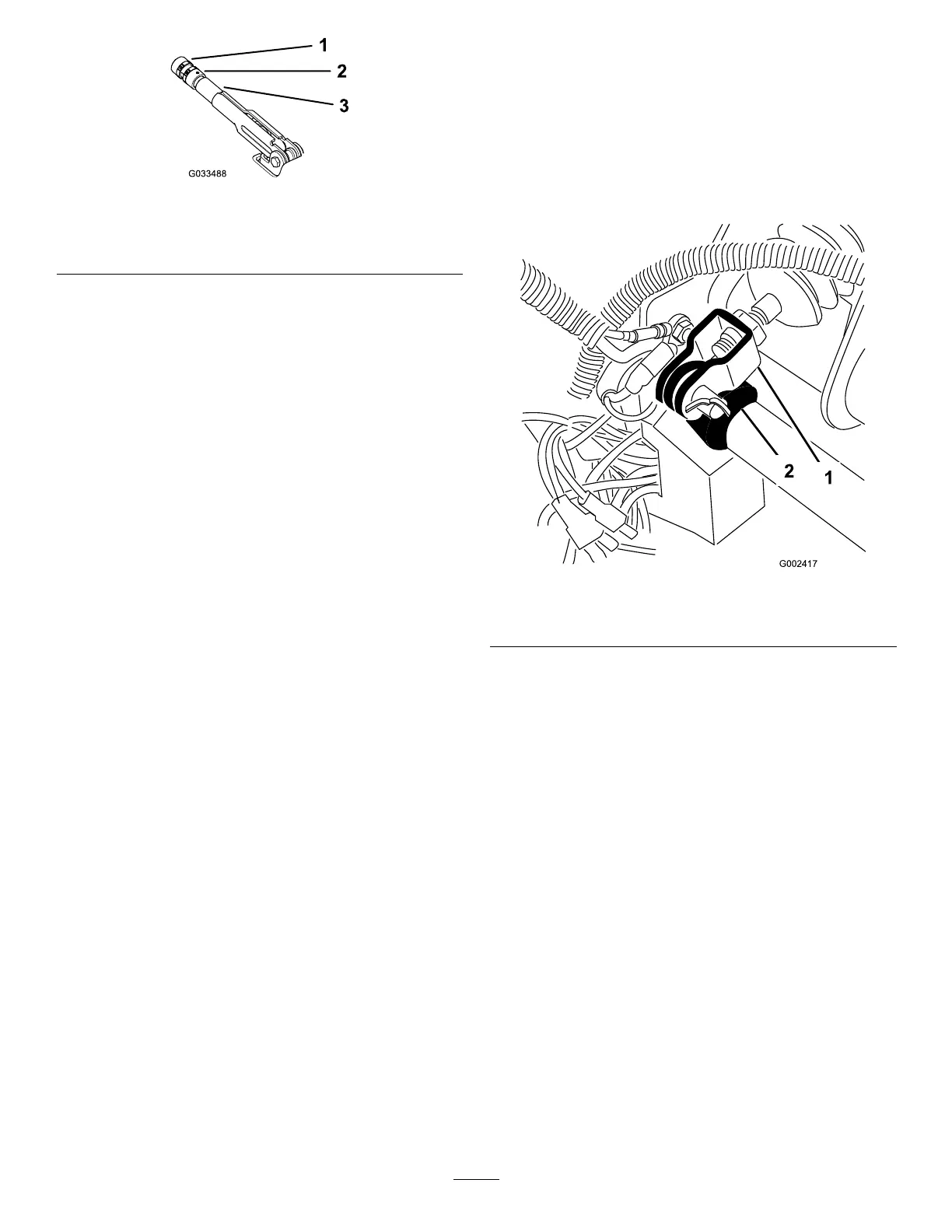

Figure 57
1. Knob 3. Parking-brake lever
2. Set screw
3. Rotate the knob ( Figure 57 ) until a force of 20
to 22 kg (45 to 50 lb) is required to actuate the
lever .
4. T ighten the set screw when nished ( Figure 57 ).
Note: If you can no longer make a parking-brake
adjustment by adjusting the parking-brake
lever , loosen the handle to the middle of the
adjustment and adjust the cable at the rear , then
repeat step 3 .
5. Install the rubber grip onto the parking-brake
lever ( Figure 56 ).
Adjusting the Brake Pedal
Service Interval : Every 200 hours
Note: Remove the font hood to ease the adjustment
procedure.
1. Remove the cotter pin and clevis pin securing
the master cylinder yoke to the brake-pedal
pivot ( Figure 58 ).
g002417
Figure 58
1. Master cylinder yoke 2. Brake-pedal pivot
2. Lift up on the brake pedal ( Figure 59 ) until it
contacts the frame.
3. Loosen the jam nuts securing the yoke to the
master cylinder shaft ( Figure 59 ).
4. Adjust the yoke until its holes align with the hole
in the brake-pedal pivot.
5. Secure the yoke to the pedal pivot with the clevis
pin and cotter pin.
6. T ighten the jam nuts securing the yoke to the
master cylinder shaft.
Note: The brake master cylinder must relieve
pressure when properly adjusted.
