Removing Debris from the
Cooling System
Service Interval : Before each use or daily —Remove
debris from the engine area and
radiator . (Clean it more frequently in
dirty conditions.)
1. Park the machine on a level surface.
2. Engage the parking brake.
3. Shut of f the engine and remove the key .
4. Clean the engine area thoroughly of all debris.

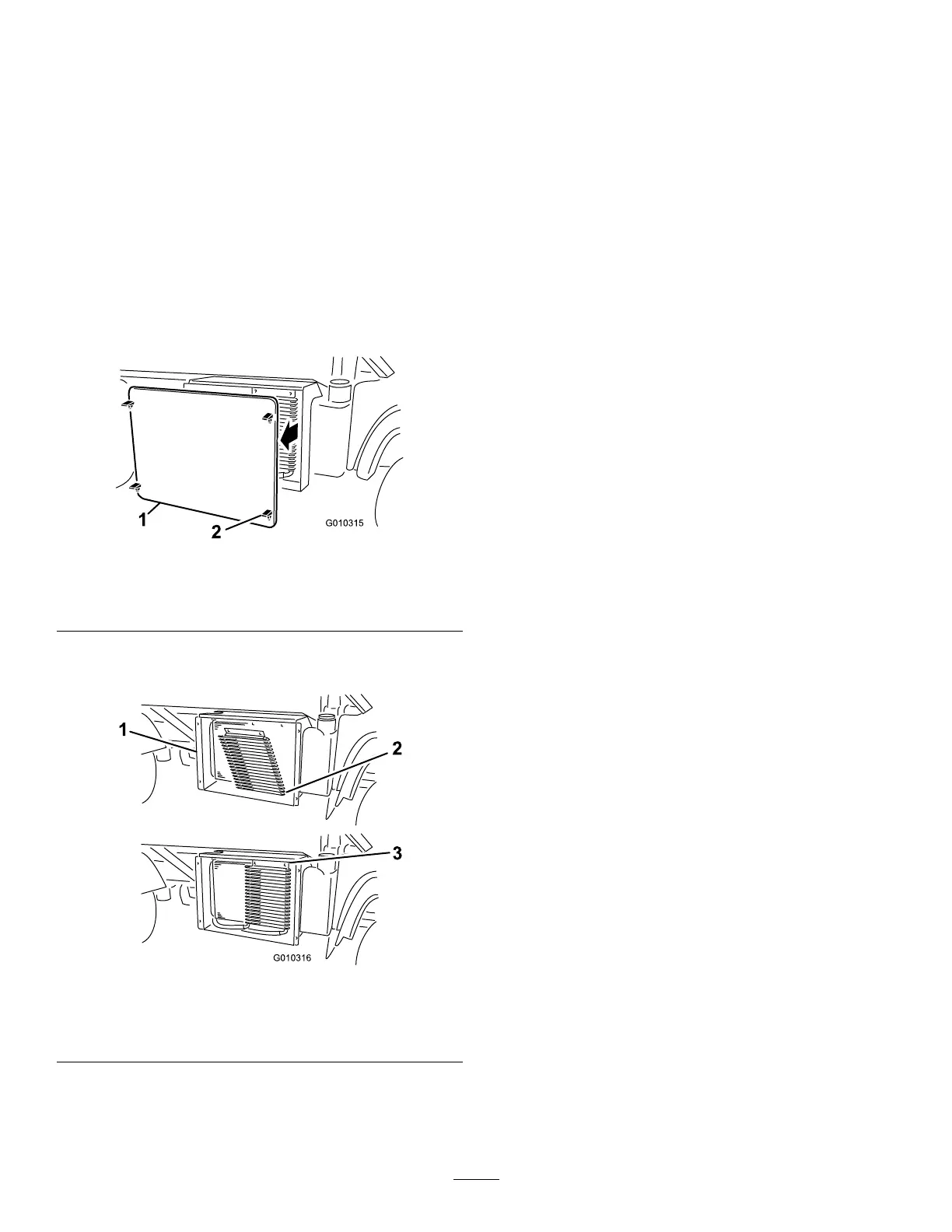

5. Unlatch and remove the radiator screen from the
front of the radiator ( Figure 52 ).
g010315
Figure 52
1. Radiator screen
2. Latch
6. If equipped, rotate the latches and pivot the oil
cooler away from the radiator ( Figure 53 ).
g010316
Figure 53
1. Radiator housing 3. Latches
2. Oil cooler
7. Clean the radiator , oil cooler , and screen with
compressed air .
Note: Blow debris away from the radiator .
8. Install the cooler and screen to the radiator .
Changing the Engine
Coolant
Service Interval : Every 1,000 hours/Every 2 years
(whichever comes rst) —Change
the engine coolant.
Cooling-system capacity: 3.7 L (4 US qt)
Coolant type: a 50/50 solution of water and
permanent ethylene-glycol antifreeze
Contact your authorized T oro distributor .
52
