Drive System
Maintenance
Checking the Front
Differential-Oil Level
4-Wheel Drive Models Only
Service Interval : Every 100 hours/Monthly
(whichever comes rst) —Check
the level of the front dif ferential oil
(4-wheel drive models only).
1. Park the machine on a level surface.
2. Engage the parking brake.
3. Shut of f the engine and remove the key .
4. Clean the area around the ll/check plug on side
of the dif ferential ( Figure 43 ).

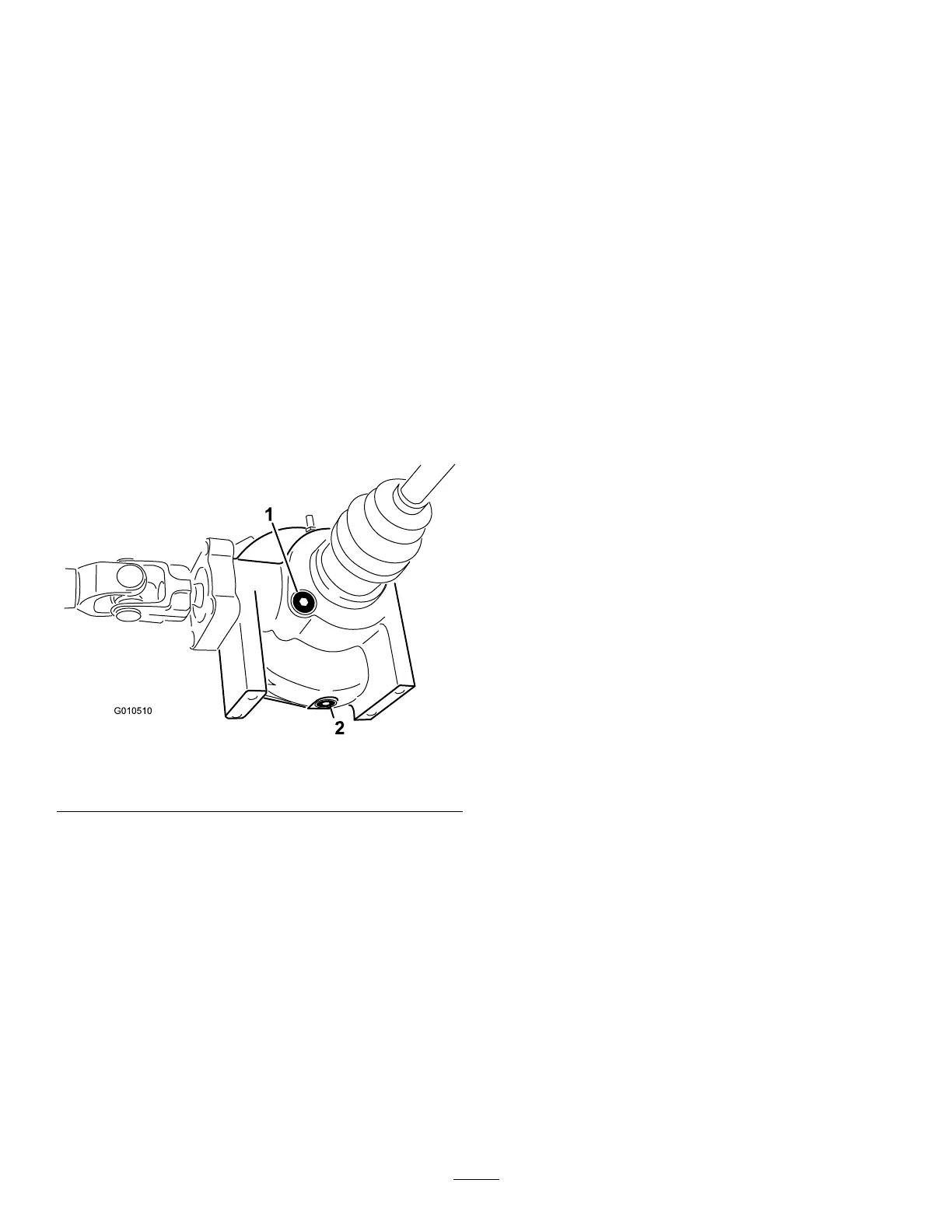

g010510
Figure 43
1. Fill/check plug
2. Drain plug
5. Remove the ll/check plug and check the level
of the oil.
Note: The oil should be up to hole.
6. If the oil is low , add specied oil.
7. Install the ll/check plug.
Changing the Front
Differential Oil
4-Wheel Drive Models Only
Service Interval : Every 800 hours (4-wheel drive
models only).
Differential oil specication: Mobil 424 hydraulic
uid
1. Park the machine on a level surface.
2. Engage the parking brake.
3. Shut of f the engine and remove the key .
4. Clean the area around the drain plug on the side
of the dif ferential ( Figure 43 ).
5. Place a drain pan under the drain plug.
6. Remove the drain plug and let the oil ow into
the drain pan.
7. Install and tighten the plug when the oil stops
draining.
8. Clean the area around the ll/check plug on the
bottom of the dif ferential.
9. Remove the ll/check plug and add specied oil
until the oil level is up to the hole.
10. Install the ll/check plug.
Inspecting the
Constant-V elocity Boot
4-Wheel Drive Models Only
Service Interval : Every 200 hours (4-wheel drive
models only).
Inspect the constant-velocity boot for cracks, holes,
or a loose clamp. Contact your Authorized Service
Dealer for repair if you nd any damage.
