Adjusting the Shift Cables
Service Interval : After the rst 10 hours
Every 200 hours
1. Move the shift lever to the N EUTRAL position.
2. Remove the clevis pins securing the shift cables
to the transaxle-shift arms ( Figure 44 ).
g248309

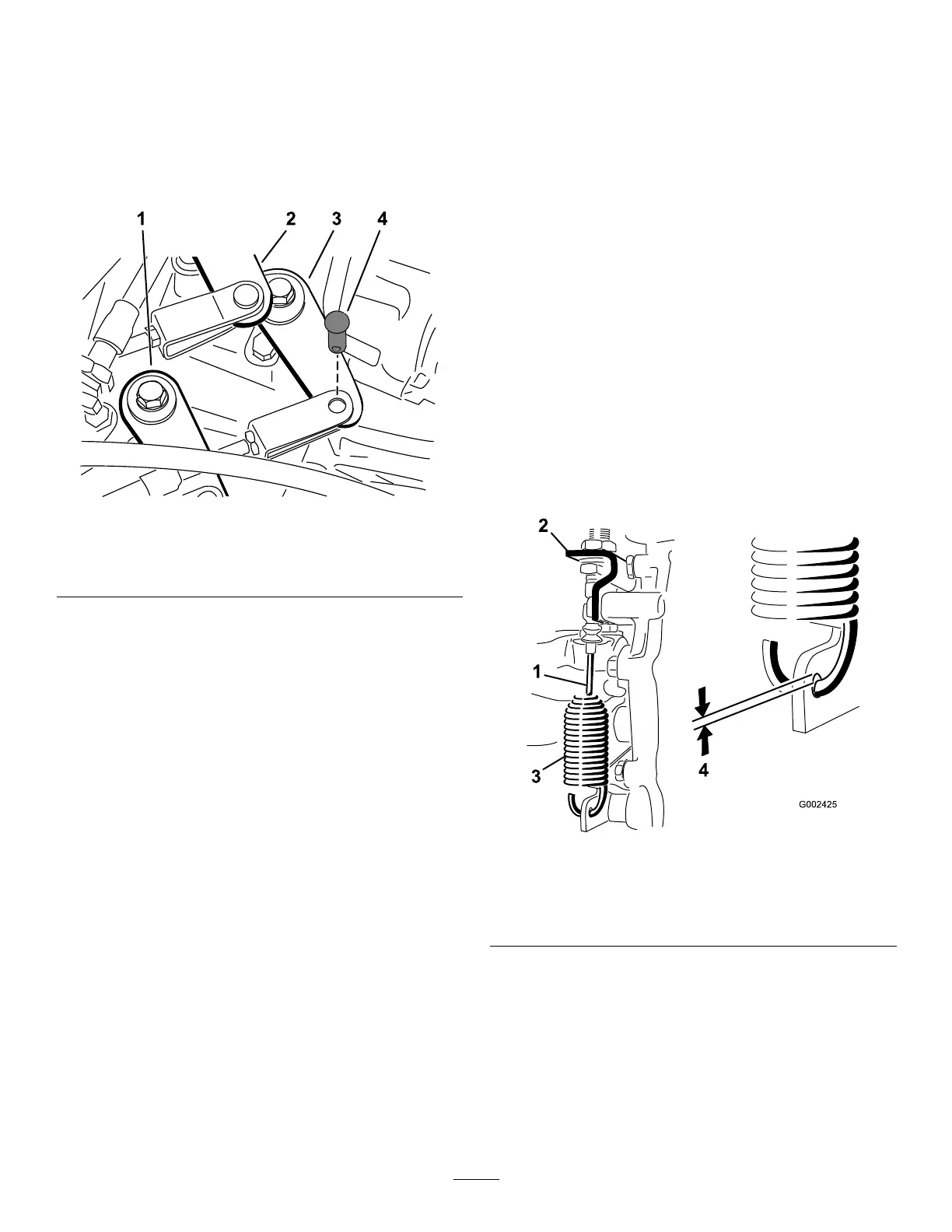

Figure 44
1. Shift arm (High to Low) 3. Shift arm (First to Reverse)
2. Shift arm (Second to Third) 4. Clevis pin
3. Loosen the clevis jam nuts and adjust each
clevis, so that the cable free play is equal
forward and backward relative to the hole in the
transaxle-shift arm (with the transaxle lever free
play taken up in the same direction).
4. Install the clevis pins and tighten the jam nuts
when nished.
Adjusting the High-Low
Cable
Service Interval : Every 200 hours
1. Remove the clevis pin securing the high-low
cable to the transaxle ( Figure 44 ).
2. Loosen the clevis jam nut and adjust the clevis
so that the clevis hole aligns with the hole in the
transaxle bracket.
3. Install the clevis pin and tighten the jam nut
when nished.
Adjusting Differential-Lock
Cable
Service Interval : Every 200 hours
1. Move the dif ferential-lock lever to the O FF
position.
2. Loosen the jam nuts securing the dif ferential-lock
cable to the bracket on the transaxle ( Figure 45 ).
g002425
Figure 45
1. Dif ferential-lock cable 3. Spring
2. T ransaxle bracket
4. 0.25 to 1.5 mm (0.01 to
0.06 inch) gap
3. Adjust the jam nuts to obtain a 0.25 to 1.5 mm
(0.01 to 0.06 inch) gap between the spring hook
and the OD of the hole in the transaxle lever .
4. T ighten the jam nuts when nished.
