Electrical System
Maintenance
Electrical System Safety
• Disconnect the battery before repairing the
machine. Disconnect the negative terminal rst
and the positive last. Connect the positive terminal
rst and the negative last.
• Charge the battery in an open, well-ventilated
area, away from sparks and ames. Unplug the
charger before connecting or disconnecting the
battery . W ear protective clothing and use insulated
tools.

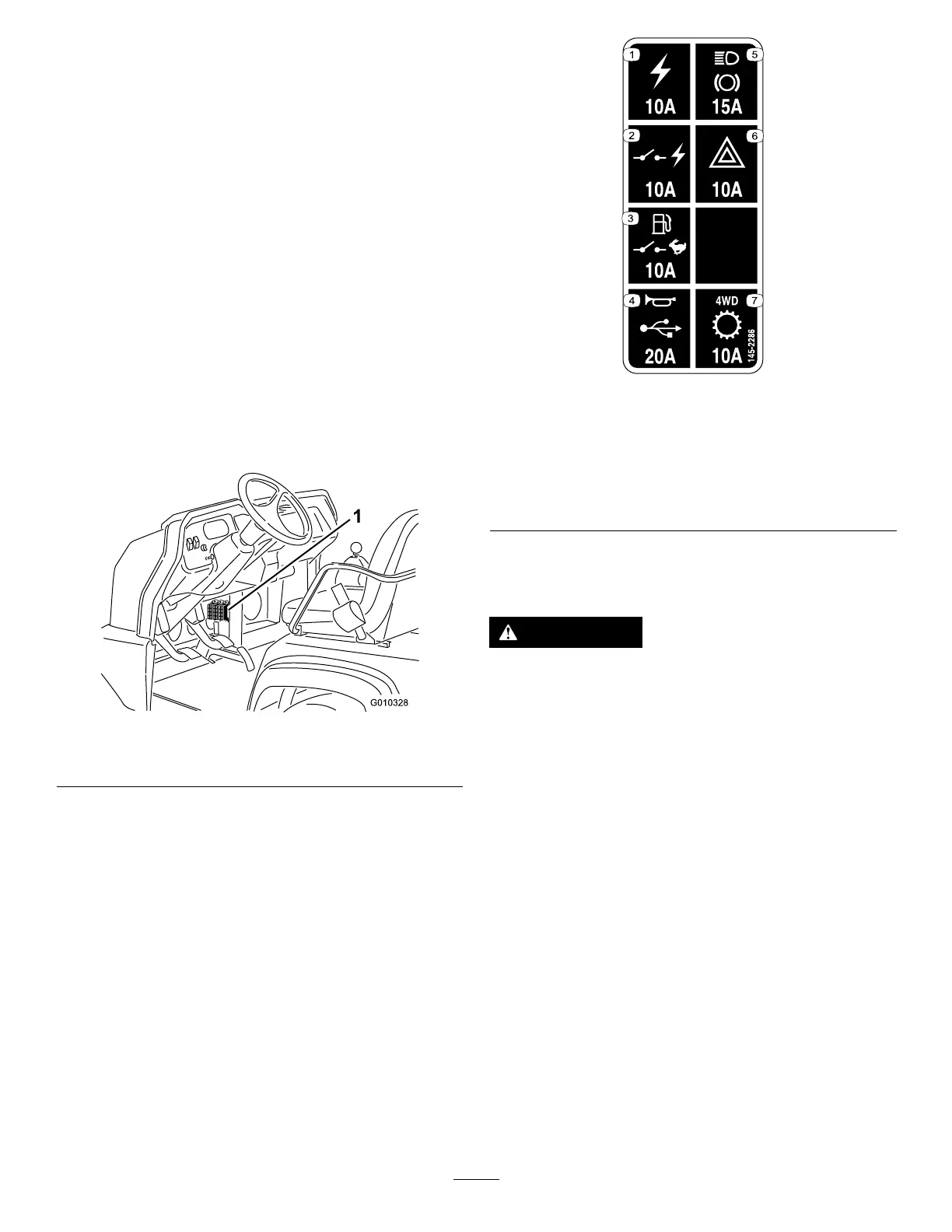

Servicing the Fuses
The fuses for the electrical system are located under
the center of the dash panel ( Figure 39 and Figure 40 ).
g010328
Figure 39
1. Fuses
decal145-2286
Figure 40
1. Power outlet (10 A) 5. Lights, brake (15 A)
2. Switched power (10 A) 6. Hazard (10 A)
3. Fuel pump, supervisor
switch (10 A)
7. 4WD, transmission (10 A)
4. Horn, power point (15 A)
Jump-Starting the Machine
W ARNING
Jump-starting can be dangerous. T o avoid
personal injury or damage to electrical
components in machine, observe the
following warnings:
• Never jump-start with a voltage source
greater than 15 V DC; this damages the
electrical system.
• Never attempt to jump-start a discharged
battery that is frozen. It could rupture or
explode during jump-starting.
• Observe all battery warnings while
jump-starting your machine.
• Be sure your machine is not touching the
jump-start machine.
• Connecting cables to the wrong post could
result in personal injury and/or damage to
the electrical system.
1. Squeeze the battery cover to release the tabs
from the battery base and remove the battery
cover from the battery base ( Figure 41 ).
45
