Toro Workman HDX-D - Controls System Maintenance; Adjusting the Clutch Pedal

Controls System
Maintenance
Adjusting the Clutch Pedal
Service Interval : Every 200 hours
Note: Y ou can adjust the clutch-pedal cable at the
bell housing or at the clutch-pedal pivot. Y ou can
remove the front hood to easily access to the pedal
pivot.
1. Loosen the jam nuts securing the clutch cable to
the bracket on the bell housing ( Figure 61 ).
Note: Y ou may remove and rotate the ball joint,
if additional adjustment is required.

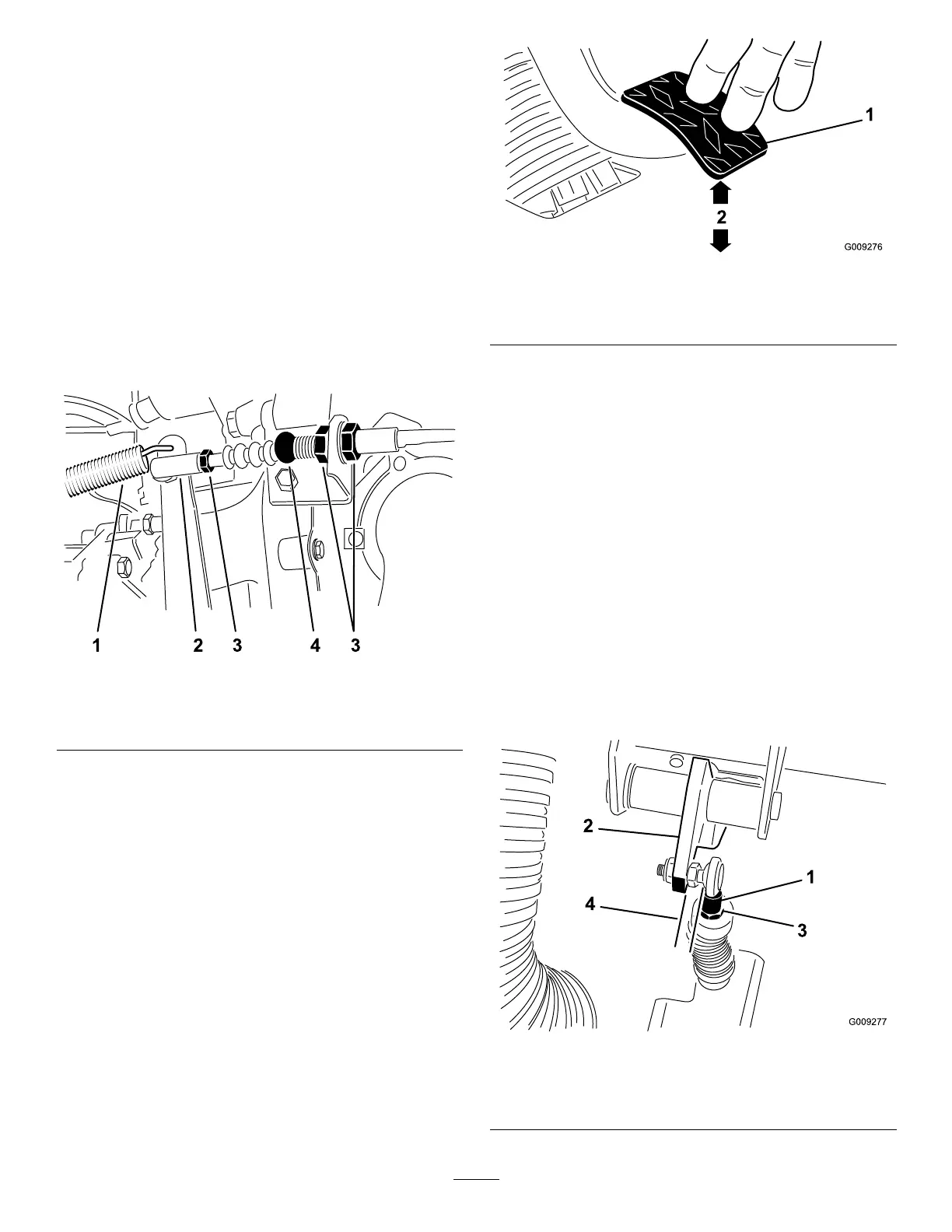

g248360
Figure 61
1. Return spring 3. Jam nuts
2. Ball joint
4. Clutch cable
2. Disconnect the return spring from the clutch
lever .
3. Adjust the jam nuts or ball joint until the rear
edge of the clutch pedal is 9.2 to 9.8 cm (3-5/8
to 3-7/8 inches) from the top of the oor plate
diamond pattern, when you apply 1.8 kg (4 lb) of
force to the pedal ( Figure 62 ).
g009276
Figure 62
1. Clutch pedal 2. 9.2 to 9.8 cm (3-5/8 to
3-7/8 inches)
Note: Force is applied so that the clutch-release
bearing lightly contacts the pressure-plate
ngers.
4. T ighten the jam nuts after you attain the proper
adjustment.
5. Check the 9.2 to 9.8 cm (3-5/8 to 3-7/8 inches)
dimension after the jam nuts have been
tightened to ensure proper adjustment.
Note: Adjust again, if necessary .
6. Connect the return spring to the clutch lever .
Important: Ensure that the rod end is
positioned squarely on the ball, not twisted,
and remains parallel to the clutch pedal after
the jam nut is tightened ( Figure 63 ).
Note: The clutch free play should never be less
than 19 mm (3/4 inch).
g009277
Figure 63
1. Clutch-cable rod end
3. Rod end jam nut
2. Clutch pedal
4. Parallel
