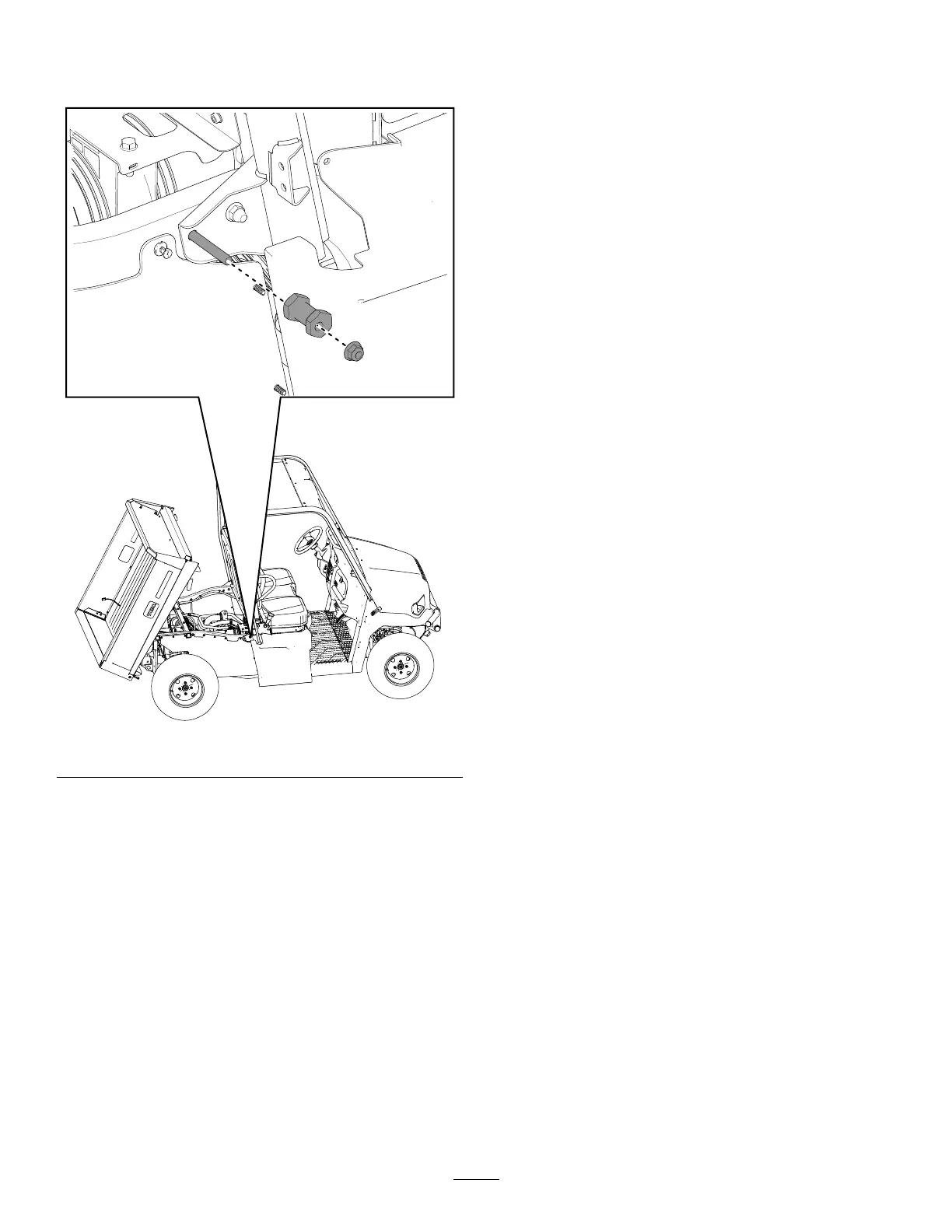

20.Installthepreviouslyremovedlocknuts(3/8

inch)andlatchpinstotherightandleft,rear

frametubes(Figure25).

g361795

Figure25
