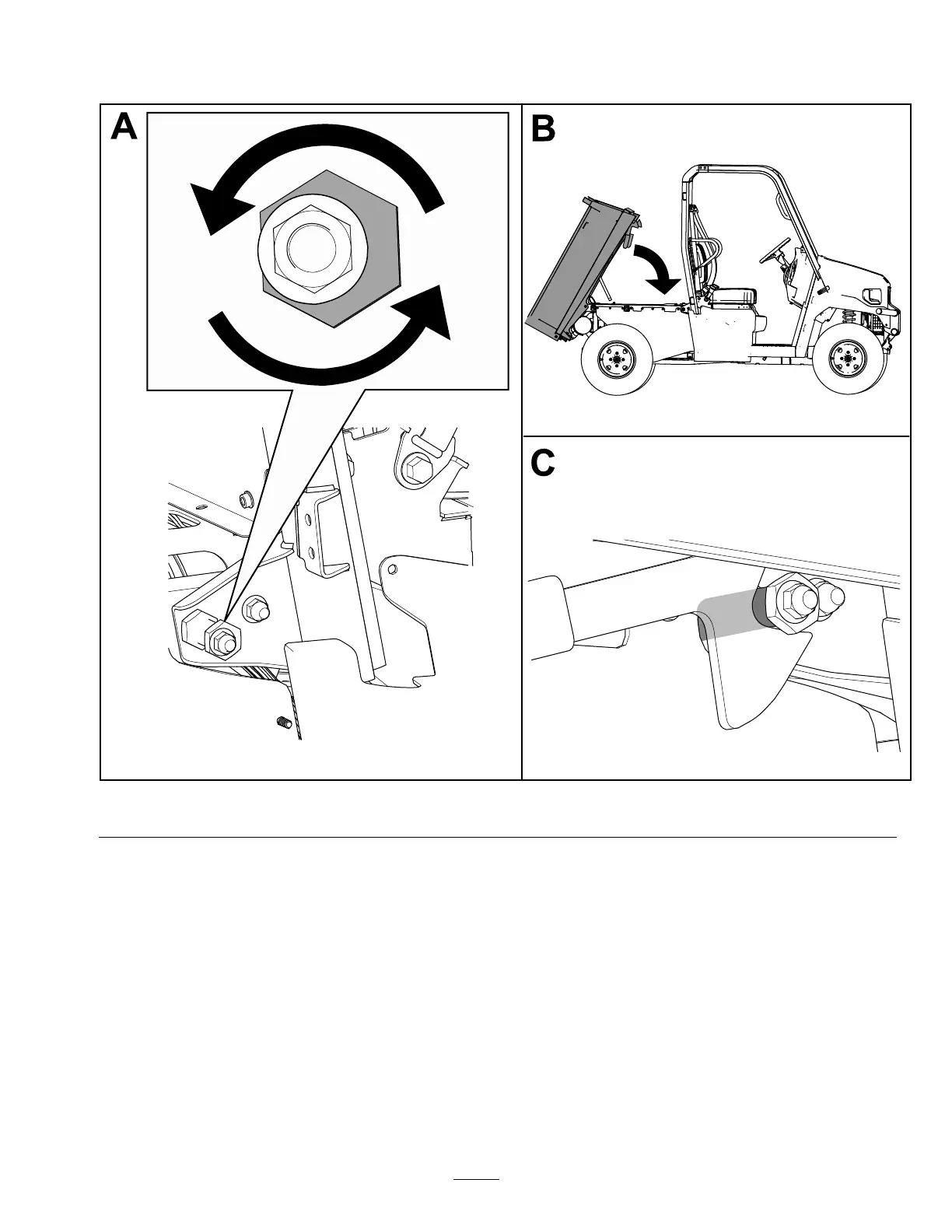

21.Adjustthealignmentnutforthecargobed

latchuntilyouclosethegapandthecargobed

latchessecurely(Figure26).

g361794

Figure26
