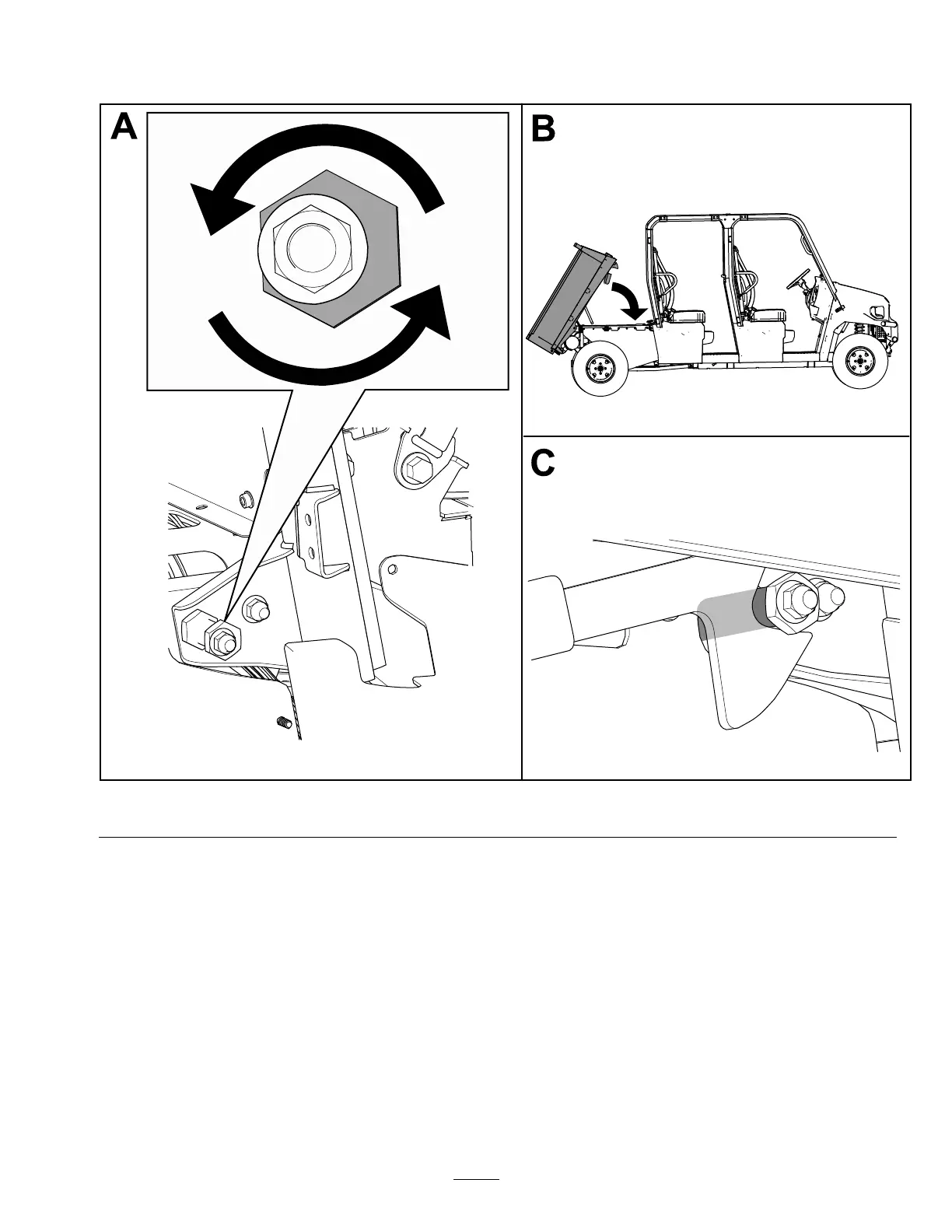

30.Adjustthealignmentnutforthecargobed

latchuntilyouclosethegapandthecargobed

latchessecurely(Figure57).

g364830
