Toshiba B-SA4T User Manual

- 98 -

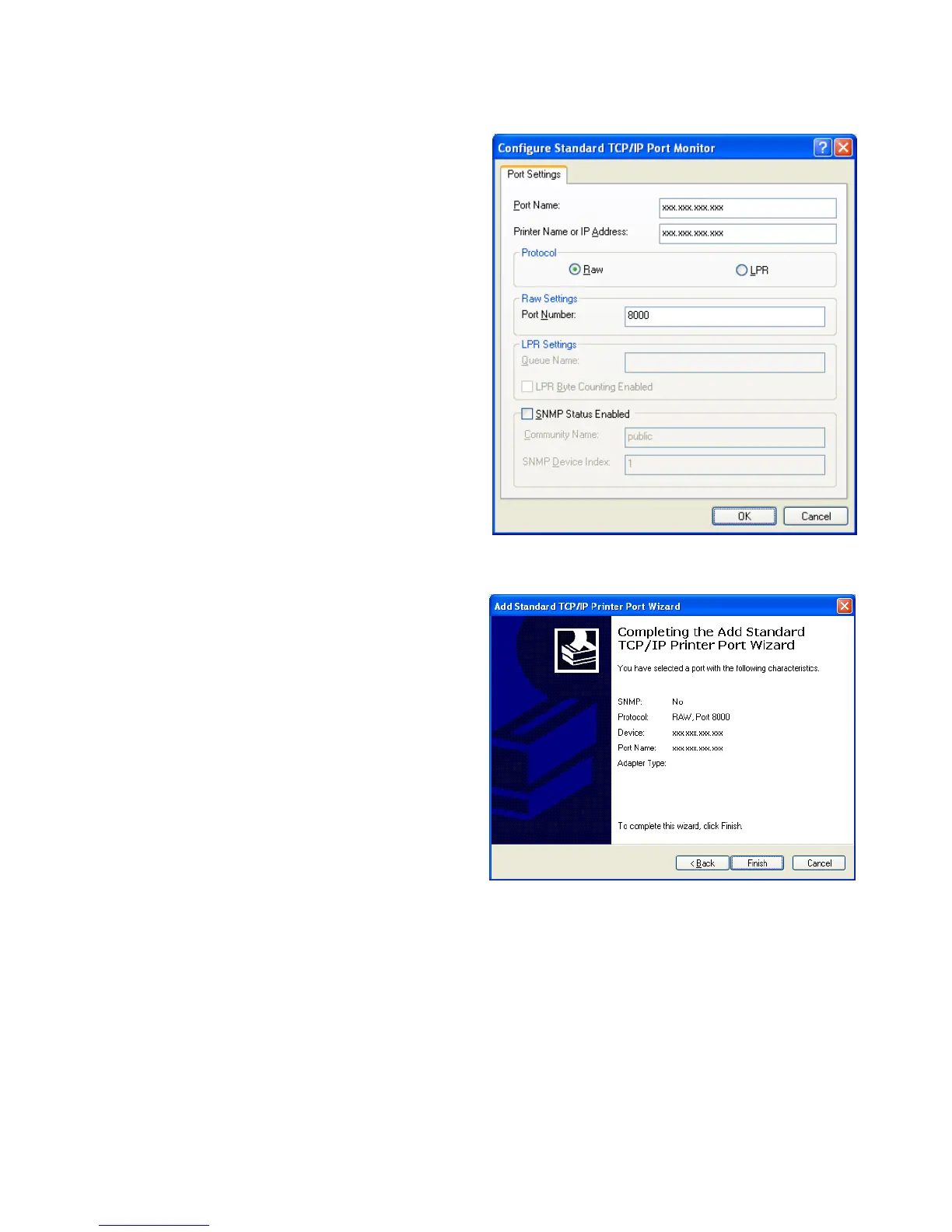

7. When you choose the “Raw” for the Protocol,
enter the printer SOCKET PORT as the “Port
Number” and click the [OK] button. The
default port number is “8000” or “9100”. Do
not check the “SNMP Status Enabled”
checkbox.
When you choose the “LRP” for the Protocol,
enter any queue name (e.g. “lpr”) and click the
[OK] button. Do not check the “LPR Byte
Counting Enabled” and “SNMP Status
Enabled” checkboxes.
Note: When the status monitor feature is used with the
bi-directional support, select the “Raw”.
[The default port number]
9100:B-FP series, B-FV series, B-EX6 series
8000:Other
8. Click the [Next] button, and [Finish] button.
9. When the “Add Standard TCP/IP Printer Port Wizard” is finished, a new port is added.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
