Toshiba B-SA4T User Manual

- 36 -
2.5 Installation under Windows XP/Server2003 (USB with Plug
& Play enabled)
1. Turn on the PC.
Note: Log on as the user with administrative privilege.
2. Turn on the printer, and connect it to the PC with a USB cable.
3. “USB DEVICE” is detected, and the “USB Print Support” is automatically installed.
4. After a while, new devices are detected.
New device names
B-SA4G, B-SA4G-CN, B-SA4T, B-SA4T-CN, B-SX4, B-SX4-CN, B-SX5, B-SX5-CN, B-SX6T-R,
B-SX8T-R, B-852-R, B-452-R, B-462-R, B-EX4T1-G, B-EX4T1-T, B-EX4T2-G, B-EX4T2-T,
B-EX4T2-H, B-EP2DL-G, B-EP4DL-G, B-EV4-G, B-EV4-T, B-SV4, B-FV4-G, B-FV4-T,B-FP3D,
B-EX6T1-G, B-EX6T1-T, B-EX6T3-G, B-EX6T3-T,B-EX4T3-H

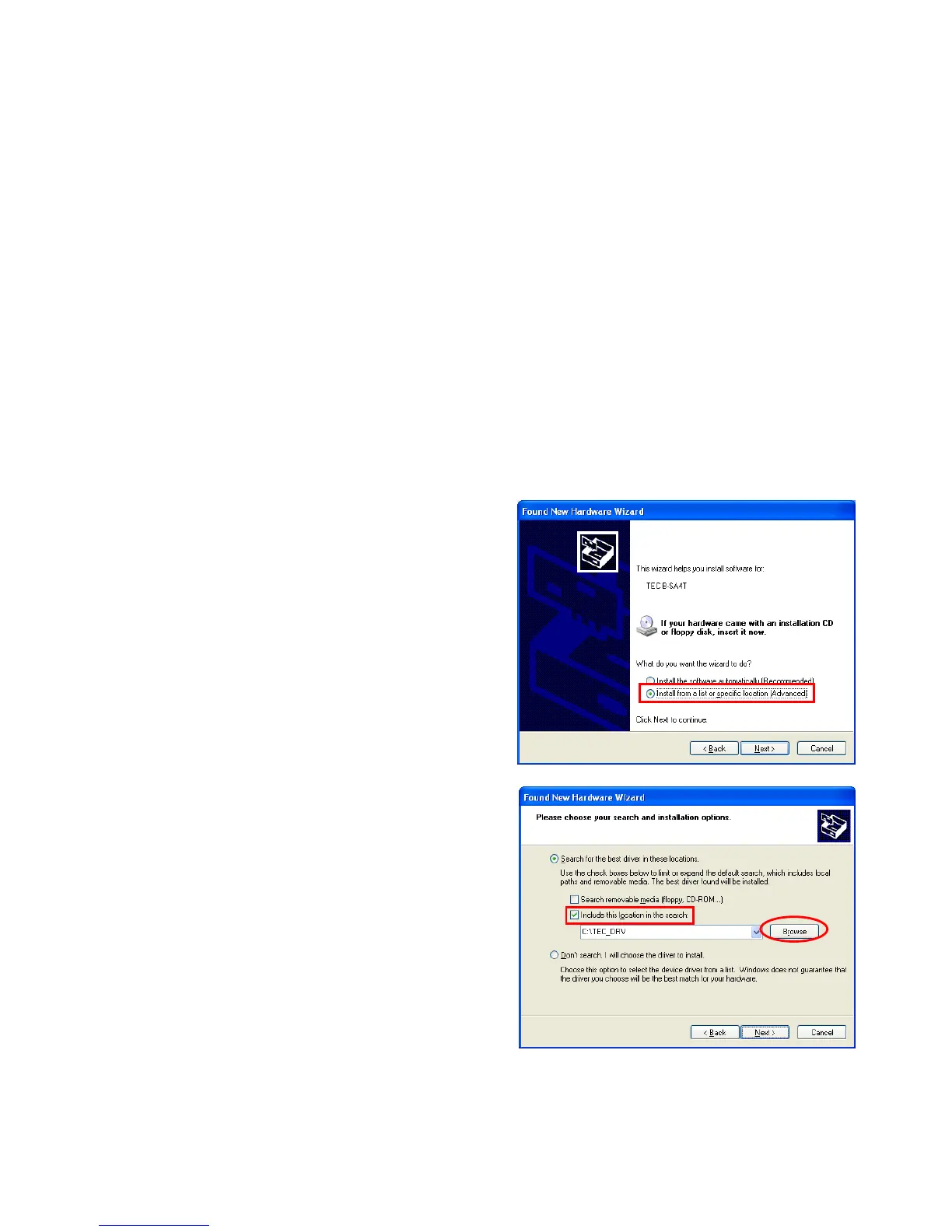

5. When the “Found New Hardware Wizard” is
displayed, select “Install from a list or specific
location [Advanced]” and click the [Next] button.
6. Select the “Search for the best driver in these
locations”, check the “Include this location in the
search” checkbox, and click the [Browse] button.
Specify the folder (C:\TEC_DRV) created in
Section 2.1, and click the [Next] button.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
