Toshiba B-SA4T User Manual

- 42 -
2.8 Installation under Windows XP/Server2003 (Parallel
interface with Plug & Play Enabled)
1. Connect the printer to the PC with a parallel interface cable.
2. Turn on the printer.
3. Set the printer parameters in the system mode.
B-SX4 Series and B-SX5 Series
CENTRO. MODE → ECP
PLUG & PLAY→ ON
B-SA4 Series, B-852-R, B-452-R, B-SX6T (305 dpi), B-SX8T (305 dpi), B-EX4 Series, B-EX6 Series
and B-462-R
PLUG & PLAY → ON
Note: For the parameter setting procedure, refer to Section 6.2 Parameter Setting on the Printer.
4. Turn on the PC
Note: Log on as the user with administrative privilege.

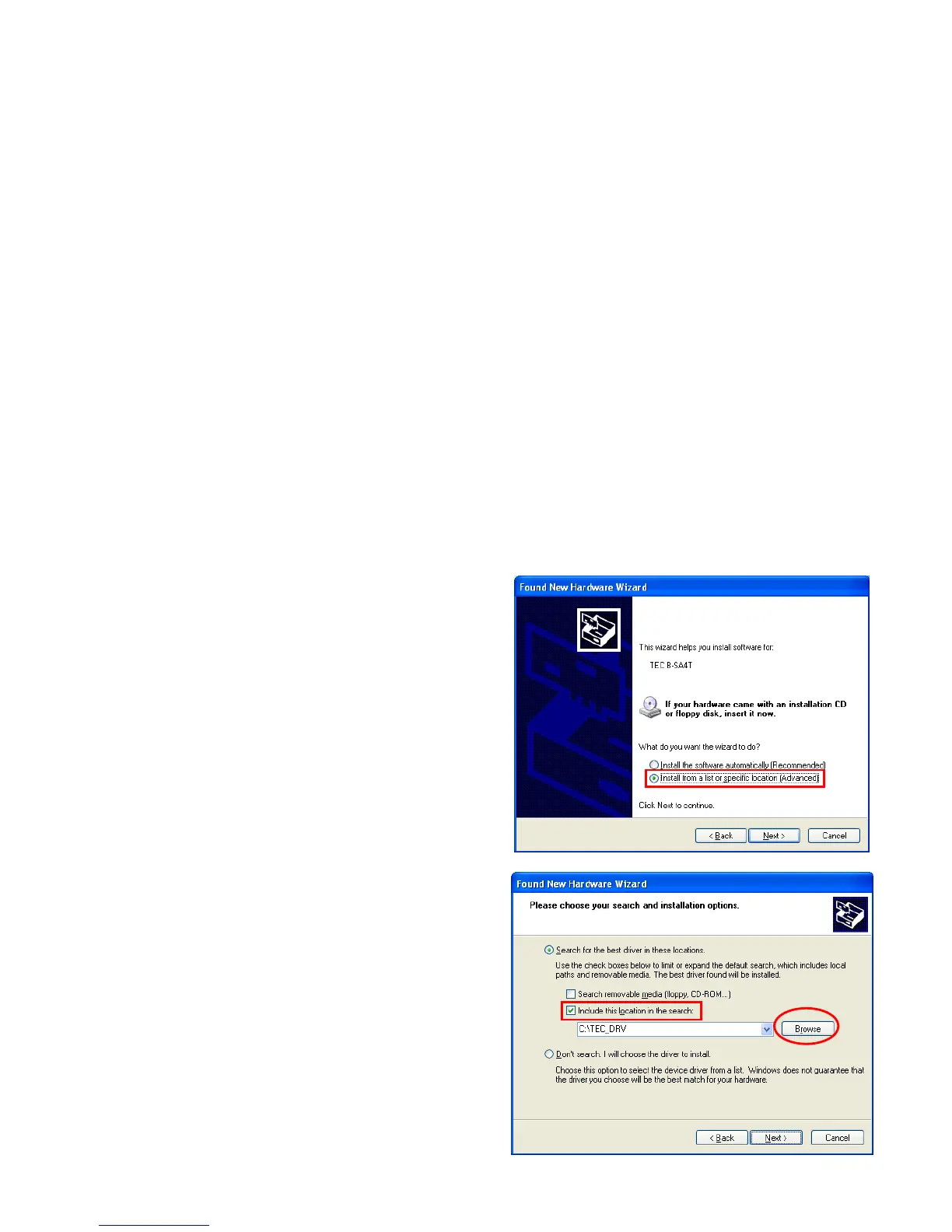

5. After the system is started, new hardware is
detected. When the “Found New Hardware
Wizard” is displayed, select the “Install from a list
or specific location (Advanced)”, then click the
[Next] button.
6. Select the “Search for the best driver in these
locations”, check the “Include this location in the
search” checkbox, then click the [Browse] button.
Specify the folder (C:\TEC_DRV) created in
Section 2.1, and click the [Next] button.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
