Toshiba B-SA4T User Manual

- 60 -
3.1.2 Preset

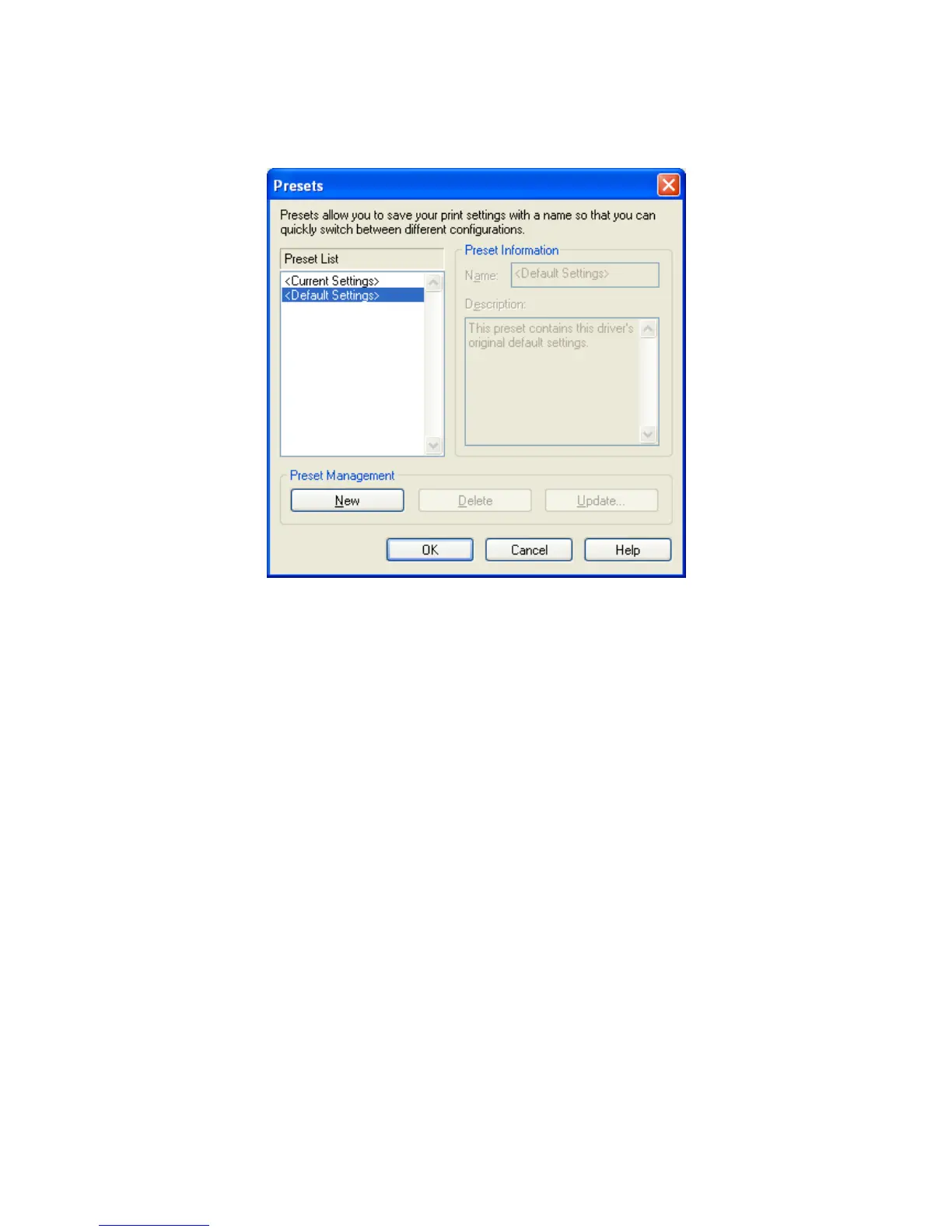

By clicking the [Manage] button in the Page Setup page, the following screen display will appear to allow you to
manage the printer settings with a name.
 Preset Management
 New
After configuring the necessary print settings for a selected stock, click the [New] button, name these print
settings to manage them as a preset, and enter a description of these settings in the “Description” box.
Click the [OK] button to save.
Settings saved:
[Page Setup] tab: Label size
Orientation
Effects
Advanced setting
[Graphics] tab Dithering
[Stock] tab Print method
Issue mode
Print speed
Fine adjustment
[Option] tab Graphic options
Print density adjustment
Feed adjustment
Multiple Part Print Area Settings
Ribbon Adjustments
 Delete
Clicking the [Delete] button enables deletion of a selected preset name. When the [OK] button is clicked,
the changes are saved.
 Update
To reflect the changes in the settings of the existing preset, select the preset name and click the [Update]
button. When the [OK] button is clicked, the changes are saved.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
