Toshiba C70-A Series Maintenance Manual

4 Replacement Procedures
3. While still holding down the wings, grasp the fingerprint scanner bracket by the top and
bottom edge and work it in the direction indicated in Figure 4.24 until the bracket
becomes loose.

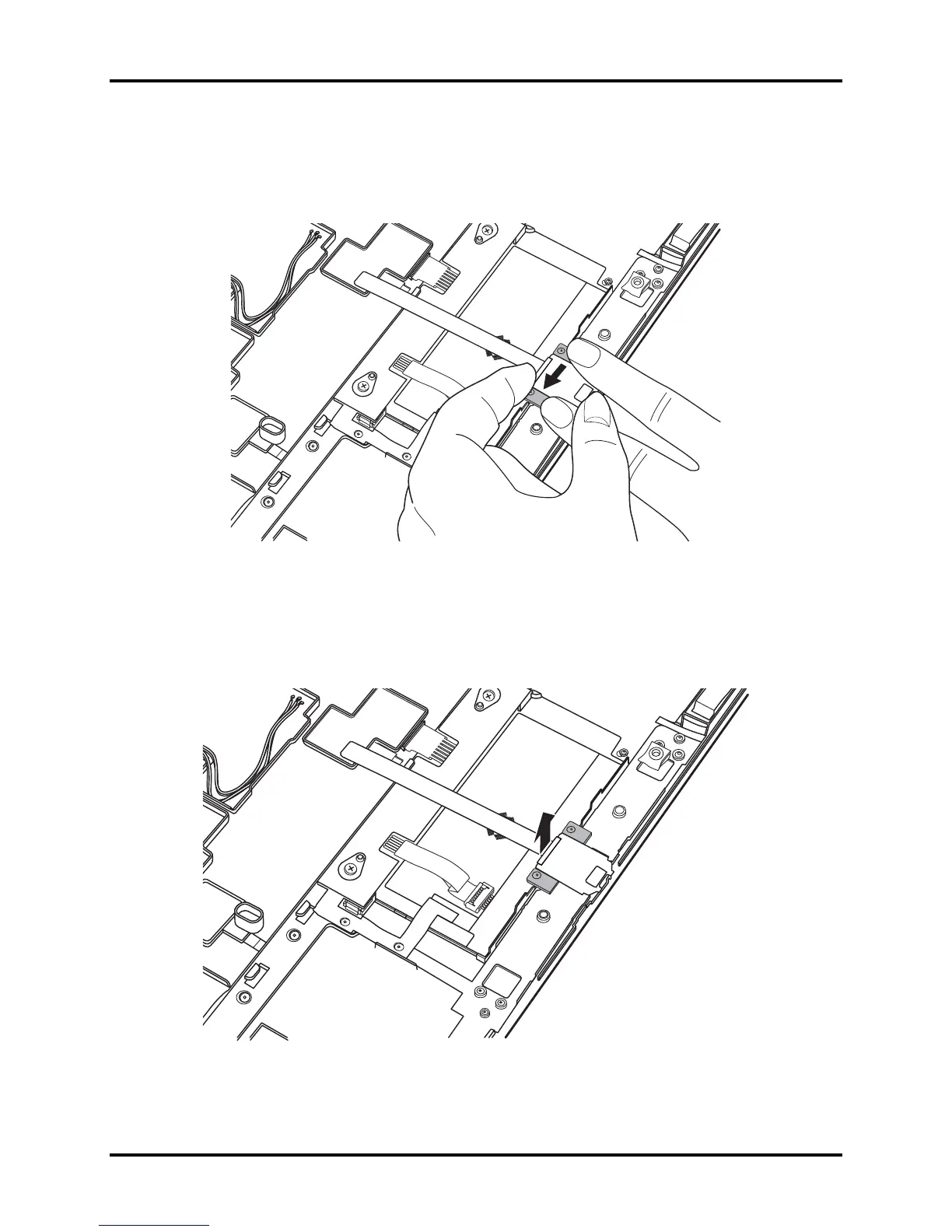

Figure 4.24 Working the fingerprint scanner bracket loose
4. Lift the edge of the fingerprint scanner bracket as shown in Figure 4.25, and remove it
from the system.
Figure 4.25 Removing the fingerprint scanner bracket from the logic upper assembly
Satellite A660/ProA660 Series Maintenance Manual 4-34

Toshiba C70-A Series Specifications

General

Processor	Intel Celeron, Pentium, or Core i3/i5/i7 (varies by model)
Storage	500GB or 1TB HDD (varies by model)
Graphics	Intel HD Graphics (varies by model)
Optical Drive	DVD SuperMulti Drive
Connectivity	Wi-Fi 802.11b/g/n, Bluetooth 4.0 (varies by model)
Ports	USB 3.0, USB 2.0, HDMI, VGA, headphone/microphone combo jack
