Toshiba C70-A Series Maintenance Manual

4 Replacement Procedures
4.28 LVDS Cable
Removing the LVDS Cable
Remove the LVDS cable according to the following procedures and Figure 4.53.
1. Disconnect the LVDS cable from the display assembly. Peel off and remove the LVDS
cable from the back of the LCD panel, taking care not to damage the LCD panel.

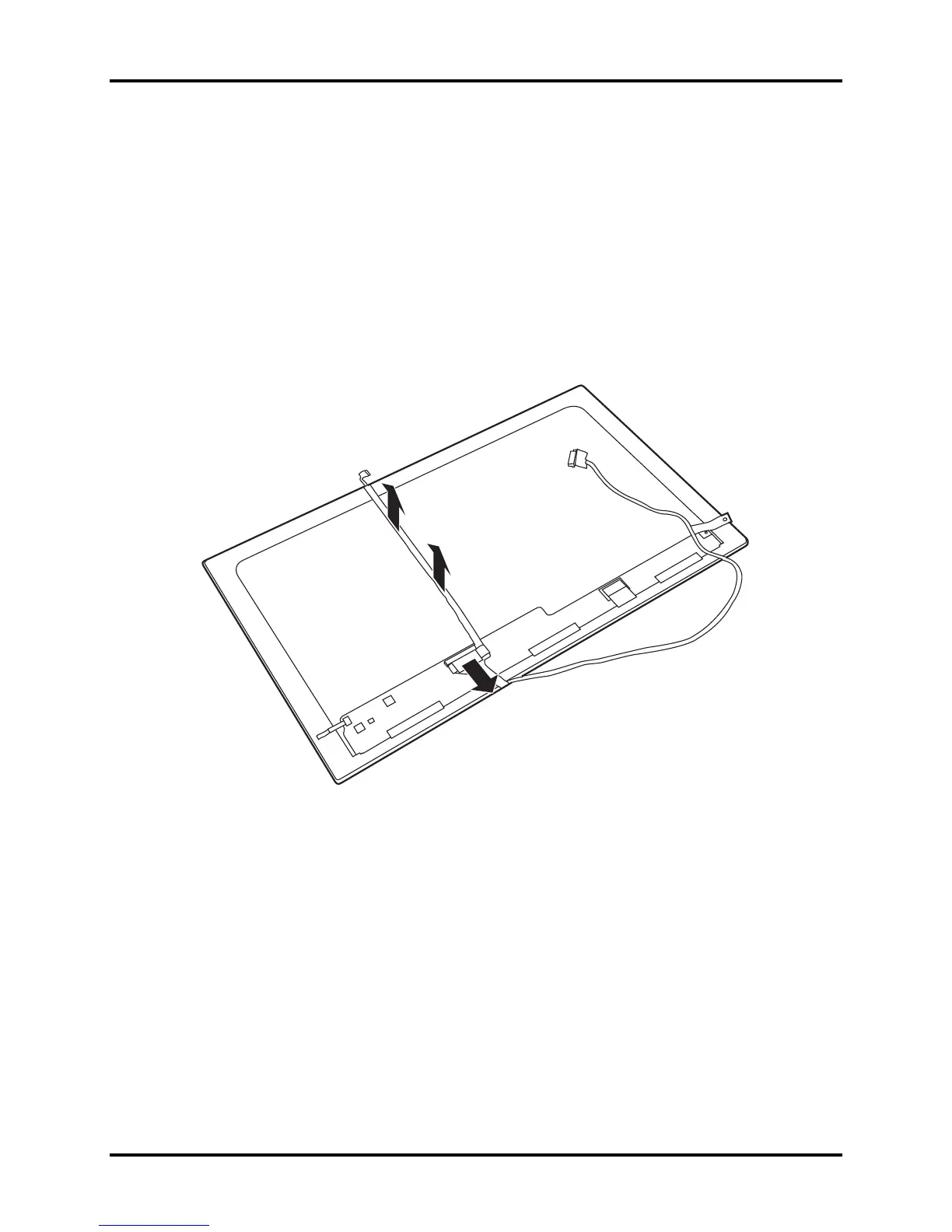

Figure 4.53 Removing the LVDS cable from the LCD panel
Installing the LVDS Cable
Install the LVDS cable according to the following procedures.
1. Place the LVDS cable in the correct position and adhere it to the LCD panel.
2. Connect the LVDS cable to the connector on the LCD panel.
Satellite A660/ProA660 Series Maintenance Manual 4-65

Toshiba C70-A Series Specifications

General

Processor	Intel Celeron, Pentium, or Core i3/i5/i7 (varies by model)
Storage	500GB or 1TB HDD (varies by model)
Graphics	Intel HD Graphics (varies by model)
Optical Drive	DVD SuperMulti Drive
Connectivity	Wi-Fi 802.11b/g/n, Bluetooth 4.0 (varies by model)
Ports	USB 3.0, USB 2.0, HDMI, VGA, headphone/microphone combo jack
