4 Replacement Procedures

4.24 LCD Panel

Removing the LCD Panel

Remove the LCD panel according to the following procedures and Figure 4.47 and 4.48.

1. Remove the four M2.5x5 screws securing the LCD panel to the display assembly.

M2.5x5*2

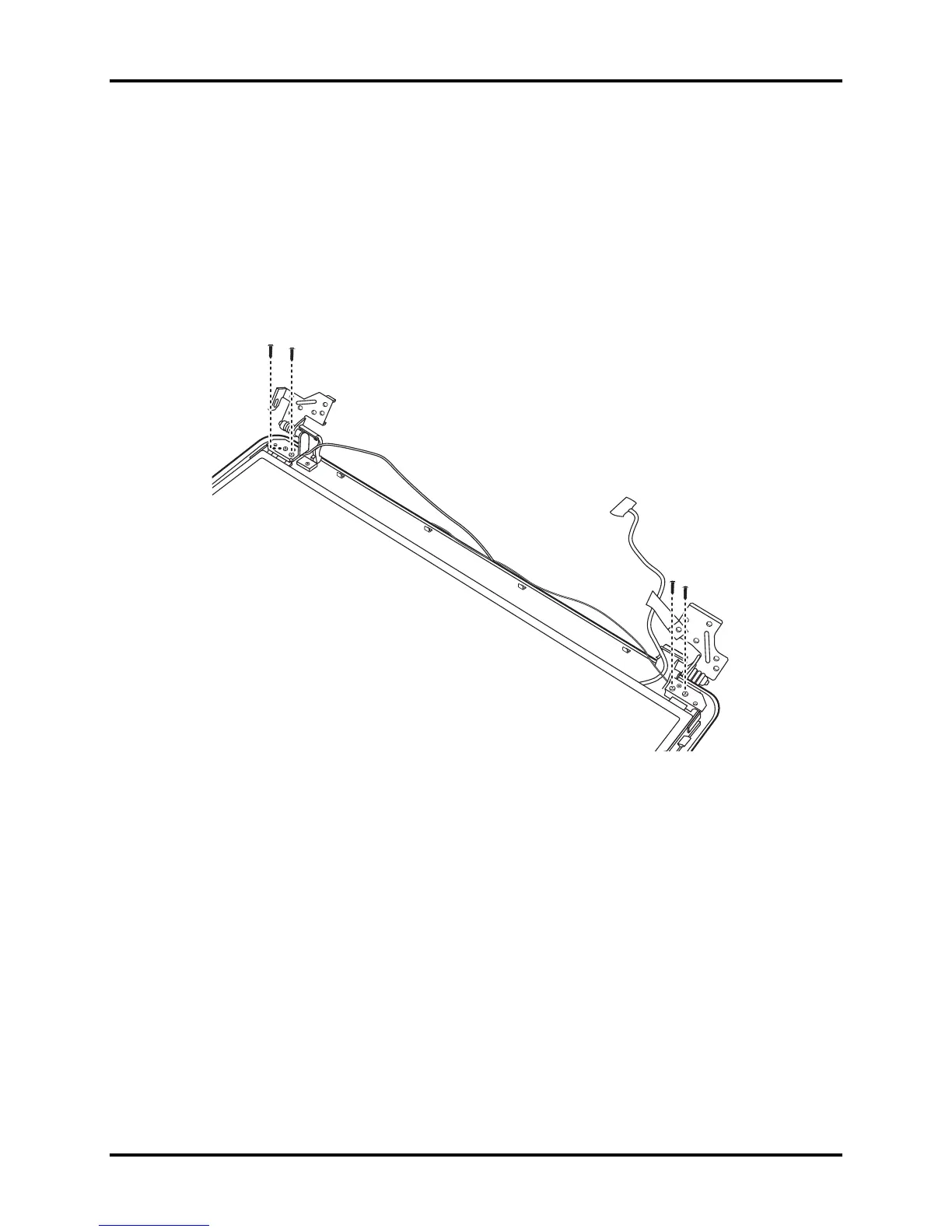

Figure 4.47 Removing the LCD panel from the display assembly

Satellite A660/ProA660 Series Maintenance Manual 4-59
