4 Replacement Procedures

4.27 LCD Panel Hinges

Removing the LCD Panel Hinges

Remove the LCD panel hinges according to the following procedures and Figure 4.52.

1. Remove the six M2x3 screws securing the LCD panel hinges to the LCD panel.

2. Remove the LCD panel hinges.

M2x3*3

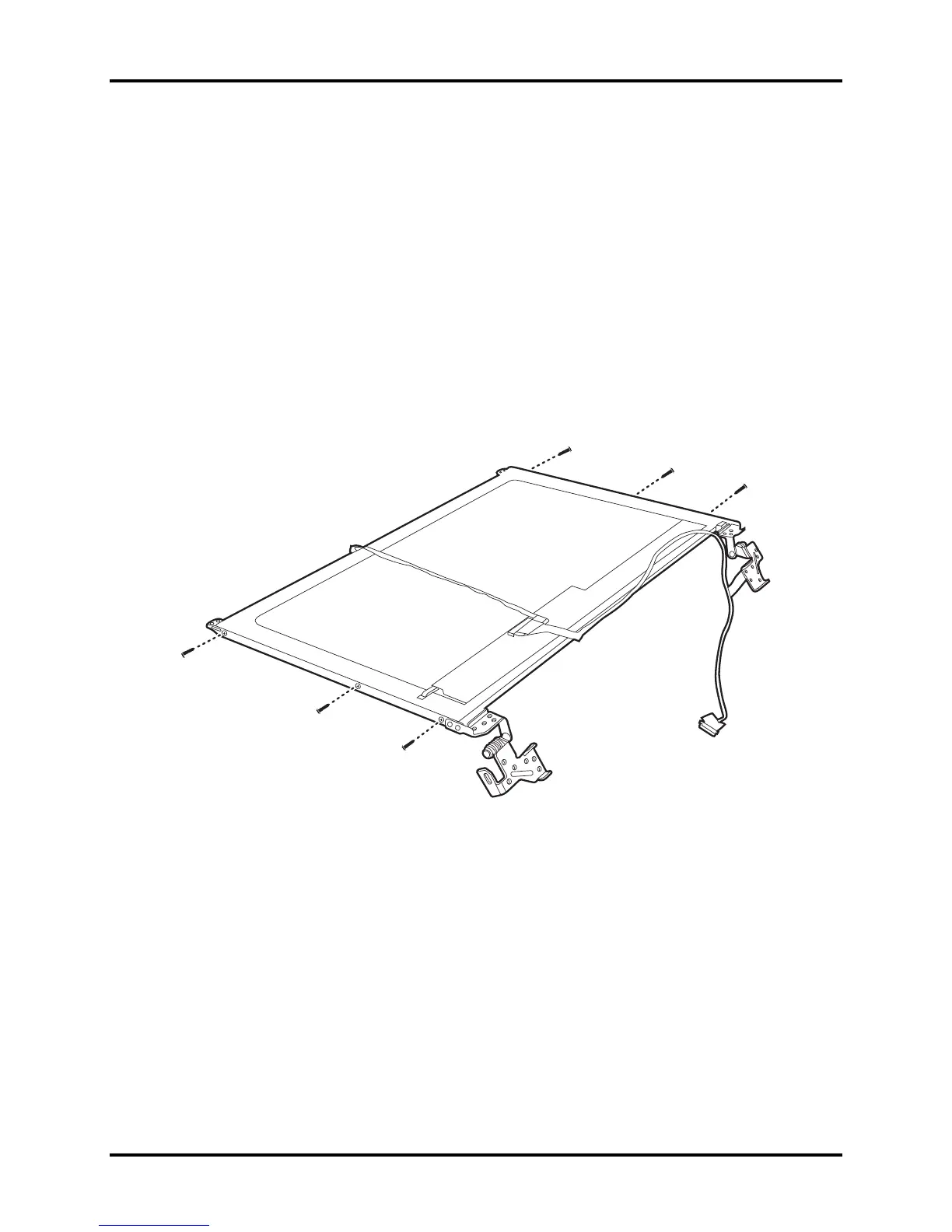

Figure 4.52 Removing the LCD panel hinges from the LCD Panel

Installing the LCD Panel Hinges

Install the LCD panel hinges according to the following procedures.

1. Place the LCD panel hinges in the correct position on the LCD panel and secure with

four M2x3 screws.

Satellite A660/ProA660 Series Maintenance Manual 4-64
