1 TROUBLESHOOTING FOR THE HARDWARE

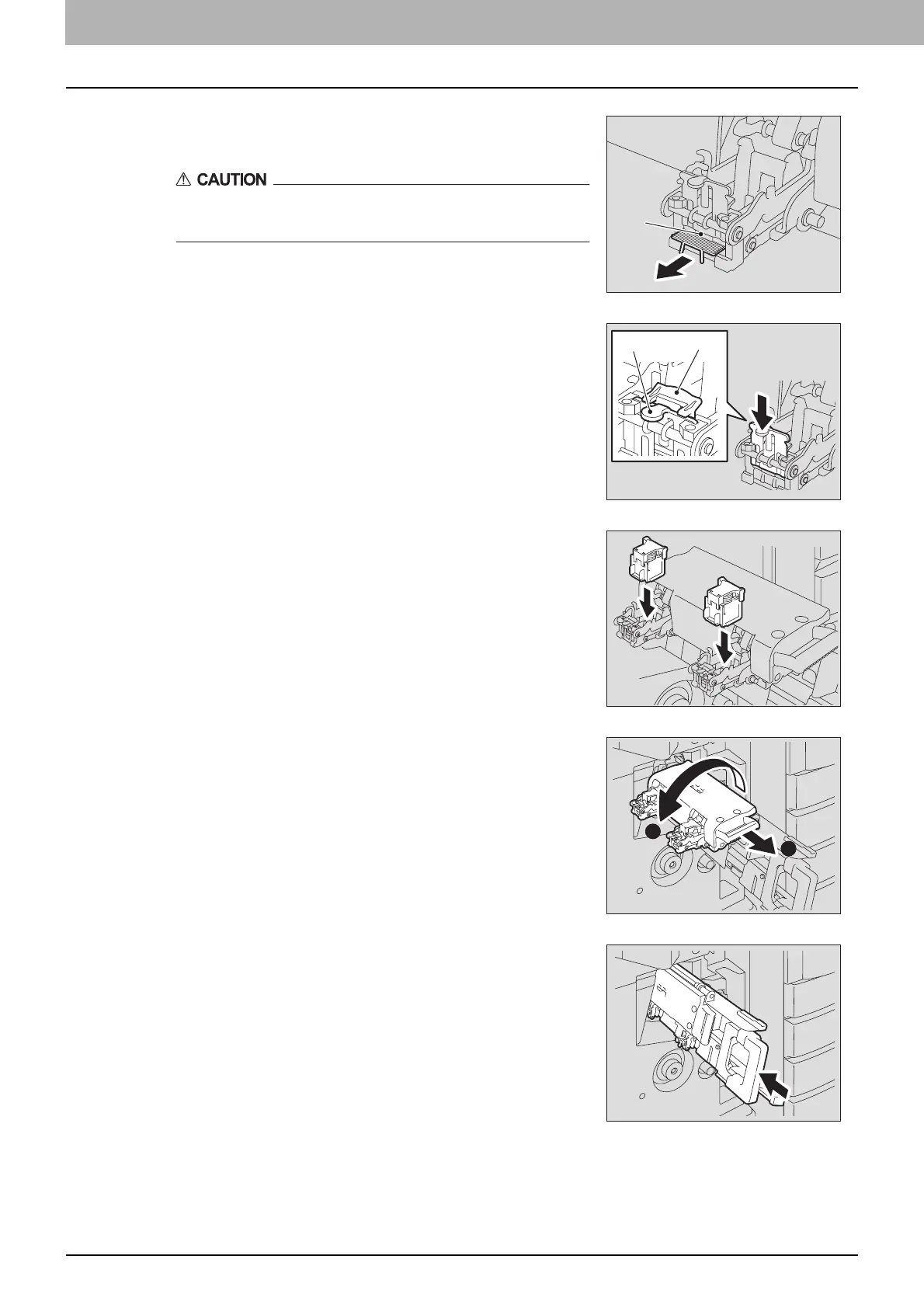

44 Clearing a Staple Jam
11
Make sure of the following two requirements before test stapling:
y The Finisher is securely attached to the equipment.
y A3, B4, A4-R, LD, or LT-R paper is set in the drawer.
6
Remove the jammed staples.
A: Stapling area
Do not touch the stapling area
The actual needle point could cause you personal injury.
7
Push the knob (2) to return it to its original position.
Make sure that the lever (1) is latched on the shutter.
8
Fit the staple cartridges.
Push down each cartridge until it is fixed with a click.
9
Unlock the stapler by pulling its handle toward you.
Then return the stapler to its original position.
10
Carefully insert the Saddle Stitch unit into the
Finisher.
A
12
1
2
To Next Page
