1.TROUBLESHOOTING FOR THE HARDWARE
Clearing a Paper Jam 19
1 TROUBLESHOOTING FOR THE HARDWARE
5
Return the transport guide, jam releasing cover, and automatic duplexing unit to their
original positions.
Be sure to securely close both sides of the jam releasing cover and the automatic duplexing unit.

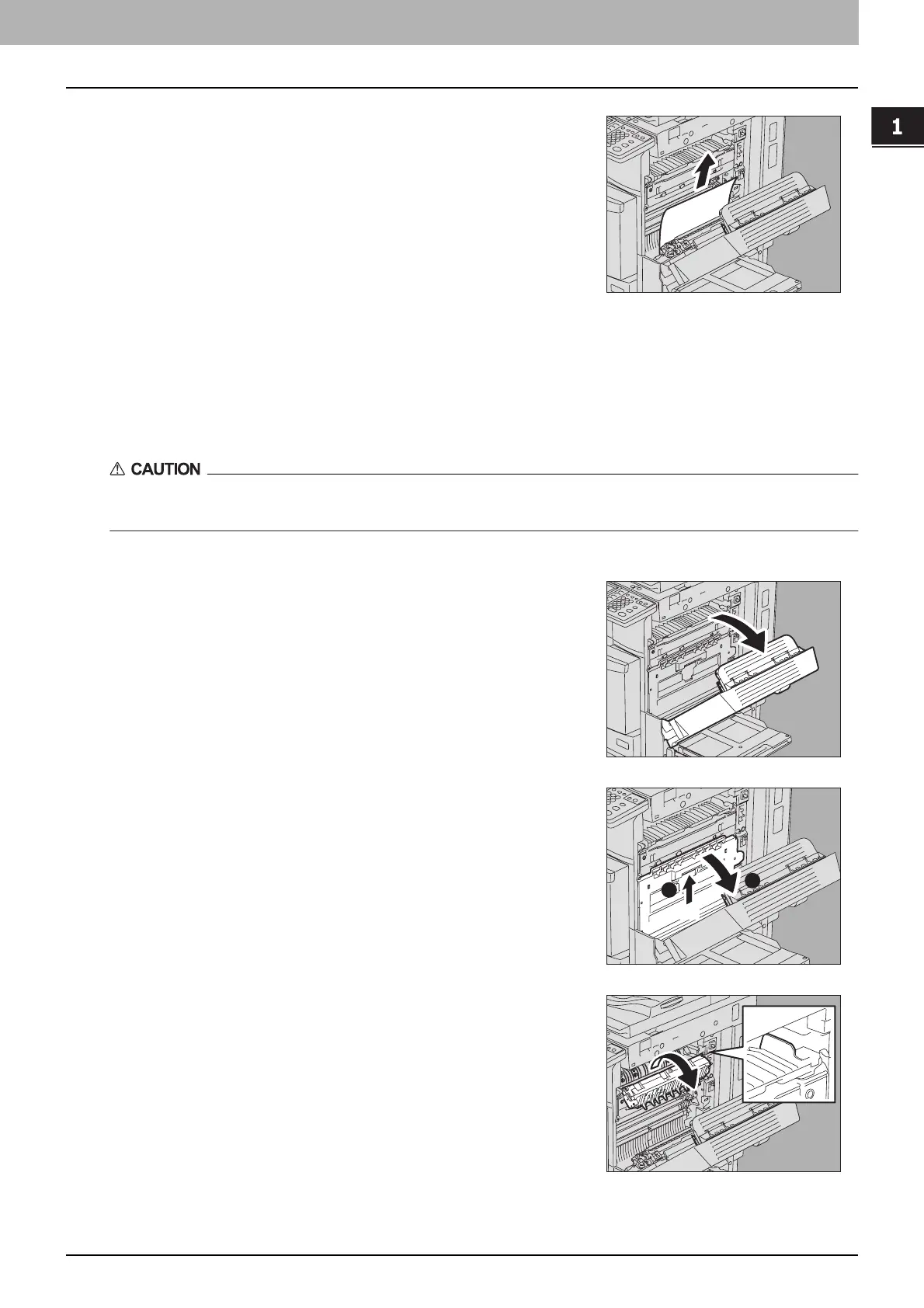

Paper jam in the fuser unit
Do not touch the fuser unit or the metal portion around it.
Since they are very hot, you could be burned or the shock could cause you to get your hand injured in the machine.
4
Remove the jammed paper.
1
Open the automatic duplexing unit.
2
Open the jam releasing cover.
Put your fingers into A, push it up to release the lock and open the jam
releasing cover.
3
Open the transport guide holding the green knob.
If no jammed paper can be found on the paper exit side, skip to step 8
and go on to step 9 and 10.
A
1
2
To Next Page
