e-STUDIO520/600/720/850 PAPER FEEDING SYSTEM March 2005 © TOSHIBA TEC
9 - 6
9.3 Operation
9.3.1 Operation of bypass pickup roller

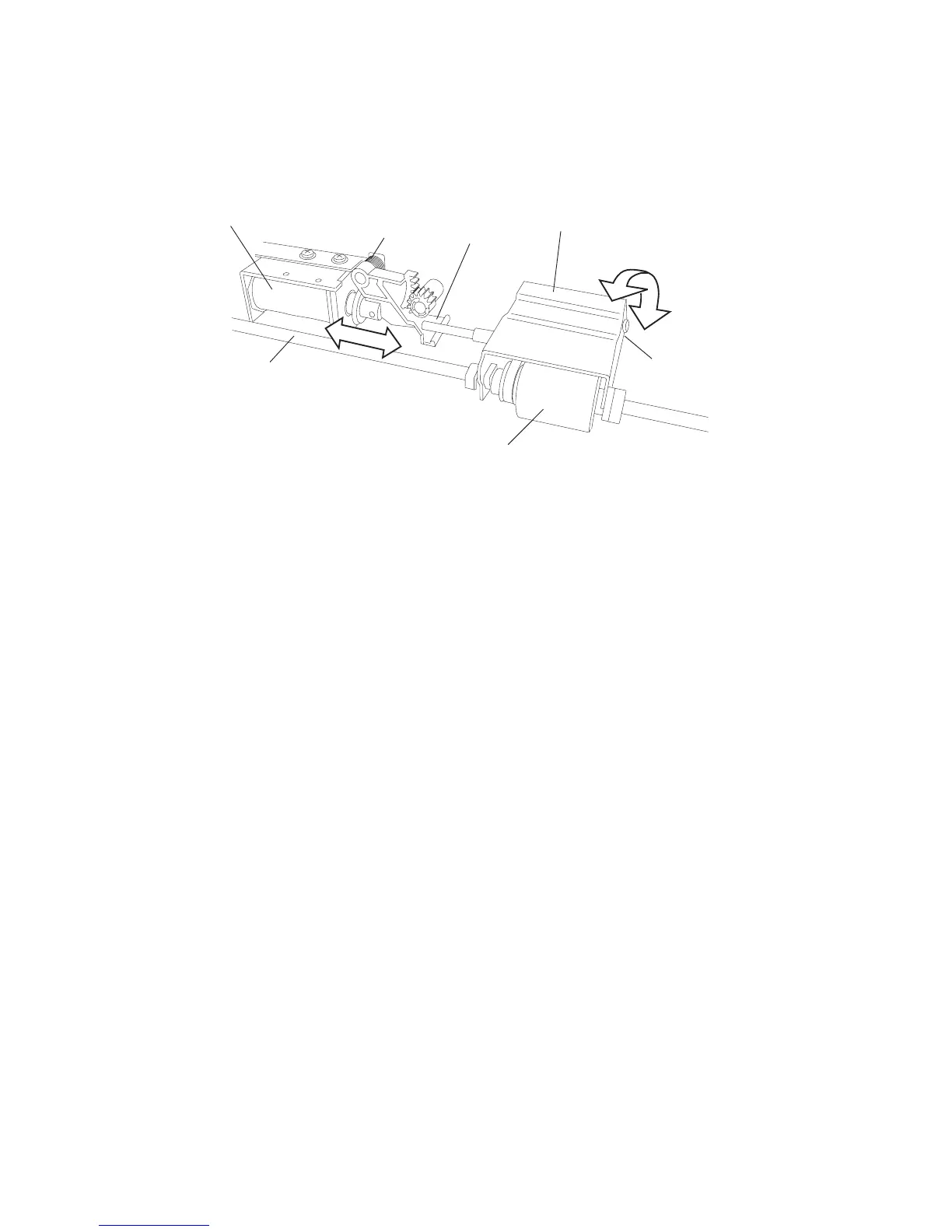

Fig.9-3
When the bypass pickup solenoid (SOL3) is turned ON, the plunger is pulled and the lever is revolved
and brought down. The pickup arm, which is linked with the lever, is also brought with the lever by its
own weight. When the bypass pickup solenoid (SOL3) is turned OFF, the pickup arm is brought up by
the spring force.
The driving force transmitted through the bypass feed clutch (CLT4) is also transmitted to the bypass
feed roller through the shaft and then to the bypass pickup roller through the timing belt. The roller is
rotated by this driving force.
Spring
Shaft
Pickup arm
Bypass pickup solenoid
Bypass pickup roller
Lever
Bypass feed roller
