150Mbps Wireless AP/Client Router User Guide
91
There are two submenus under the IP &MAC Binding menu: Binding Settings and ARP List.
Click any of them, and you will be able to scan or configure the corresponding function. The
detailed explanations for each submenu are provided below.
4.14.1 Binding Settings

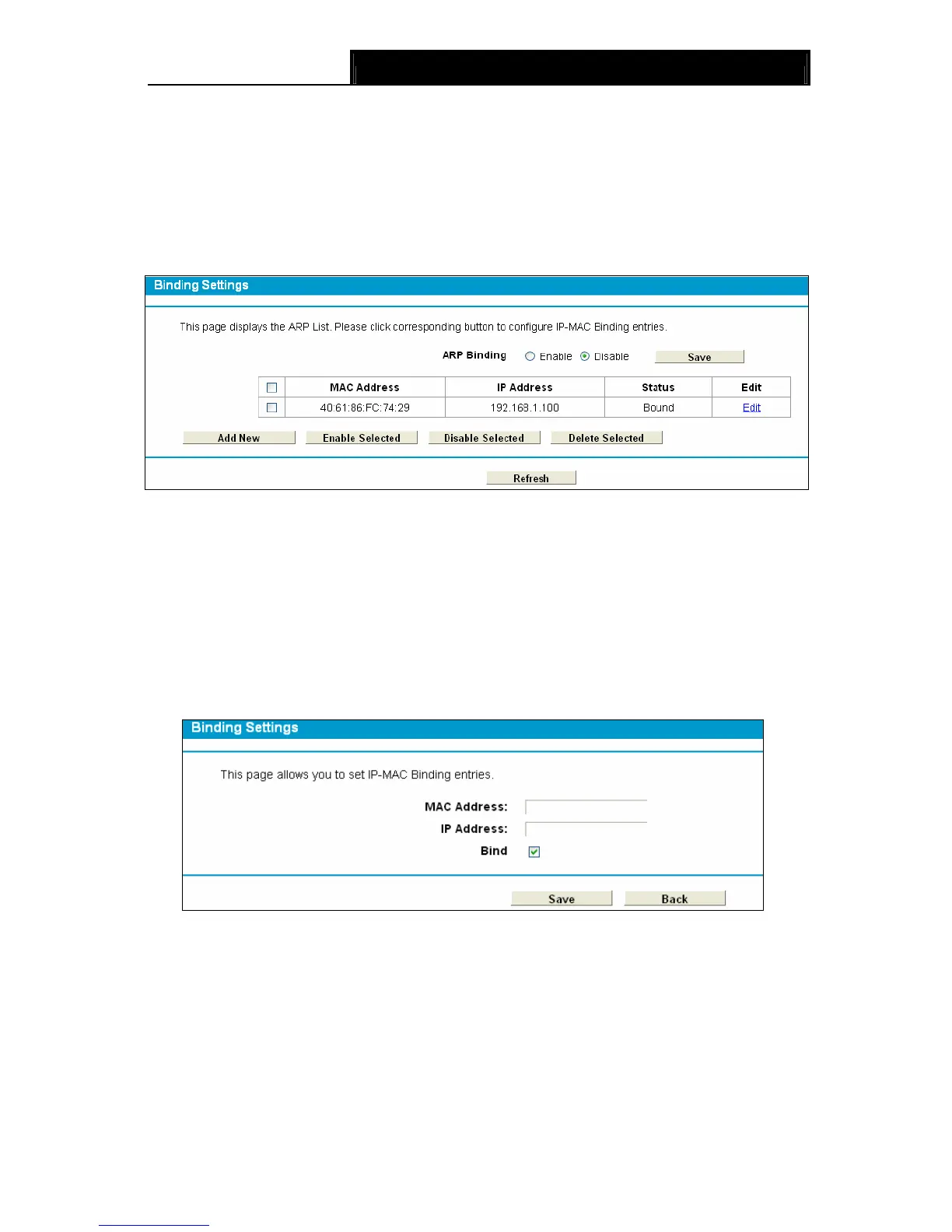

This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire (shown in
Figure 4-88).
Figure 4-88
¾ MAC Address: The MAC address of the controlled computer in the LAN.
¾ IP Address: The assigned IP address of the controlled computer in the LAN.
¾ Bound: Check this option to enable ARP binding for a specific device.
¾ Edit: To modify or delete an existing entry.
When you want to add or modify an IP & MAC Binding entry, you can click the Add New button or
Edit button, and then you will go to the next page. This page is used for adding or modifying an IP
& MAC Binding entry (shown in
Figure 4-89).
Figure 4-89
To add IP & MAC Binding entries, follow the steps below.
1. Click the Add New button as shown in Figure 4-88.
2. Enter the MAC Address and IP Address.
3. Select the Bind checkbox.
4. Click the Save button to save it.
