150Mbps Wireless AP/Client Router User Guide
90

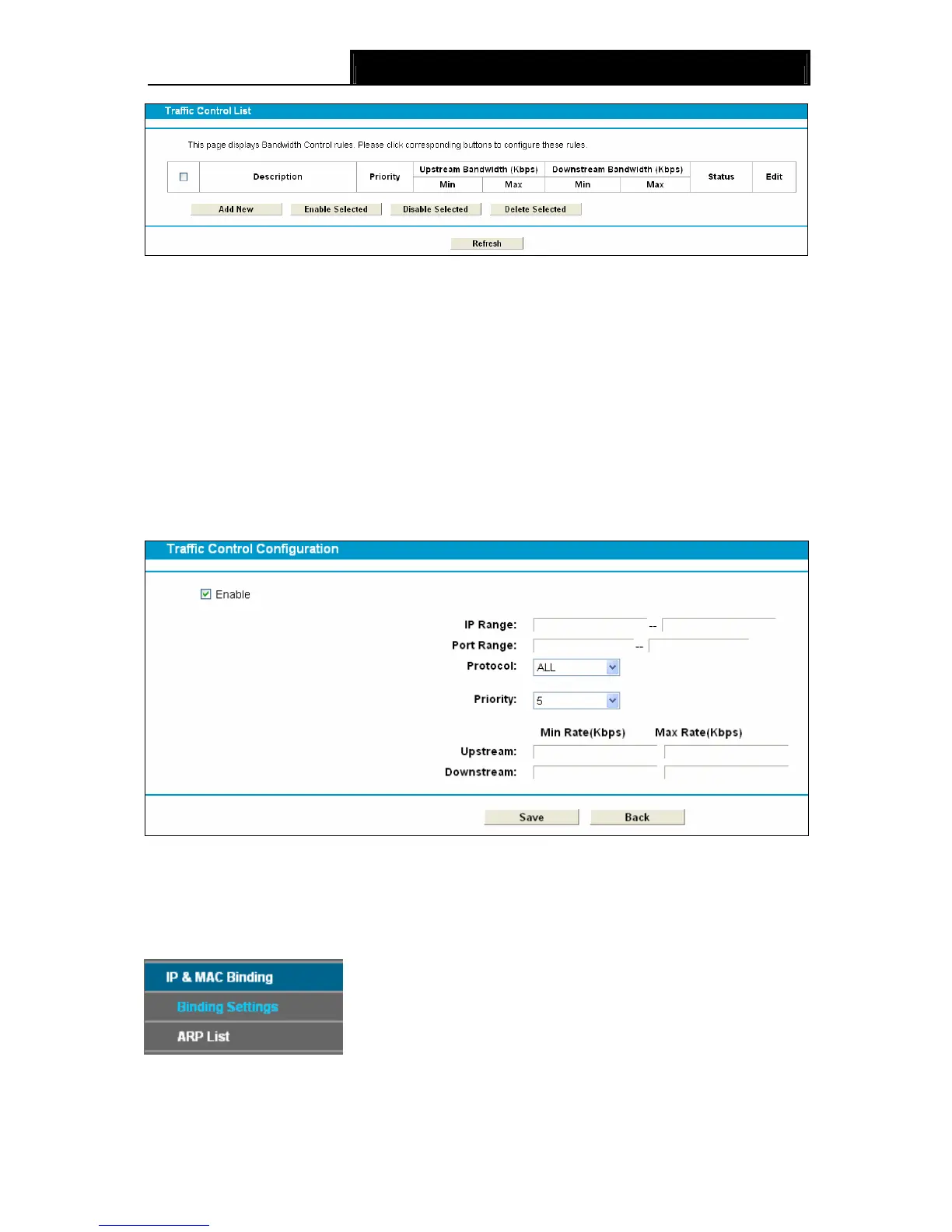

Figure 4-86
¾ Description: This is the information about the rules such as address range.
¾ Upstream Bandwidth: This field displays the max and mix upload bandwidth through the
WAN port, the default is 0.
¾ Downstream Bandwidth: This field displays the max and mix download bandwidth through
the WAN port, the default is 0.
¾ Edit: Click Edit to modify the rule.
To add/modify a Bandwidth Control rule, follow the steps below.
1. Click Add New shown in Figure 4-86, you will see a new screen shown in Figure 4-87.
2. Enter the information like the screen shown below.
Figure 4-87
3. Click the Save button.
4.14 IP&MAC Binding
