150Mbps Wireless AP/Client Router User Guide
21
4.4.1 WAN Settings
Choose “Network”Æ“WAN Settings”, and you will see the WAN Port Information Table in the
screen similar to Figure 4-2, which describes the WAN port settings and the relevant manipulation
to each interface. There are five different configurations for the connection types, which are Static
IP, Dynamic IP, PPPoE, IPoA, and Bridge. You can select the corresponding types according to
your needs.

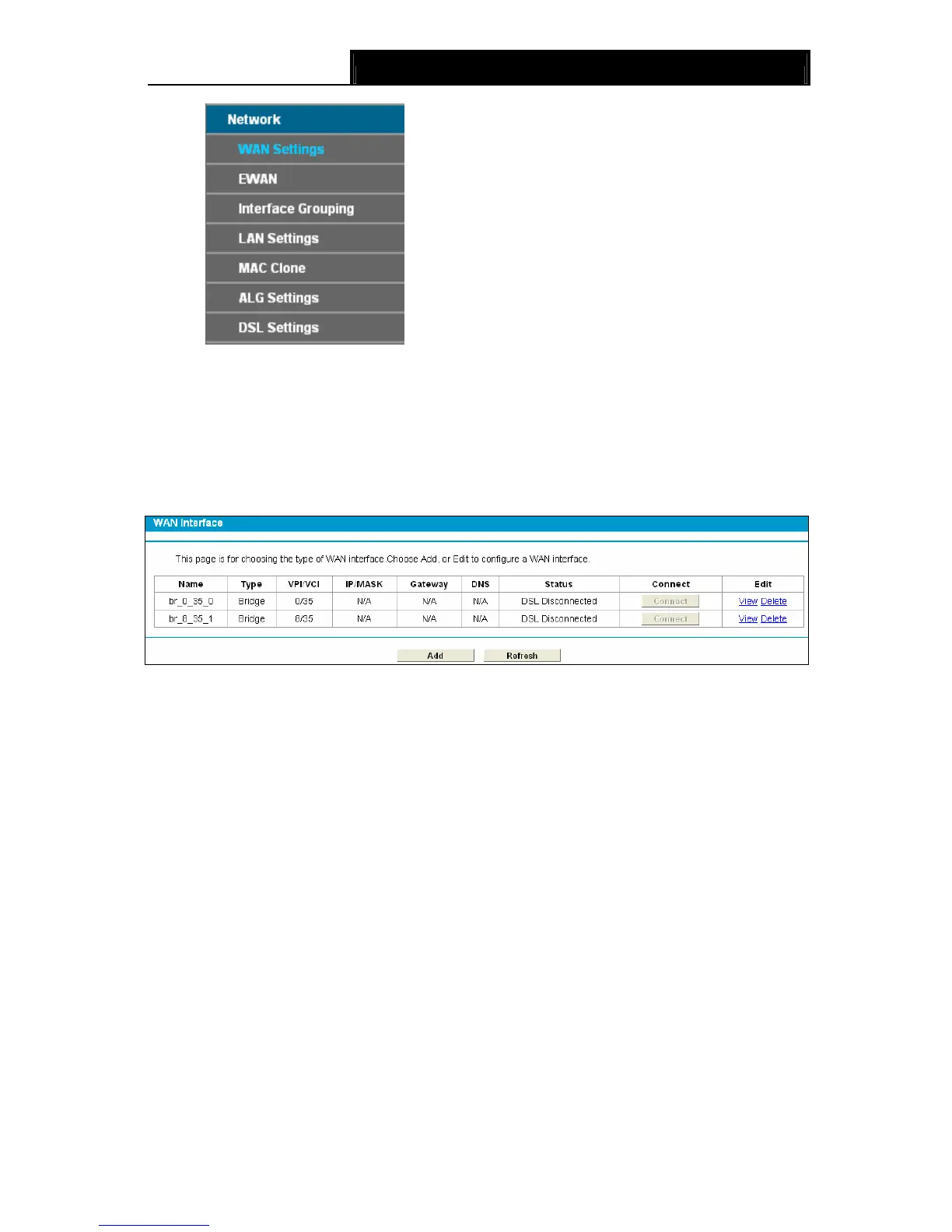

Figure 4-2
Click Add to add a new entry, you can configure the parameters for ATM and WAN Service in the
next screen (shown in Figure 4-3).
