150Mbps Wireless AP/Client Router User Guide
30

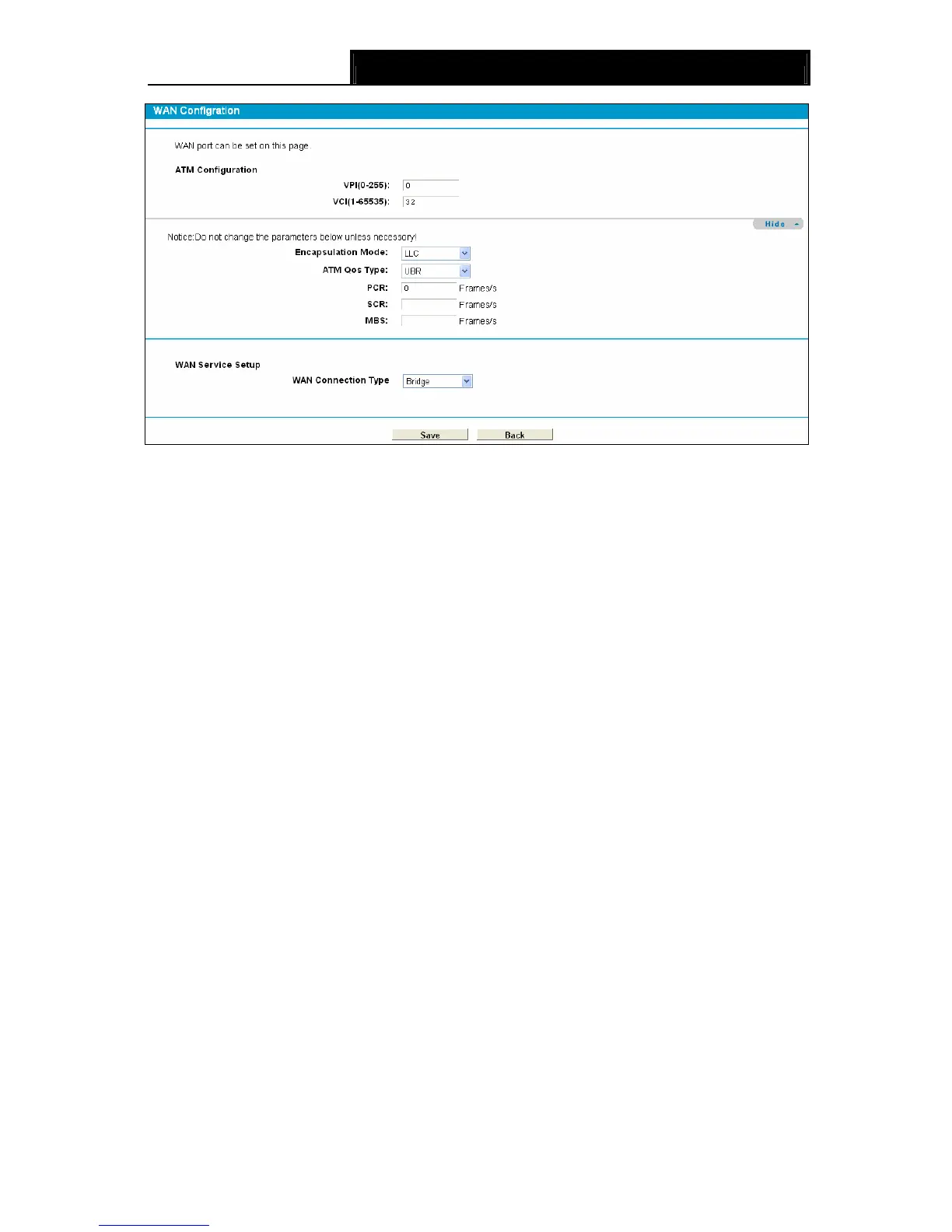

Figure 4-9
)
Note:
After you finish the Internet configuration, please click Save to make the settings take effect.
4.4.2 EWAN
Choose “NetworkÆEWAN”, and you will see the Ethernet WAN Interface screen similar to
Figure 4-10. There are there different configurations for the connection types, which are Dynamic
IP, Static IP and PPPoE. You can select the corresponding types according to your needs.
)
Note:
1) EWAN and DSL interface can not be used concurrently. If the EWAN Interface had configured,
you cannot configure any other WAN service over the DSL Interface until the EWAN Interface
is deleted.
2) If EWAN function is be enabled, LAN4/WAN port of the Modem Router changes to be WAN
port which can be connected to the cable, VDSL or Fiber modem.
