TP-Link TD-VG3631 User Manual

150Mbps Wireless AP/Client Router User Guide
70

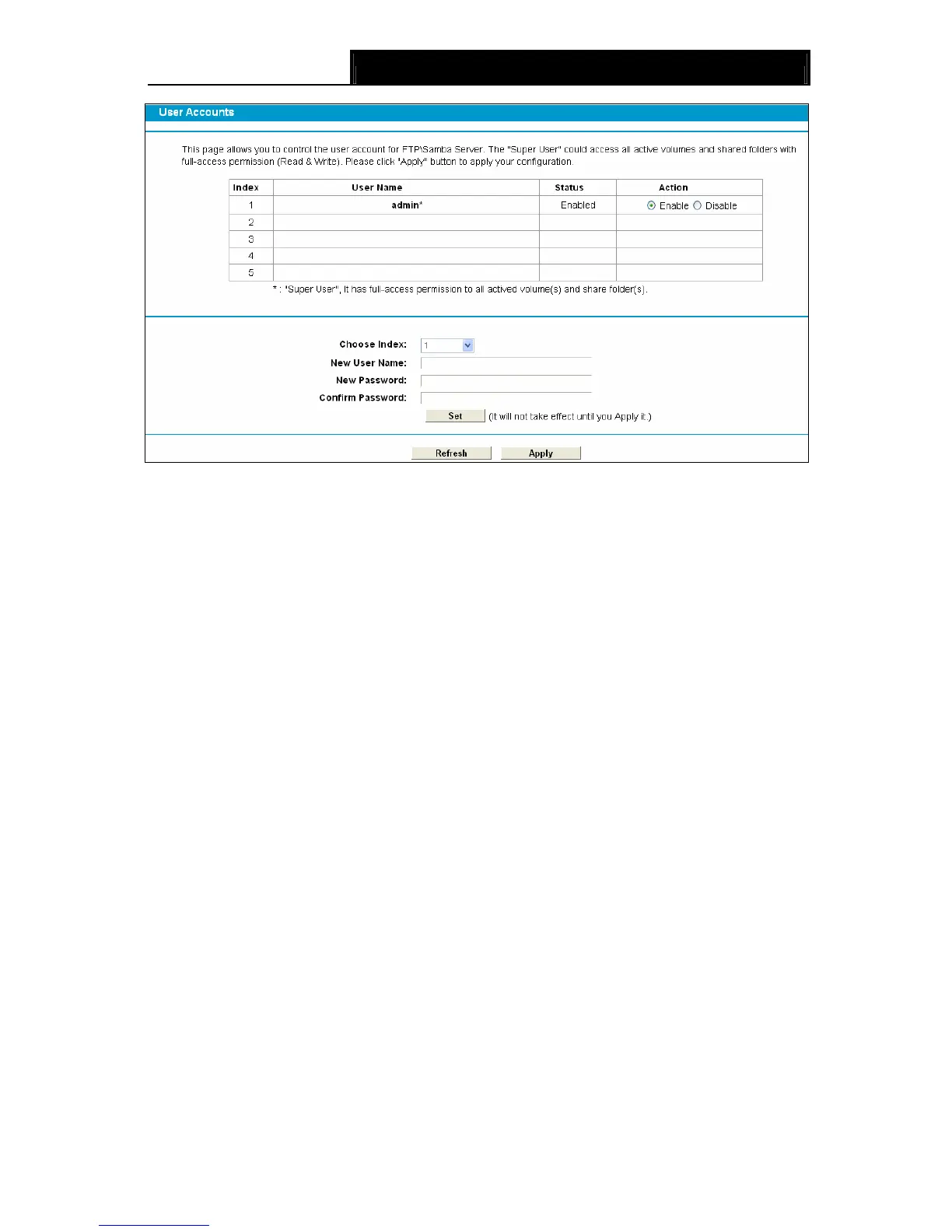

Figure 4-57
To add a new user account, please follow the steps below:
1. Choose the index from the drop-down list of Choose Index.
2. Self-define a New User Name.
3. Enter the password in the New Password field.
4. Re-enter the password in the Confirm Password field.
5. Click the Set button, and then a new entry will be added in the table.
6. Click the Apply button to apply your settings.
Click the Refresh button to refresh this page immediately.
4.8.3 Storage Sharing
Choose menu “USB Settings” → “Storage Sharing”, you can configure a USB disk drive
attached to the Modem Router and view volume and share properties on this page as shown
below.

TP-Link TD-VG3631 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
USB ports quantity	2
Management platform	HTTP/Telnet/CLI/SNMP/SSL
Filtering description	MAC / IP / Packet / URL
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare, UNIX, Linux
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Routing protocols	RIP-1, RIP-2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	177 mm
Width	256 mm
Height	51 mm
Weight	- g
