150Mbps Wireless AP/Client Router User Guide
49
Group Key Update Period - Specify the group key update interval in seconds. The value
should be 30 or above. Enter 0 to disable the update.
Be sure to click the Save button to save your settings on this page.

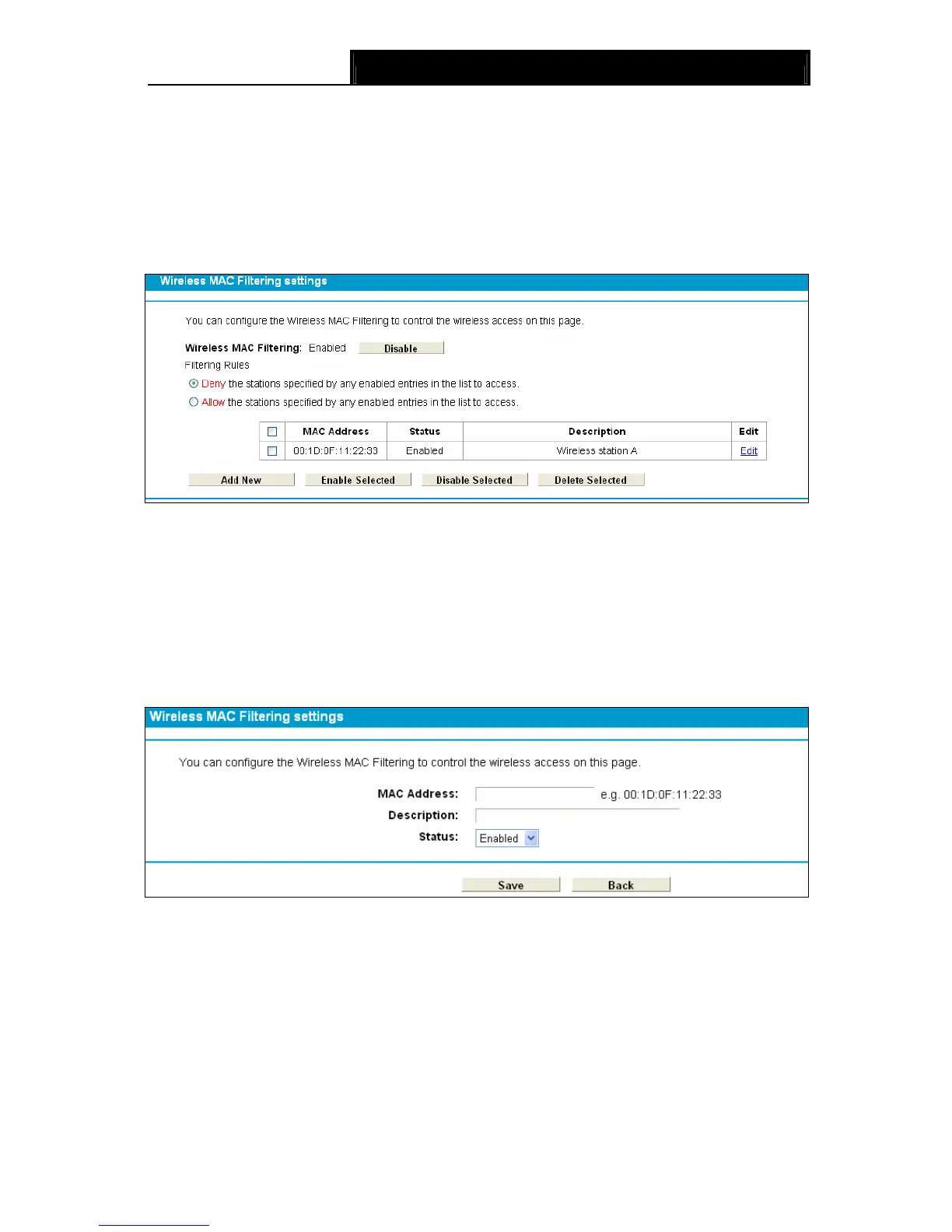

4.6.4 Wireless MAC Filtering
Choose menu “WirelessÆMAC Filtering”, you can control the wireless access by configuring
the Wireless MAC Filtering function, shown in Figure 4-31.
Figure 4-31
To filter wireless users by MAC Address, click Enable. The default setting is Disabled.
¾ MAC Address: The wireless station's MAC address that you want to filter.
¾ Status: The status of this entry, either Enabled or Disabled.
¾ Description: A simple description of the wireless station.
To Add a Wireless MAC Address filtering entry, click the Add New button. The following page will
appear, shown in Figure 4-32:
Figure 4-32
To add or modify a MAC Address Filtering entry, follow these instructions:
1. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC
Address is XX:XX:XX:XX:XX:XX (X is any hexadecimal digit). For example:
00:1D:0F:11:22:33.
2. Give a simple description for the wireless station in the Description field. For example:
Wireless station A.
3. Select Enabled or Disabled for this entry on the Status drop-down list.
