TP-Link TD-VG3631 User Manual

150Mbps Wireless AP/Client Router User Guide
14

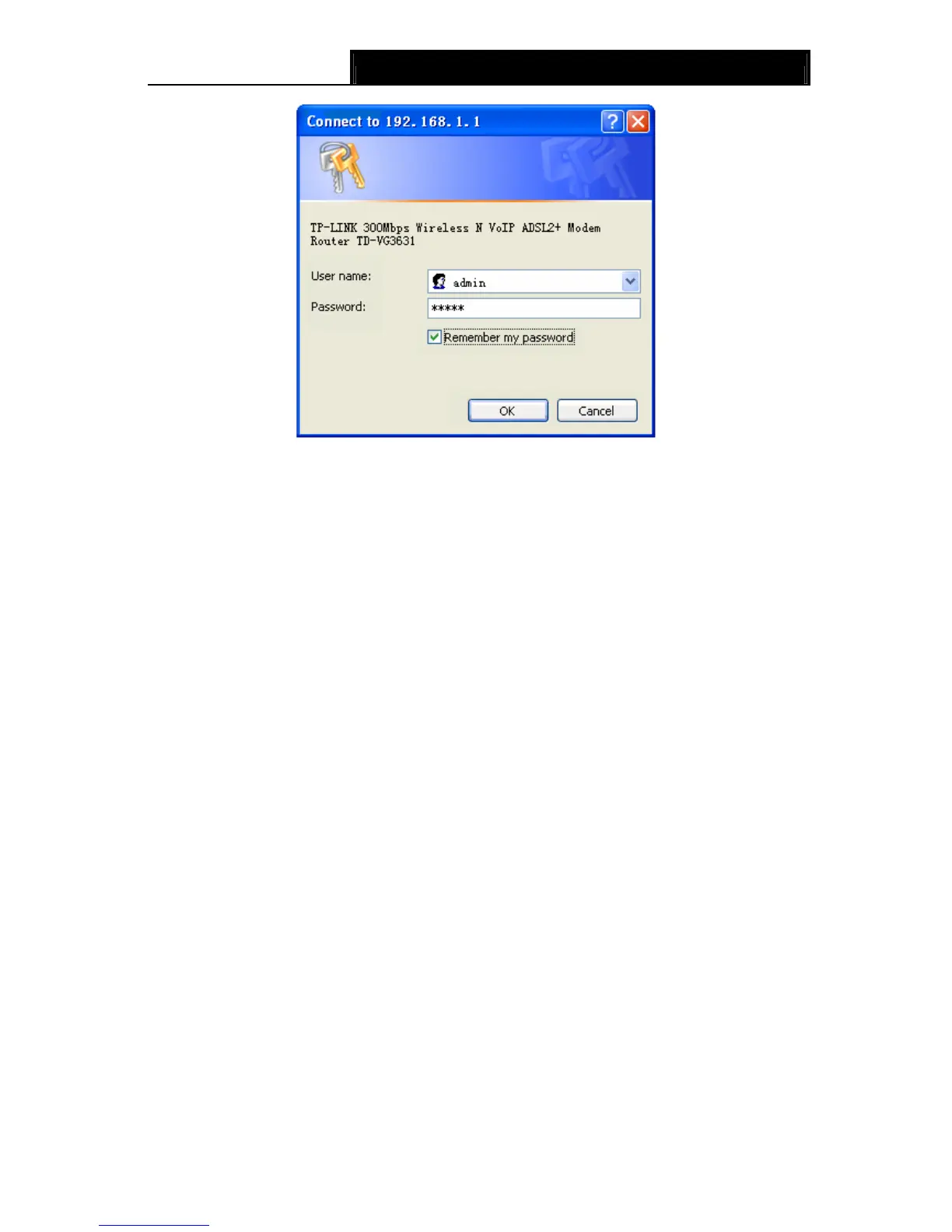

Figure 3-8
)
Note:
1) Do not mix up the user name and password with your ADSL account user name and password
which are needed for PPP connections.
2) If the above screen does not pop up, it means that your Web-browser has been set to a proxy.
Go to Tools menu→Network→LAN Settings, in the screen that appears, cancel the Using
Proxy checkbox, and click OK to finish it.
2. After your successful login, you will see the Login screen as shown in Figure 3-9. Click Quick
Setup menu to access Quick Setup Wizard.

TP-Link TD-VG3631 Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
USB ports quantity	2
Management platform	HTTP/Telnet/CLI/SNMP/SSL
Filtering description	MAC / IP / Packet / URL
Compatible operating systems	Windows 98SE, NT, 2000, XP, Vista, 7\\r MAC OS\\r NetWare, UNIX, Linux
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Routing protocols	RIP-1, RIP-2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	177 mm
Width	256 mm
Height	51 mm
Weight	- g
