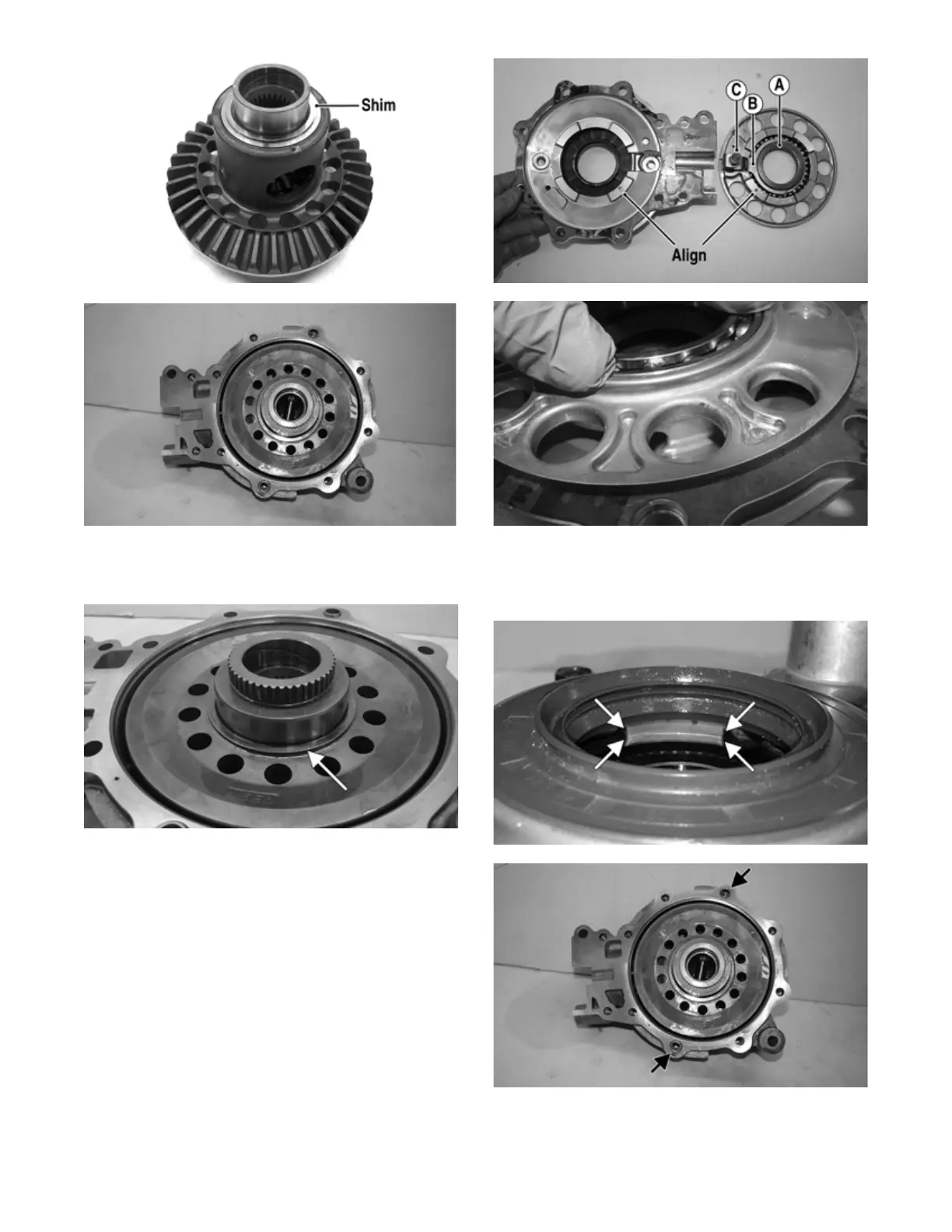

2. Place the selected (end-play) shim, chamfered side
toward the gear (if applicable), onto the cover side of
the ring gear.
PK208A
NOTE: The spider and ring gear assembly must be
replaced as a complete unit.
3. Place the differential lock coupler (A) into the fork
(B); then install the differential lock fork shaft (C)
into the bearing flange. Ensure the alignment pin
found in the bearing flange aligns with the recess in
the differential cover. Place the cover onto the bear-
ing flange.
PK223A
PK224
4. Verify the bearing flange is properly aligned with the
different cover and fully seated. With the two dowel
pins in place on the differential housing, place a new
gasket into position.
PK225A
PK222A
